Floor assembly, wheel housing rear Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1A	800981	Sheet metal plate 200X1500X0,8	999	Next
1A	000800981A	Sheet metal plate 300X1500X0,8	999	Next
1A	000800981B	Sheet metal plate 500X1500X0,8	999	Next
1A	000800981C	Sheet metal plate 800X1500X0,8	999	Next
3	3C0802191	Shock absorber mounting	999	Next
3	3C0802192	Shock absorber mounting	999	Next
5	3C0802684	Retainer for activated charcoal filter or fuel filter	999	Next
7	3C0802957	Reinforcement for safety belt fastening	999	Next
8	3C8802951	Cross member	999	Next
8	3C8802952	Cross member	999	Next
9	3C0803123	Terminal clamp	999	Next
10	3C0803401	Cover plate for slide member	999	Next
10	3AA803401A	Cover plate for slide member	999	Next
11	3C0803402	Cover plate for slide member	999	Next
13	3C0804093	Support	999	Next
13	3C0804094	Support	999	Next
16	N10106901	Hexagon head bolt (combi) M8X32	999	Next
17	3C0804869D	Battery console 95AH	999	Next
17	3C0804869E	Battery console	999	Next
18	N90348411	Hex. nut with washer M8	999	Next
22	3C0809851A	Wheel housing inner part	999	Next
22	3C0809852A	Wheel housing inner part	999	Next
25	3C0813114C	Spare wheel well	999	Next
25	3C0813114E	Spare wheel well	999	Next
-	DA004600A2	2k pane adhesive set 400ML	999	Next
26	3C0813114F	Spare wheel well for vehicles with selective catalytic reduction (scr)	999	Next
27	3C0813115B	Bottom plate	999	Next
28	3C0971908B	Bungs for vehicles with selective catalytic reduction (scr) 70MM	999	Next
28	3C0971908C	Bungs for vehicles with selective catalytic reduction (scr) 70MM	999	Next
28	3C0971908C9B9	Bungs for vehicles with selective catalytic reduction (scr) 70MM satin black	999	Next
29	3C0010690A	Notice for vehicles with selective catalytic reduction (scr)	999	Next
30	3C0813146	Cross member	999	Next
32	3C5813173	Web plate	999	Next
32	3C5813174	Web plate	999	Next
36	D007600A1	Inox spray 400ML	999	Next
37	D007600A1	Inox spray 400ML	999	Next
38	DH009100	1k window adhesive 300ML	999	Next
36	D007500A2	Zinc spray 400ML	999	Next
37	D007600A1	Inox spray 400ML	999	Next

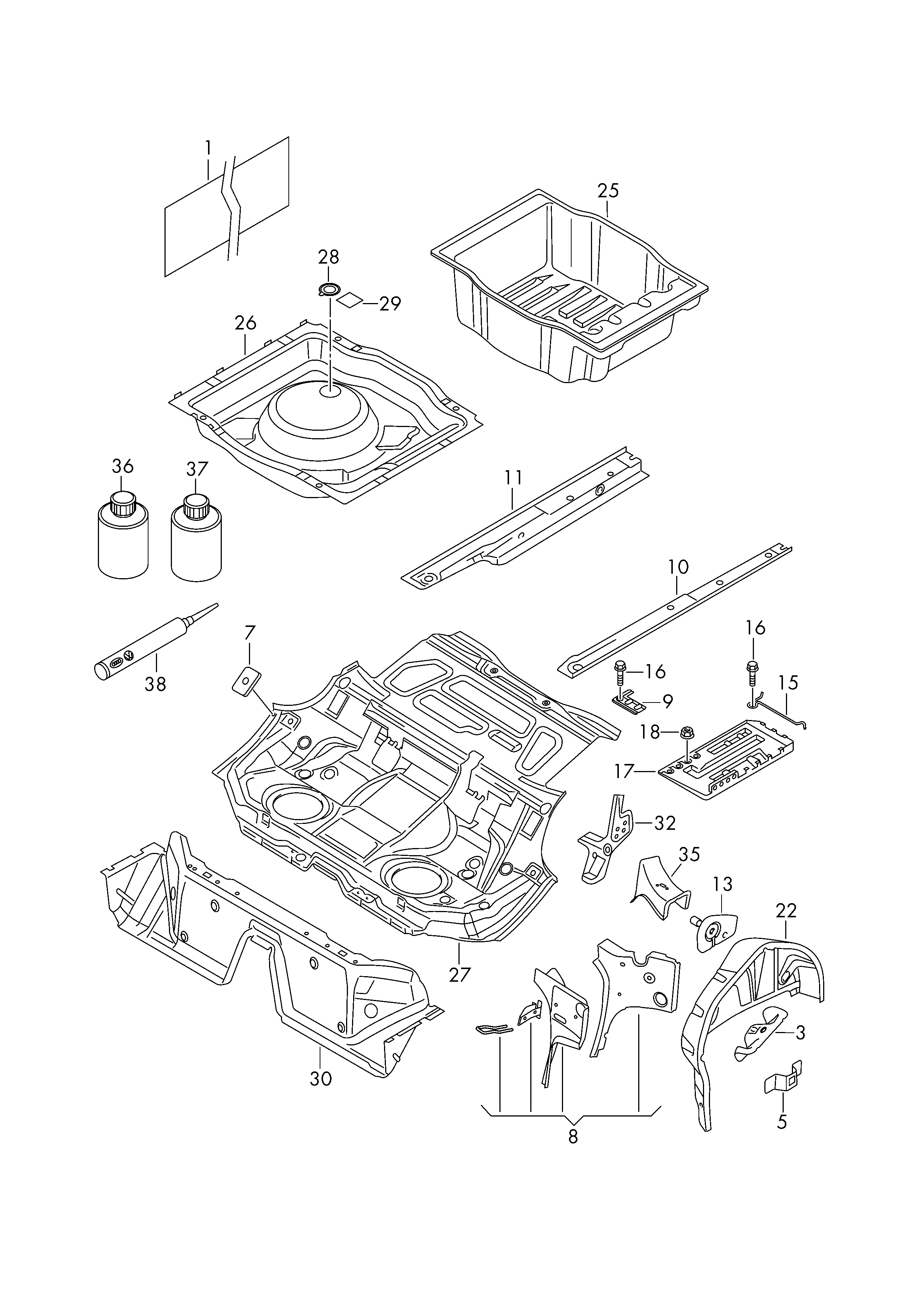

Scheme Floor assembly, wheel housing rear Volkswagen Passat CC Coupe 2009-2012 EUR
