Floor assembly front Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1A	800981	Sheet metal plate 200X1500X0,8	999	Next
1A	000800981A	Sheet metal plate 300X1500X0,8	999	Next
1A	000800981B	Sheet metal plate 500X1500X0,8	999	Next
1A	000800981C	Sheet metal plate 800X1500X0,8	999	Next
1B	D007500A2	Zinc spray 400ML	999	Next
1C	D007600A1	Inox spray 400ML	999	Next
3	3C0801251	Side member	999	Next
3	3C0801252	Side member	999	Next
5	3C0802128	Reinforcement for tunnel	999	Next
8	3C0802381	Support seat	999	Next
8	3C0802382	Support seat	999	Next
9	3C0802569	Support seat	999	Next
9	3C0802570	Support seat	999	Next
12	3C0803097	Connecting piece	999	Next
12	3C0803098	Connecting piece	999	Next
15	3C0803125	Reinforcement for side member	999	Next
15	3C0803126	Reinforcement for side member	999	Next
18	3C0803205	Bottom plate	999	Next
19	3C0803206	Bottom plate	999	Next
22	3C0803233	Seat support	999	Next
22	3C0803234	Seat support	999	Next
25	3C0803485	Cross member	999	Next
28	3C0803729	Side member extension	999	Next
28	3C0803730	Side member extension	999	Next
32	3C0804421	Reinforcement for tunnel	999	Next
35	3C0813087A	Support plate	999	Next
35	3C0813088A	Support plate	999	Next
40	1J0971240B	Weld screw M8X18	999	Next
45	N01950213	Hex collared bolt M8X25	999	Next
47	N90652602	Weld screw 5X16	999	Next
48	N90761102	Hexagon collar nut M8	999	Next
48	N90761101	Hexagon collar nut M8	999	Next

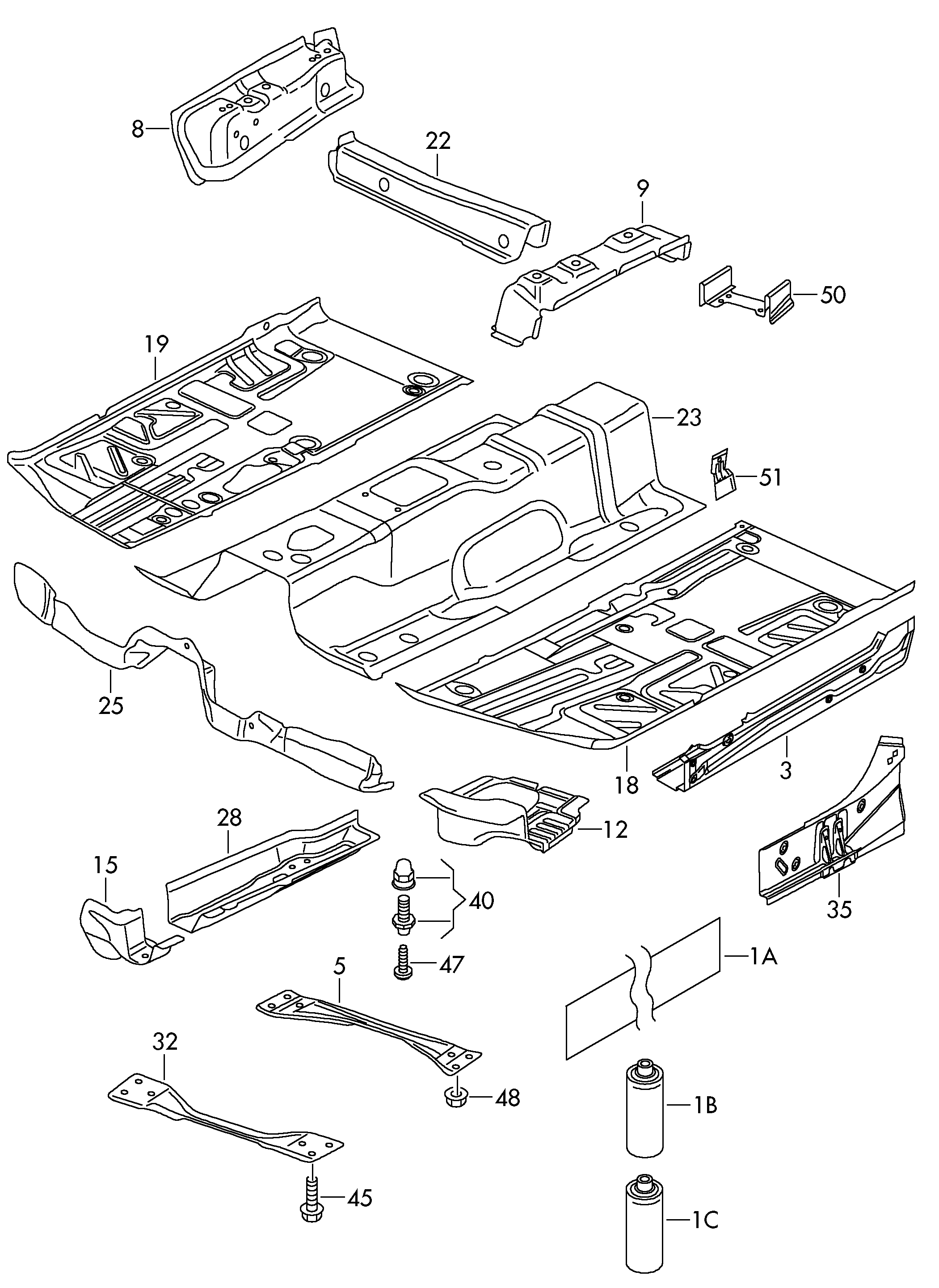

Scheme Floor assembly front Volkswagen Passat CC Coupe 2009-2012 EUR
