Flanged shaft rear 4motion Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	01Z525356	Flanged shaft also use: 12409413	999	Next
1	01Z525355	Flanged shaft also use: 12409413	999	Next
1	02D525596B	Shaft oil seal	999	Next
1	02D525596F	Shaft oil seal	999	Next
1	N 91082701	Socket head bolt with hexagon socket head (combination) oil drain plug M10X30 HALDEX	999	Next
1	N 90281802	Seal bolt (combination) M10X1X10	999	Next
1	N 90281802	Seal bolt (combination) M10X1X10	999	Next
1	12409413	Snap ring	999	Next
1	G 052128A1	Sealing grease for radial shaft oil seal 50G	999	Next

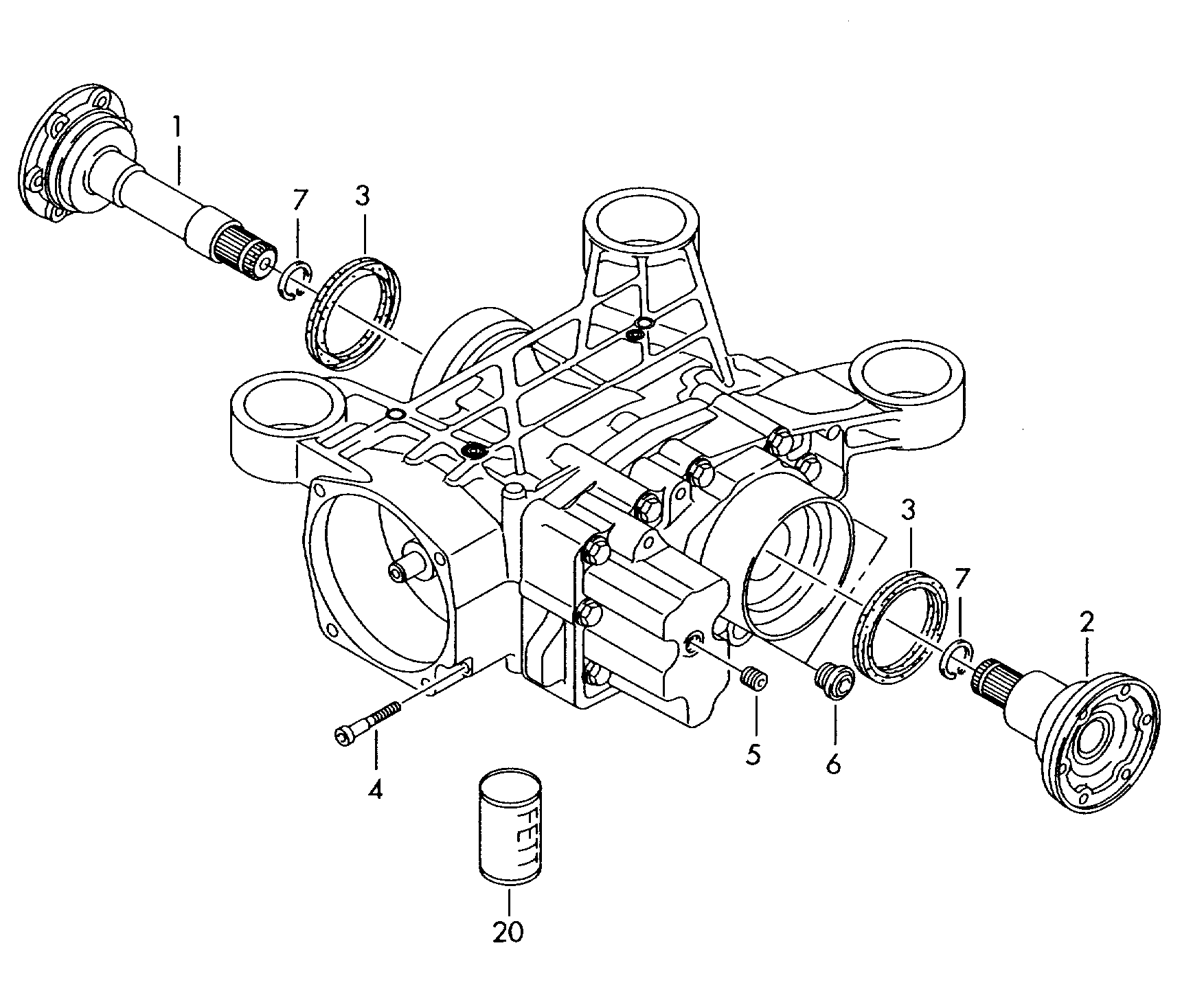

Scheme Flanged shaft rear 4motion Volkswagen Tiguan 2010-2017 EUR
