Flange, reservoir, cooler for coolant 2.0 ltr. diesel eng.+, CFFA, CFFB, CFFD, CLJA, CFGB, CFGC Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03L121132AA	Flange with sealing ring	999	Next
1	038121688B	Seal 54,8X42,8X4,6	999	Next
1	06A919501A	Coolant temperature sender	999	Next
1	N 90316801	O-ring 19,6X3,65	999	Next
1	32121142	Retaining spring	999	Next
1	N 90280904	Hexagon head bolt (combi) M6X22	999	Next
1	N 10414502	Hexagon head bolt (combi) M6X75X37	999	Next
1	1K0121407A	Coolant expansion tank	999	Next
1	3C0121321	End cap	999	Next
1	1H0121687A	O-ring 28,5X3,8	999	Next
1	N 91090701	Semi round bolt (combi) with hexagon socket head 5X20	999	Next
1	811807577C	Insert nut	999	Next
1	G 013A8JM1	Coolant concentrate	999	Next
1	G 012A8GM8	Coolant additive, plus-plus	999	Next
1	G 013A8JM8	Coolant concentrate	999	Next
1	G 013A8JM9	Coolant concentrate	999	Next
1	G 013774M2	Ready-mix coolant	999	Next
1	5N0121253L	Cooler for coolant 648X450MM	999	Next
1	5N0121253P	Cooler for coolant 648X450MM	999	Next
1	5N0121253N	Cooler for coolant 648X450MM	999	Next
1	5N0121345N	Seal	999	Next
1	5N0121345J	Seal	999	Next
1	1K0121367P	Bracket	999	Next
1	1K0121367G	Bracket	999	Next
1	N 90808201	Hexagon socket head panel bolt 6X18,5	999	Next
1	1K0121367F	Bush	999	Next

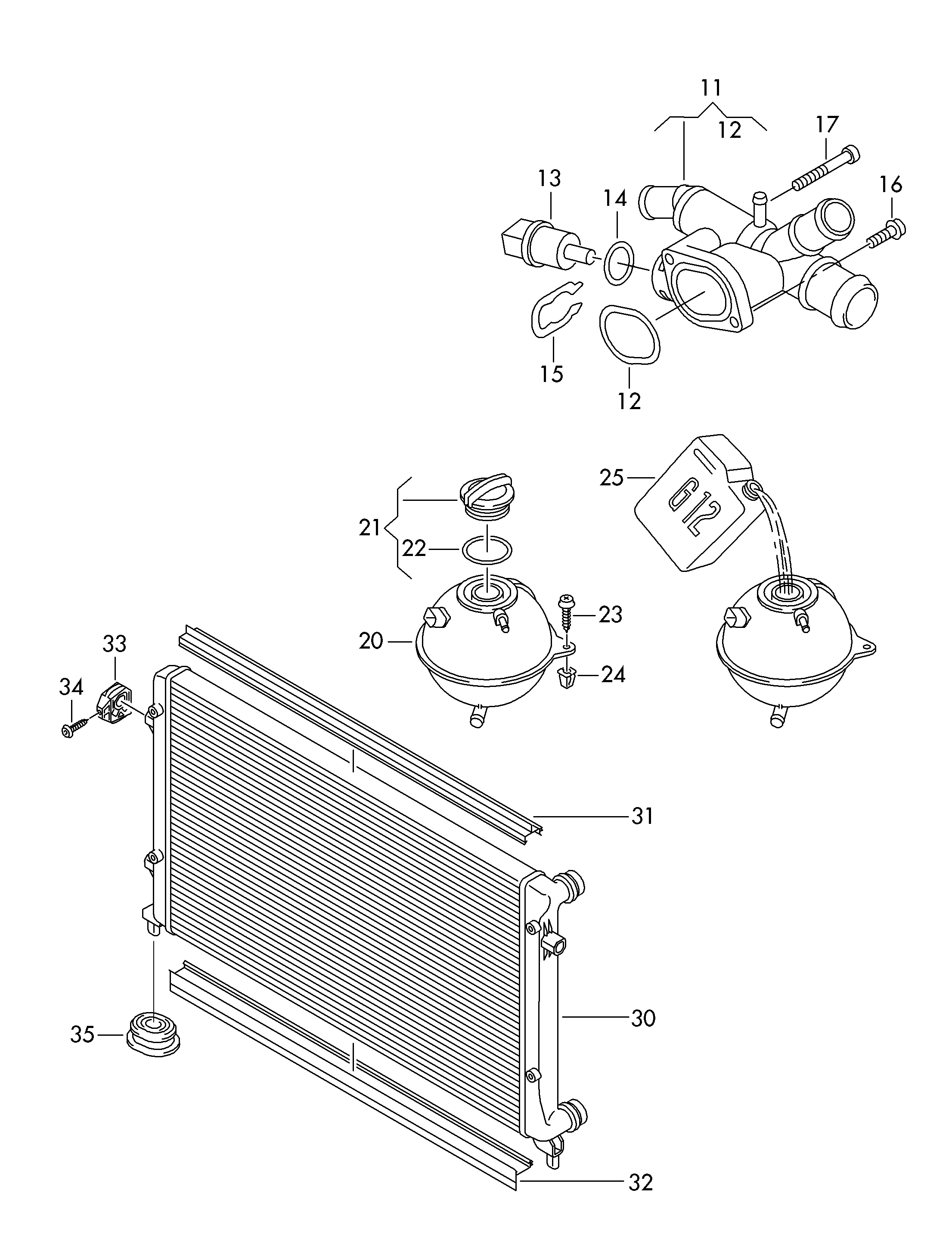

Scheme Flange, reservoir, cooler for coolant 2.0 ltr. diesel eng.+, CFFA, CFFB, CFFD, CLJA, CFGB, CFGC Volkswagen Tiguan 2010-2017 EUR
