Flange, reservoir, cooler for coolant 1.6ltr. diesel eng.+, CAYB, CAYC Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
11	03L121132AA	Flange with sealing ring	999	Next
12	038121688B	Seal 54,8X42,8X4,6	999	Next
13	06A919501A	Coolant temperature sender	999	Next
14	N90316801	O-ring 19,6X3,65	999	Next
15	32121142	Retaining spring	999	Next
16	N90280904	Hexagon head bolt (combi) M6X22	999	Next
17	N90280904	Hexagon head bolt (combi) M6X22	999	Next
20	1K0121407A	Coolant expansion tank	999	Next
21	3B0121321	End cap	999	Next
22	1H0121687A	O-ring 28,5X3,8	999	Next
23	N91090701	Semi round bolt (combi) with hexagon socket head 5X20	999	Next
24	811807577C	Insert nut	999	Next
25	G012A8GM1	Coolant additive, plus-plus	999	Next
25	G013A8JM1	Coolant concentrate	999	Next
25	G013A8JM8	Coolant concentrate	999	Next
25	G013A8JM9	Coolant concentrate	999	Next
25	G013774M2	Ready-mix coolant	999	Next
30	1K0121251DM	Cooler for coolant 648X454MM	999	Next
31	1K0121345AL	Seal	999	Next
31	1K0121345E	Seal for charge air cooler shorten if necessary	999	Next
32	1K0121345D	Seal for charge air cooler shorten if necessary	999	Next
33	1K0121367P	Bracket	999	Next
33	1K0121367G	Bracket	999	Next
34	N90808201	Hexagon socket head panel bolt 6X18,5	999	Next
35	1K0121367F	Bush	999	Next

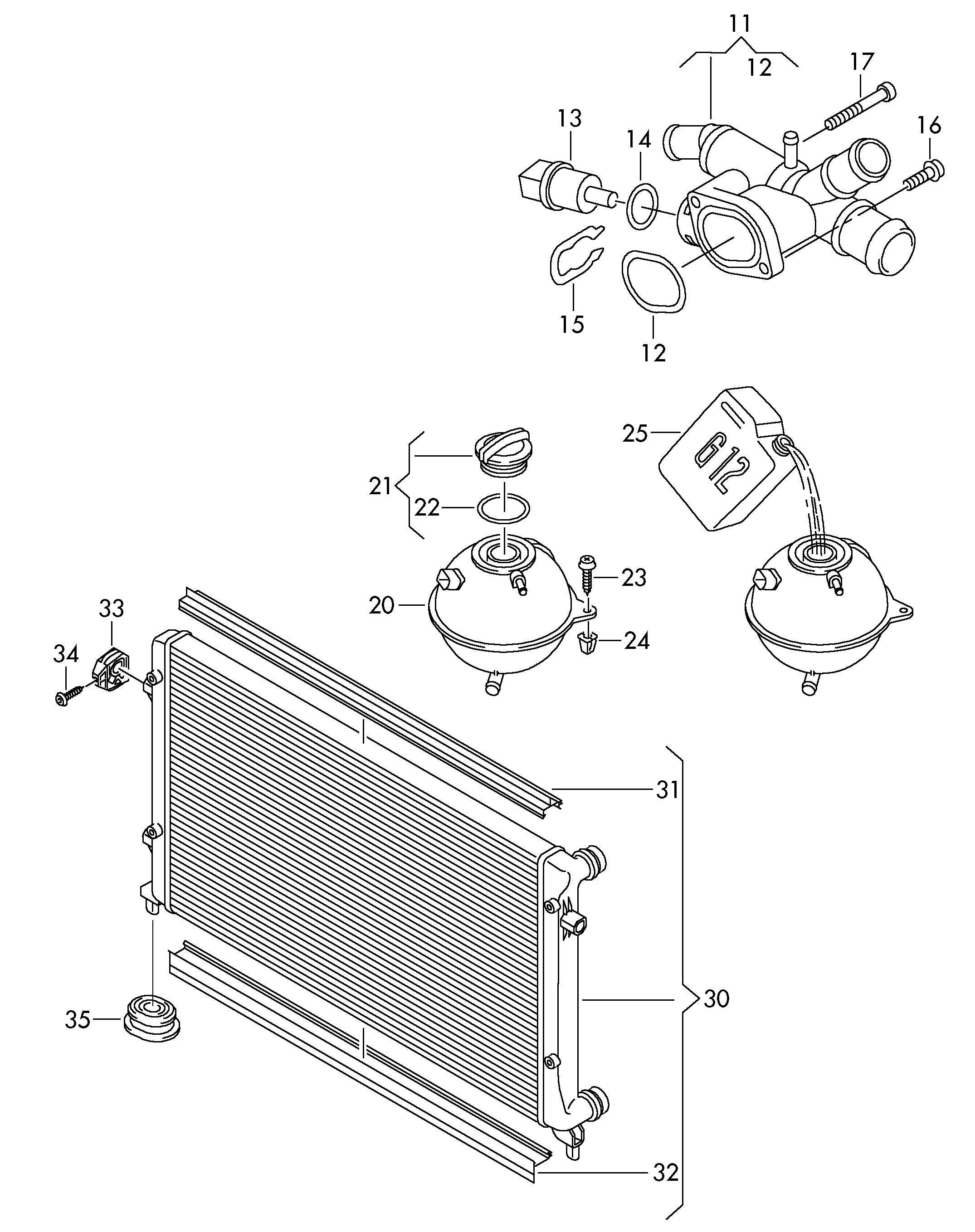

Scheme Flange, reservoir, cooler for coolant 1.6ltr. diesel eng.+, CAYB, CAYC Volkswagen Golf Plus 2012-2014 EUR
