Final drive gearbox, for 7-speed dual clutch, gearbox MYB, MYG, NEZ, NYD, NYE, NZS, NZT, QYQ, RBU, RBV Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0A6409053AD	Final drive gearbox	999	Next
1	0A6409053AF	Final drive gearbox	999	Next
1	0A6409053AH	Final drive gearbox	999	Next
1	0A6409053AJ	Final drive gearbox	999	Next
1	G 052145S2	Axle oil	999	Next
1	N 01191410	End cap 24	999	Next
1	14301485	Cap for venting the gearbox	999	Next
1	02M409120	Protective cap	999	Next
1	N 10404402	Hex collared bolt M10X40	999	Next
1	0A6409189F	Shaft oil seal 31X48X8	999	Next
1	0A6409399B	Shaft oil seal 40X83X8	999	Next
1	02D525596G	Shaft oil seal 48X68X8	999	Next
1	0A6409273B	Flange	999	Next
1	N 90443801	Hexagon nut M24X1,5	999	Next
1	N 90281802	Seal bolt (combination) M10X1X10	999	Next
1	0A6409351N	Flanged shaft	999	Next
1	7E0407297	Securing ring 31,2X1,8	999	Next
1	WHT001315	O-ring 28X2,5	999	Next
1	012409139A	Needle bush 31,3X38X15	999	Next
1	012409139A	Needle bush 31,3X38X15	999	Next
1	12409419	Snap ring	999	Next
1	N 91002702	Double collared stud M10X45/M8X16	999	Next
1	WHT001245	O-ring 112X2,5	999	Next
1		Pinion carrier no replacement part	999	Next
1	N 10128110	Hexagon bolt M8X30	999	Next
1	0A6409529D	Shaft oil seal 65X88X8	999	Next
1	7E0407297	Securing ring 31,2X1,8	999	Next

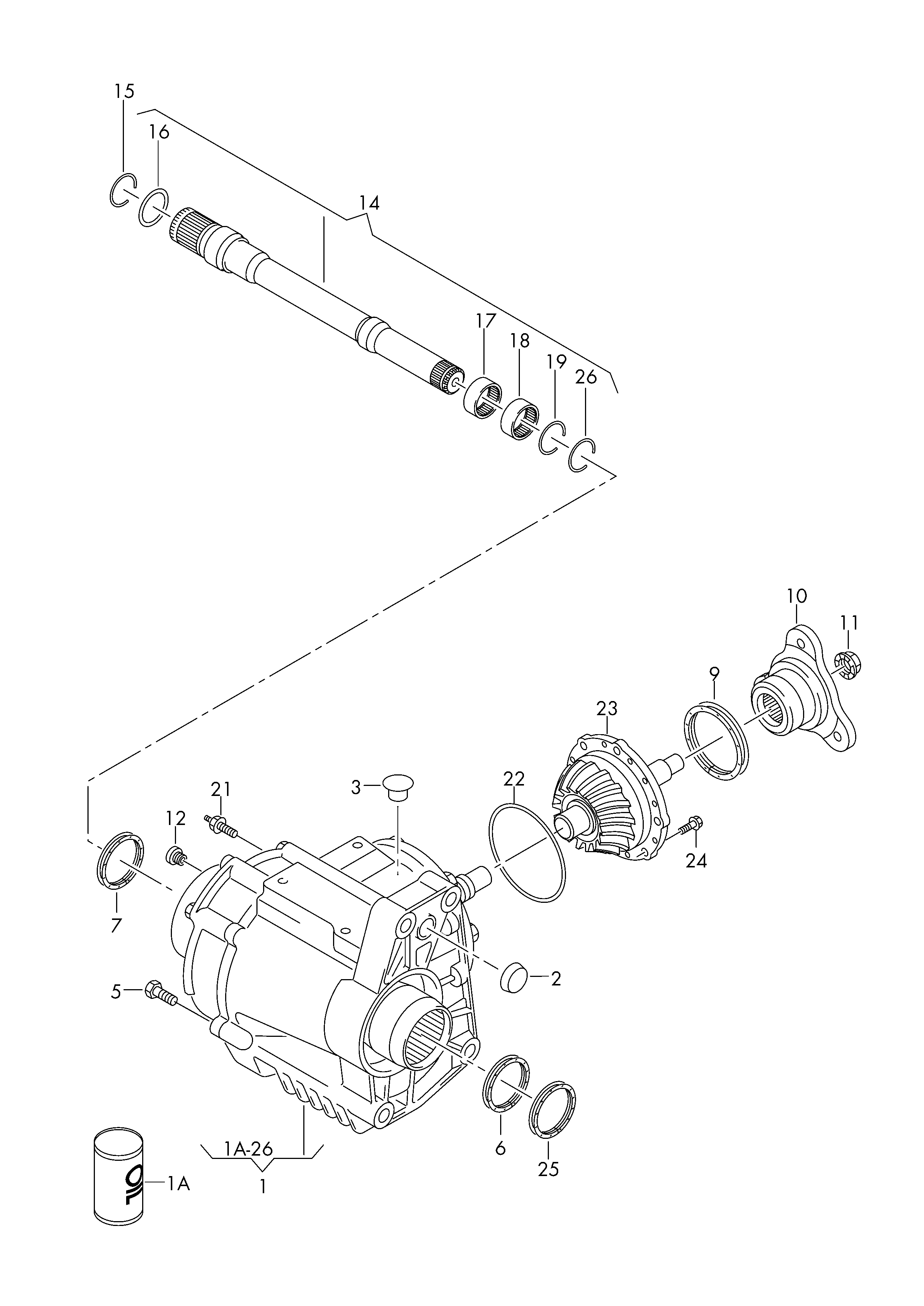

Scheme Final drive gearbox, for 7-speed dual clutch, gearbox MYB, MYG, NEZ, NYD, NYE, NZS, NZT, QYQ, RBU, RBV Volkswagen Tiguan 2010-2017 EUR
