Final drive gearbox, flanged shaf, 6-speed dual clutch gearbox for four-wheel drive KSA, LHR, LHT, LRJ, LTX, MKM, MMH, MTW, MTZ, NHZ, NJD Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0AV409053AA	Final drive gearbox	999	Next
1	0AV409053AG	Final drive gearbox	999	Next
1	0AV409053T	Final drive gearbox	999	Next
1	0AV409053AF	Final drive gearbox	999	Next
1A	G052145S2	Axle oil	999	Next
2	N01191410	End cap 24	999	Next
3	09A409529B	Shaft oil seal 54X68X8	999	Next
4	02H409275A	Sleeve 12X30	999	Next
5	02M409120	Protective cap	999	Next
5B		Breather assy. not for this model	999	Next
6	02D525596B	Shaft oil seal 67X83X8	999	Next
7	N90999001	O-ring 100X2,5	999	Next
7A		Adjusting washer no replacement part	999	Next
8	02M409407	Cover cap	999	Next
9	02D525596B	Shaft oil seal 67X83X8	999	Next
10	02M409273D	Flange D=48	999	Next
10A	0AV498114	1 set shims 1,32,5	999	Next
11	N90443801	Hexagon nut M24X1,5	999	Next
12	N90281802	Seal bolt (combination) M10X1X10	999	Next
13	N90281802	Seal bolt (combination) M10X1X10	999	Next
14	02M409351M	Flanged shaft	999	Next
15	02E409359	Socket head bolt with hexagon socket head M8X45,9	999	Next
16	012409139A	Needle bush 31,3X38X15	999	Next
17	12409419	Snap ring	999	Next
18	02M409464	O-ring 31X47X5,5	999	Next
19	N91002702	Double collared stud M10X45/M8X16	999	Next
20	N0154027	Washer 10,5X25X4	999	Next
21	N10128110	Hexagon bolt M8X30	999	Next
22		Cover plate not for this model	999	Next
23, 24		Round hd. screw not for this model	999	Next

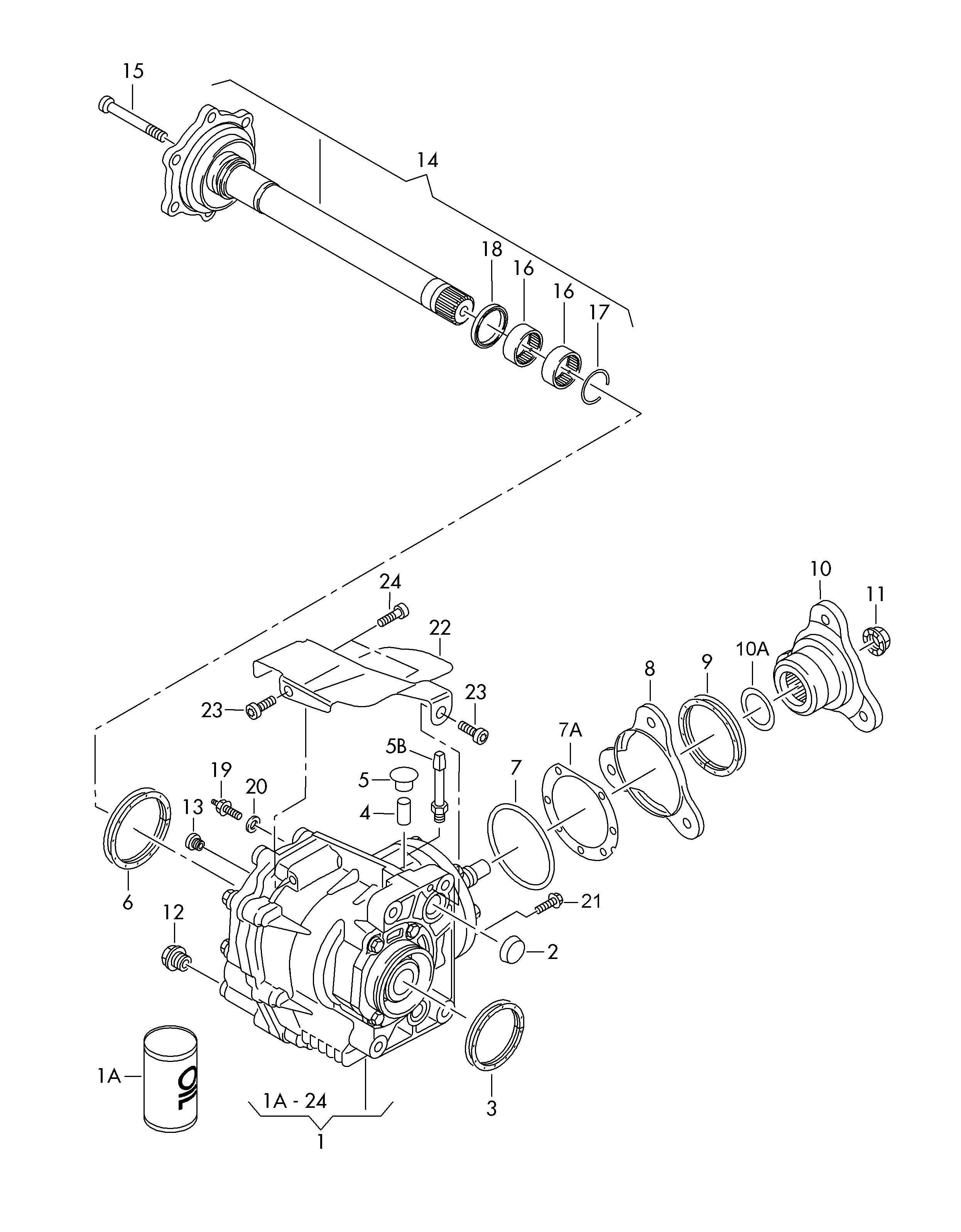

Scheme Final drive gearbox, flanged shaf, 6-speed dual clutch gearbox for four-wheel drive KSA, LHR, LHT, LRJ, LTX, MKM, MMH, MTW, MTZ, NHZ, NJD Volkswagen Passat CC Coupe 2009-2012 EUR
