Final drive gearbox, 6-speed manual transmission, for four-wheel drive front LMU, LMV, LMX, MXB, NGF, NGH Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0A6409053AC	Final drive gearbox	999	Next
1	0A6409053AE	Final drive gearbox	999	Next
1	0A6409053AL	Final drive gearbox	999	Next
1	0A6409053AG	Final drive gearbox	999	Next
1	G 052145S2	Axle oil	999	Next
1	N 10404402	Hex collared bolt M10X40	999	Next
1	0A6409596	Shaft oil seal 40X83X8	999	Next
1	N 90281802	Seal bolt (combination) M10X1X10	999	Next
1	N 91002702	Double collared stud M10X45/M8X16	999	Next
1	14301485	Cap for venting the gearbox	999	Next
1	N 01191410	End cap 24	999	Next
1	0A6409189C	Shaft oil seal 31X48X8	999	Next
1	0A6409529	Shaft oil seal 65X88X8	999	Next
1	WHT001245	O-ring 112X2,5	999	Next
1		Cover no replacement part	999	Next
1	N 10128110	Hexagon bolt M8X30	999	Next
1	02D525596C	Shaft oil seal 48X68X8	999	Next
1	0A6409273B	Flange	999	Next
1	N 90443801	Hexagon nut M24X1,5	999	Next
1	0A6409351L	Flanged shaft	999	Next
1	0A6409351Q	Flanged shaft	999	Next
1	0A5409413D	Snap ring	999	Next
1	WHT001315	O-ring 28X2,5	999	Next
1	012409139A	Needle bush 31,3X38X15	999	Next
1	012409139A	Needle bush 31,3X38X15	999	Next
1	12409419	Snap ring	999	Next

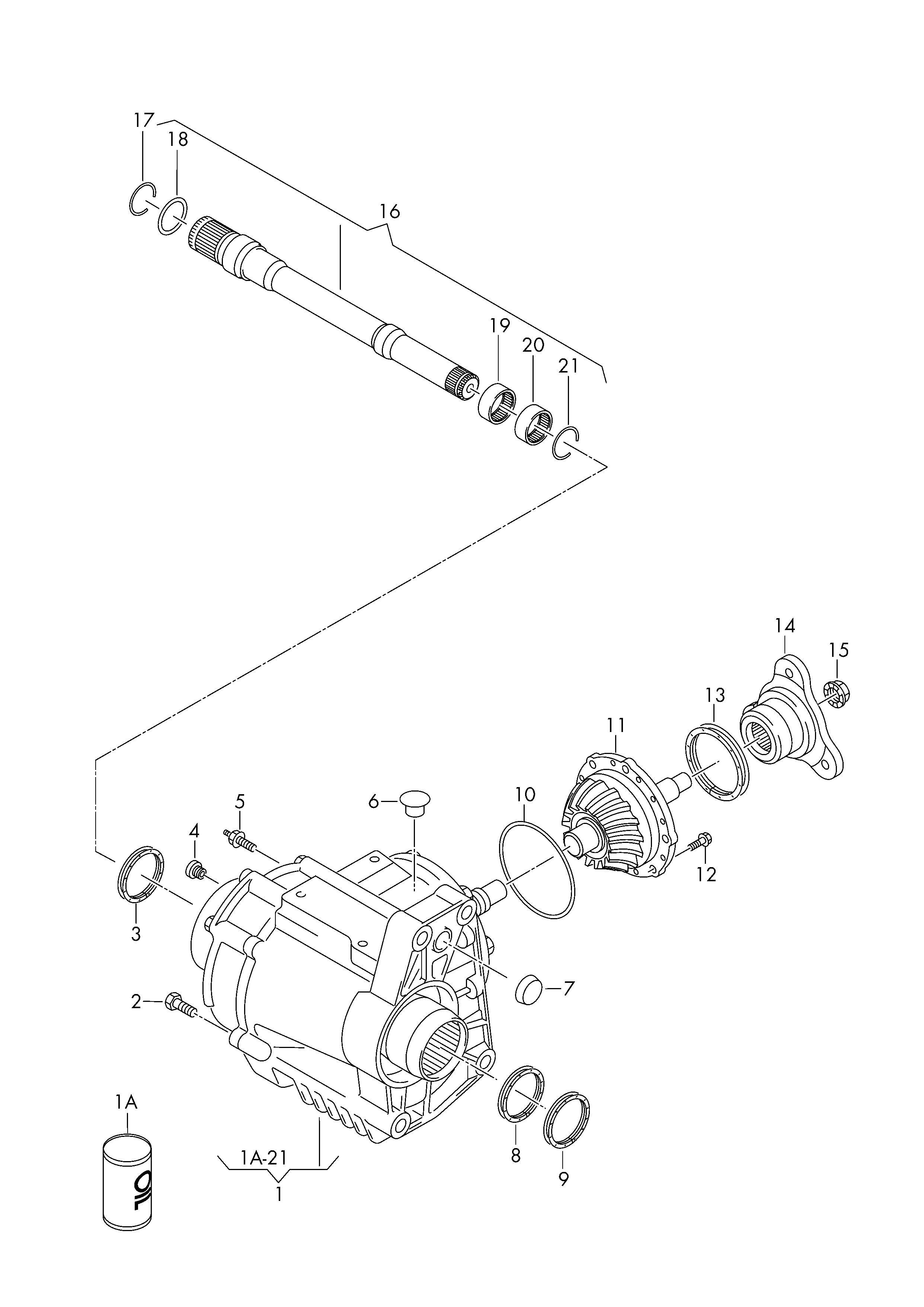

Scheme Final drive gearbox, 6-speed manual transmission, for four-wheel drive front LMU, LMV, LMX, MXB, NGF, NGH Volkswagen Tiguan 2010-2017 EUR
