Final drive, complete rear 4motion Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0BS525010A	Final drive, before 13.07.2009	999	Next
1	0BS525010B	Final drive	999	Next
1A	G052145S2	Axle oil for rear axle differential filling quantity: optional: see workshop manual 950ML .	999	Next
1A	G052145A1	Axle oil for final drive	999	Next
1A	G060175A2	High-performance oil for four-wheel coupling filling quantity: 720ML	999	Next
2	0BS525554	Allradkupplung	999	Next
3	N90443301	O-ring 130X3	999	Next
4	N91030602	Hexagon bolt M10X70	999	Next
5	3C0599438D	Bonded rubber bush	999	Next
6	3C0599437D	Bonded rubber bush	999	Next
6A	3C0599437D	Bonded rubber bush	999	Next
7	3C0599438D	Bonded rubber bush	999	Next
8	02W525118	Elbow fitting	999	Next
11	02D525095H	Vent hose with: 210MM POS.12	999	Next
12	0AU525809A	Grommet	999	Next

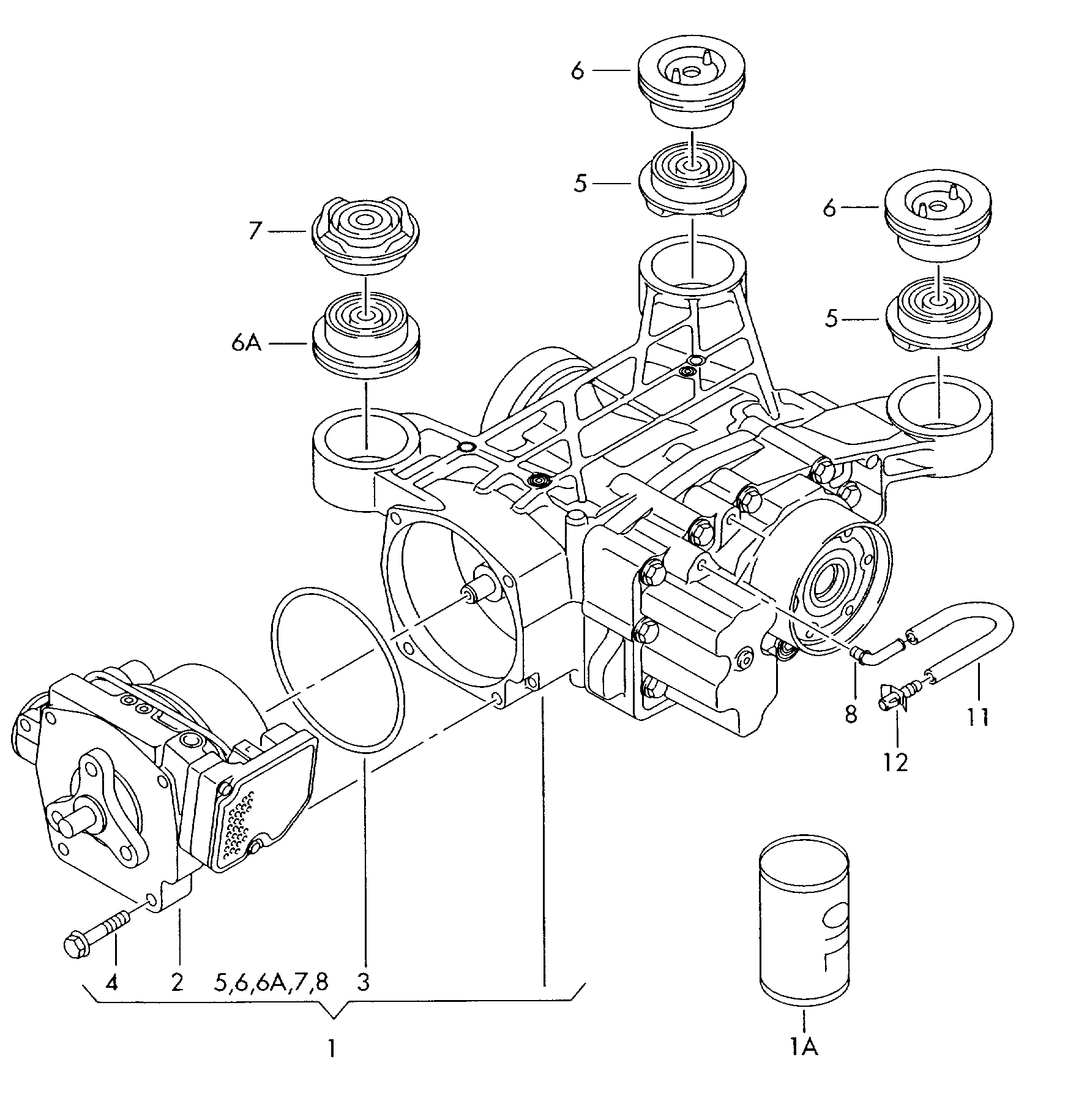

Scheme Final drive, complete rear 4motion Volkswagen Passat CC Coupe 2009-2012 EUR
