Fan Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K1819015C	Fan	999	Next
1	1K1819015E	Fan	999	Next
1	1K2819015C	Fan	999	Next
2	1K0907511C	Positioning motor for recirculated air operation	999	Next
3	1K1819007	Housing	999	Next
3	1K2819007	Housing	999	Next
8	1K1819353	Air distribution housing	999	Next
8	1K2819353	Air distribution housing	999	Next
10	1K1819304	Intake duct	999	Next
10	1K2819304	Intake duct	999	Next
11	1K0959263A	Series resistor	999	Next
12	1K0819644B	Dust and pollen filter insert	999	Next
12	1K1819653B	Filter insert with odour and harmful substance filtering	999	Next
12	JZW819653B	Filter insert with odour and harmful substance filter 'eco' economy	999	Next
12	1K2819653B	Filter insert with odour and harmful substance filtering	999	Next
12	JZW819653B	Filter insert with odour and harmful substance filter 'eco' economy	999	Next
13	1K0819422B	Cover dust and pollen filter	999	Next
16	1K0819031E	Heat exchanger	999	Next
16	1K0819031D	Heat exchanger	999	Next
17	1K0963235G	Heater element for electr. auxiliary air heater	999	Next
19	5M1819593B	Cover	999	Next
19	5M2819593B	Cover	999	Next
20	8E0898380	Gasket set	999	Next
21	1K1819857C	Coolant pipe also use: 8E0 898 380	999	Next
21	1K2819857C	Coolant pipe also use: 8E0 898 380	999	Next
22	WHT000155	Wing screw 4,8	999	Next
23	1K0819215	Grille	999	Next
24	1K1898001	1 set: levers for air distribution housing	999	Next
24	1K2898001	1 set: levers for air distribution housing	999	Next
24	1K0898002	1 set of levers air distribution housing	999	Next
24	1K0898002A	1 set of levers air distribution housing	999	Next
26	N10424102	Hexagon head panel screw 4X16-H	999	Next
30	1K0819037	Seal	999	Next
31	1K0819345B	Grommet	999	Next
43	1K1819349F	Cover	999	Next
43	1K2819349F	Cover	999	Next
43	1K1819349E	Cover	999	Next
43	1K2819349G	Cover	999	Next
46	1K1819453	Bracket	999	Next
47	1K1819473H	Bracket heater unit	999	Next
47	1K2819473C	Bracket heater unit	999	Next
48	N90532901	Hexagon head bolt (combi) M6X16	999	Next

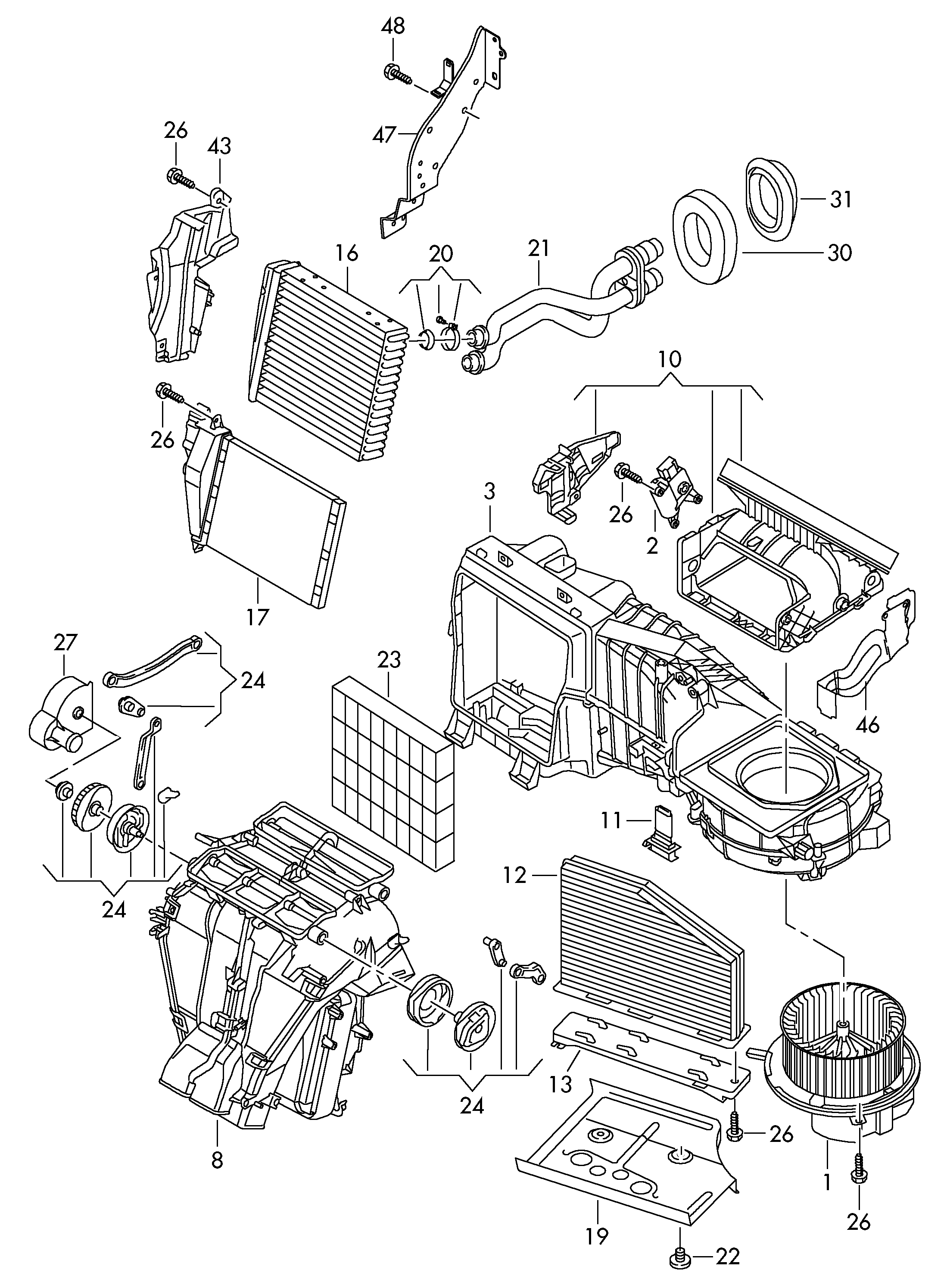

Scheme Fan Volkswagen Golf Plus 2012-2014 EUR
