Fan ring, twin fan ring diesel eng.+, CUVE, CUVC, CUWA Volkswagen Tiguan 2010-2017 EUR
Category content
- Spare parts table
- An illustrated scheme of this category is below the list of spare parts
| № | Part number | Part name | Go to the spare parts page |
|---|---|---|---|
| 1 | 1K0121205AD | Twin fan ring | Next |
| 1 | 1K0121205AD9B9 | Twin fan ring satin black | Next |
| 1 | 1K0121223 | Air control flap | Next |
| 1 | See plate from: to: 959-050 959-060 | Next | |
| 1 | N 90887703 | Hexagon flange nut, self-locking M6 | Next |
| 1 | N 90817003 | Hexagon socket head panel bolt 6X17 | Next |
| 1 | No replacement part | Next | |
| 1 | N 91100701 | Clip 15X14,2X9 | Next |
| 1 | 1J0971830H | Bracket for connector housing radiator fan | Next |

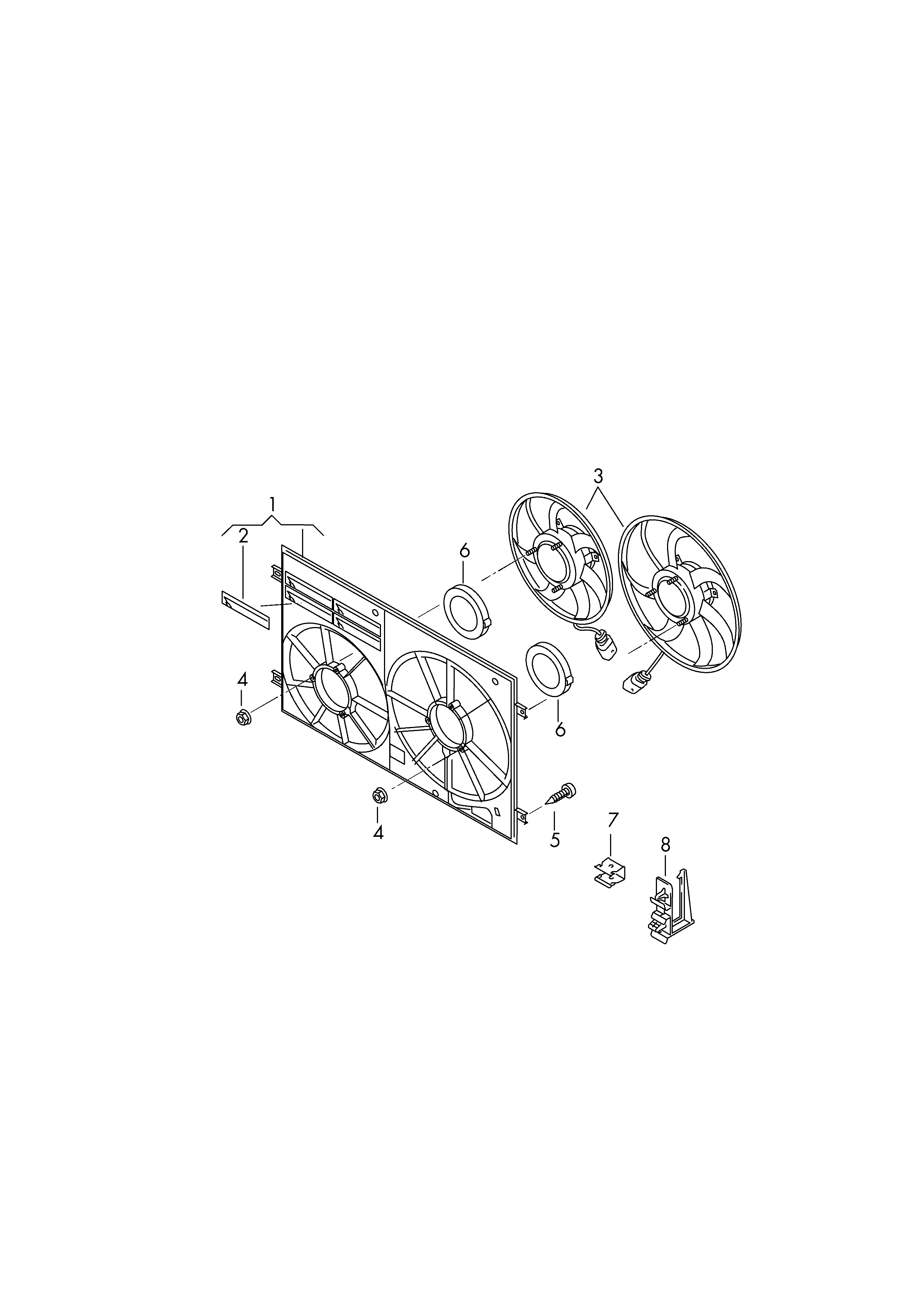

Scheme Fan ring, twin fan ring diesel eng.+, CUVE, CUVC, CUWA Volkswagen Tiguan 2010-2017 EUR
