Fan ring, air guide 1.6 ltr. petrol eng.+, BSE, BSF, CHGA, CMXA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0121207BB	Twin fan ring for vehicles with no air conditioning system	999	Next
1	1K0121207BB	Twin fan ring for models with air condition- ing system (used in warm climates)	999	Next
1A	1K0121205AG	Fan ring for vehicle use in cold and moderate climates and for vehicles with air condit.	999	Next
1A	1K0121205AG	Fan ring for vehicle use in cold and moderate climates and for vehicles with air condit.	999	Next
2	1K0121223	Air control flap only for: 1K0 121 205 AA	999	Next
3		Radiator fan	999	Next
4	N90887703	Hexagon flange nut, self-locking M6	999	Next
5	N90817003	Hexagon socket head panel bolt 6X17	999	Next
6	1K0121165	Cut-off ring for vehicles with no air conditioning system	999	Next
7	N91100701	Clip 15X14,2X9	999	Next
8	1J0971830H	Bracket for connector housing radiator fan	999	Next
9		Seal	999	Next
10		Seal	999	Next
11		Cooler for coolant	999	Next
12	WHT002435	Flat head bolt with hexagon socket head, thread forming only for: M5X20 1K0 121 205 AA	999	Next
15	5M0121283A	Air guide	999	Next
15	5M0121283B	Air guide	999	Next
16	5M0121284A	Air guide	999	Next
16	5M0121284B	Air guide	999	Next

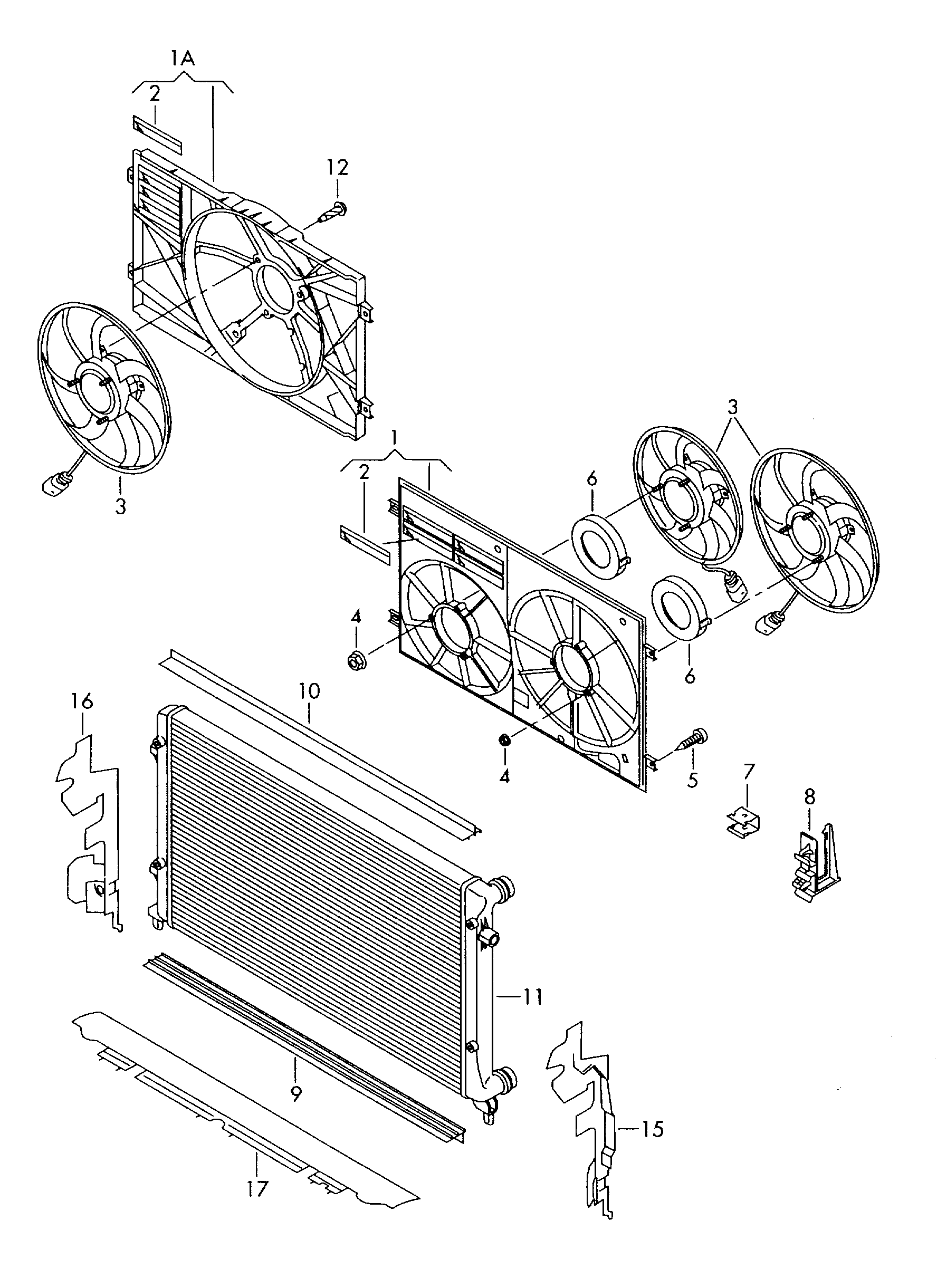

Scheme Fan ring, air guide 1.6 ltr. petrol eng.+, BSE, BSF, CHGA, CMXA Volkswagen Golf Plus 2012-2014 EUR
