Exhaust pipe with catalyst and particulate filter, control line for pressure, difference sensor, for vehicles with selective, catalytic reduction (scr) 2.0 ltr. diesel eng.+, CBAC, CFFB Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0253053BX	Exhaust pipe with catalyst and particulate filter	999	Next
1	3C0253053CX	Exhaust pipe with catalyst and particulate filter	999	Next
1	7N0253053BX	Exhaust pipe with catalyst and particulate filter	999	Next
1	7N0253053CX	Exhaust pipe with catalyst and particulate filter	999	Next
2	1K0253115T	Seal	999	Next
3	1K0253725	Clamp	999	Next
4	3AA254400AX	Catalytic converter	999	Next
4	3C0254400HX	Catalytic converter	999	Next
5	1K0253144BC	Bracket	999	Next
6	N10240003	Hex collared bolt M8X32	999	Next
7	8D0253115C	Seal	999	Next
8	N91130801	Hexagon collar nut self-locking M8	999	Next
9	1K0253463AF	Retainer for exhaust system	999	Next
10	N01508315	Hexagon collar nut M8	999	Next
11	N90786502	Hexagon head bolt (combi) M8X20	999	Next
12	5N0253463	Retainer for exhaust system	999	Next
13	N10653102	Hexagon bolt M8X20	999	Next
14	WHT003354	Union nut M8	999	Next
15	5N0131783	Shield for catalyst	999	Next
15	5N0131783A	Shield for catalyst	999	Next
16	N02300215	Hexagon nut, self-locking M6	999	Next
17	1K0131552N	Control line with pressure difference sender contains: 1K0 131 213 N 102 849 02	999	Next
-	1K0131213	Clip	999	Next
-	N10284902	Socket head bolt with hexagon socket head M6X8	999	Next
17	3C0131552Q	Control line with pressure difference sender	999	Next
17	3C0131552R	Control line with pressure difference sender	999	Next
18	3C0131483	Spring band clamp 11,5X8,4	999	Next
19	3C0131483A	Spring band clamp 13,5X12	999	Next
20		Pressure difference sender	999	Next
21	N91096901	Round hd. screw M6X22	999	Next
22	N90737105	Oval hexagon socket head bolt M6X12	999	Next
23	4B0422379	Spring band clamp 16X12	999	Next
24	N0144833	Threaded pin M10XM8X38	999	Next
25		Temperature sensor	999	Next
26	3C0131113A	Injector for reduction agent	999	Next
26	3C0131113	Injector for reduction agent	999	Next
26	3C0131113C	Injector for reduction agent	999	Next
26	3C0131113D	Injector for reduction agent	999	Next
27	3C0253115A	Seal	999	Next
28	3C0253725	Clamp	999	Next
29	WHT002664	Threaded pin M12X1,5XM8X32	999	Next

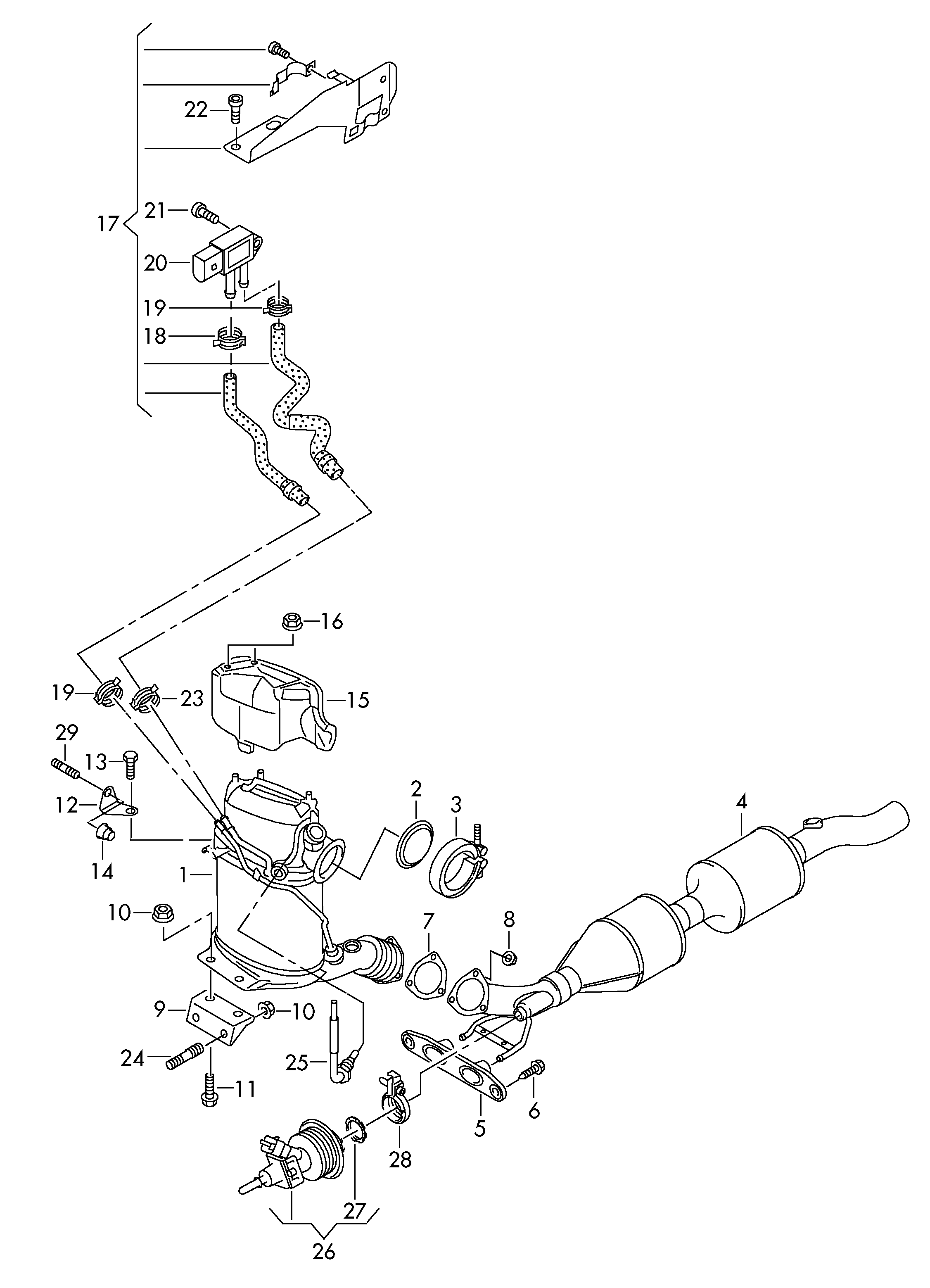

Scheme Exhaust pipe with catalyst and particulate filter, control line for pressure, difference sensor, for vehicles with selective, catalytic reduction (scr) 2.0 ltr. diesel eng.+, CBAC, CFFB Volkswagen Passat CC Coupe 2009-2012 EUR
