Exhaust pipe with catalyst, and particulate filter, control line for pressure, difference sensor 2.0 ltr., common rail diesel eng.+, CFHB, CFHC Volkswagen Golf Plus 2012-2014 EUR

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0254707KX	Exhaust pipe with catalyst and particulate filter	999	Next
1	JZW254700EX	Exhaust pipe w/ cat. converter particle filter 'eco' economy	999	Next
1	1K0254706MX	Exhaust pipe with catalyst and particulate filter	999	Next
2	1K0253725	Clamp	999	Next
3	1K0253115T	Seal	999	Next
4	1K0253144BC	Bracket	999	Next
5	N10240003	Hex collared bolt M8X32	999	Next
6	1K0253463AF	Retainer for exhaust system	999	Next
7	N90786502	Hexagon head bolt (combi) M8X20	999	Next
8	N01508315	Hexagon collar nut M8	999	Next
9	N0144833	Threaded pin M10XM8X38	999	Next
10	1K0131582A	Screw catch	999	Next
11	5N0253463	Retainer for exhaust system	999	Next
12	WHT003354	Union nut M8	999	Next
13	N10653102	Hexagon bolt M8X20	999	Next
14	1K0131552AC	Control line with pressure difference sender	999	Next
14	1K0131552AD	Control line with pressure difference sender	999	Next
15		Pressure difference sender	999	Next
16	N10451404	Hexagon socket flat head bolt M6X16	999	Next
17	3C0131483	Spring band clamp 11,5X8,4	999	Next
18	3C0131483A	Spring band clamp 13,5X12	999	Next
19	N90737105	Oval hexagon socket head bolt M6X12	999	Next
20	4B0422379	Spring band clamp 16X12	999	Next
21	5N0131783	Shield for catalyst	999	Next
21	5N0131783A	Shield for catalyst	999	Next
22	N02300215	Hexagon nut, self-locking M6	999	Next
23		Temperature sensor	999	Next
24	1K0131649A	Retainer for exhaust pipe	999	Next
25	N02300215	Hexagon nut, self-locking	999	Next
26	WHT002664	Threaded pin M12X1,5XM8X32	999	Next
27	1K0131213	Clip	999	Next
28	N10284902	Socket head bolt with hexagon socket head M6X8	999	Next

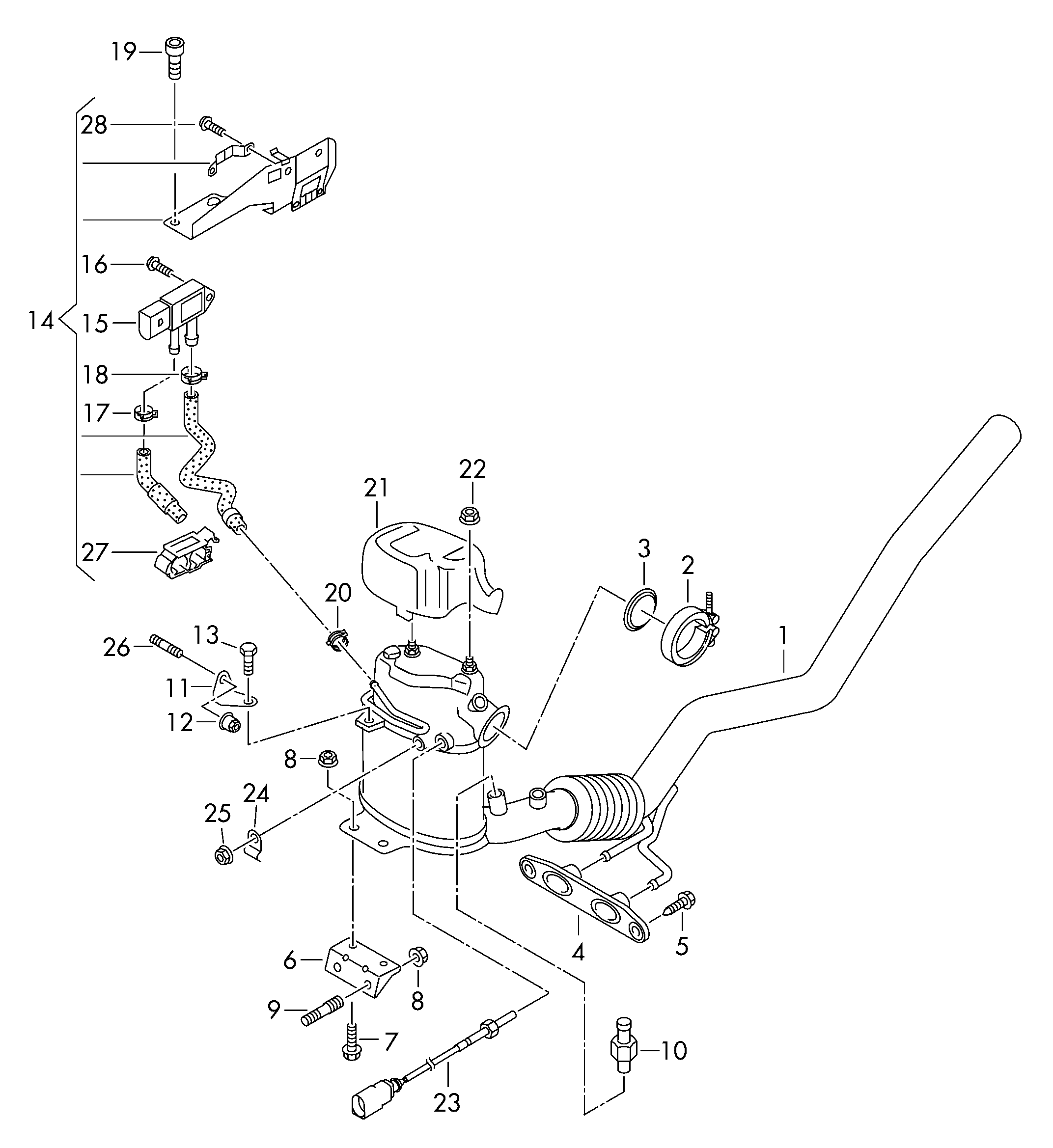

Scheme Exhaust pipe with catalyst, and particulate filter, control line for pressure, difference sensor 2.0 ltr., common rail diesel eng.+, CFHB, CFHC Volkswagen Golf Plus 2012-2014 EUR
