Exhaust manifold with turbocharger 2.0 ltr. petrol eng.+, CCZB, CCZD, CCZC Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06J145702K	Exhaust manifold with turbocharger IHI	999	Next
1	06J145713K	Exhaust manifold with turbocharger also use: 06J 145 220 A	999	Next
1	06J145702KX	Exhaust manifold with turbocharger IHI	999	Next
1	06J145713KX	Exhaust manifold with turbocharger also use: 06J 145 220 A	999	Next
1	06J145220A	Spring clip note technical product information: 2021062	999	Next
1	06H145710C	Cut-off valve	999	Next
1	06F145710G	Cut-off valve	999	Next
1	N 10546404	Oval socket head bolt with hex drive M6X16	999	Next
1	06F906283F	Solenoid valve	999	Next
1	N 10459201	Hexagon socket head bolt M5X12	999	Next
1	06J145718D	Hose	999	Next
1	06J145718E	Hose	999	Next
1	06J145718F	Hose	999	Next
1	3C0131483	Spring band clamp 11,5X8,4	999	Next
1	1K0145769B	Retaining clip connection piece SCC48	999	Next
1	WHT006482	O-ring damper 74,8X1,65	999	Next
1	06F253039F	Seal	999	Next
1	06F253709A	Angled bracket	999	Next
1	N 90894601	Hexagon nut, self-locking M8	999	Next
1	06J145536M	Support	999	Next
1	06J145536D	Support	999	Next
1	N 91103701	Socket head bolt with hexagon socket head M8X35	999	Next
1	N 91117901	Socket head collared bolt with inner multipoint head M8X16	999	Next
1	G 052112A3	Hot-bolt-paste to be used for item: 170G 18	999	Next
1	N 0445203	Threaded pin M10X28	999	Next
1	1K0253115AB	Seal	999	Next
1	N 10286108	Hexagon collar nut self-locking M10	999	Next
1		Coolant pipe	999	Next
1		Coolant pipe	999	Next
1	06J145778H	Oil pipe	999	Next
1	N 90067202	O-ring 9,5X2,5	999	Next
1	N 0138514	O-ring 12X18	999	Next
1	WHT000223	Banjo bolt 8X4	999	Next
1	N 10619201	Socket head bolt with hexagon socket head M6X15	999	Next
1	N 10619201	Socket head bolt with hexagon socket head M6X15	999	Next
1	06H145735G	Oil pipe use if required: 06F 133 883 B	999	Next
1	06F145757L	Seal	999	Next
1	N 10619201	Socket head bolt with hexagon socket head M6X15	999	Next
1	06F145757L	Seal	999	Next
1	N 10619201	Socket head bolt with hexagon socket head M6X15	999	Next
1	06J145383D	Retainer for cover	999	Next
1	06H129597K	Cover plate	999	Next
1	N 10627801	Socket head bolt with inner multipoint head (kombi) M6X16	999	Next
1	N 01473911	Socket head bolt with hexagon socket head M8X16	999	Next
1	N 0160255	Sealing plug M12X1,50	999	Next

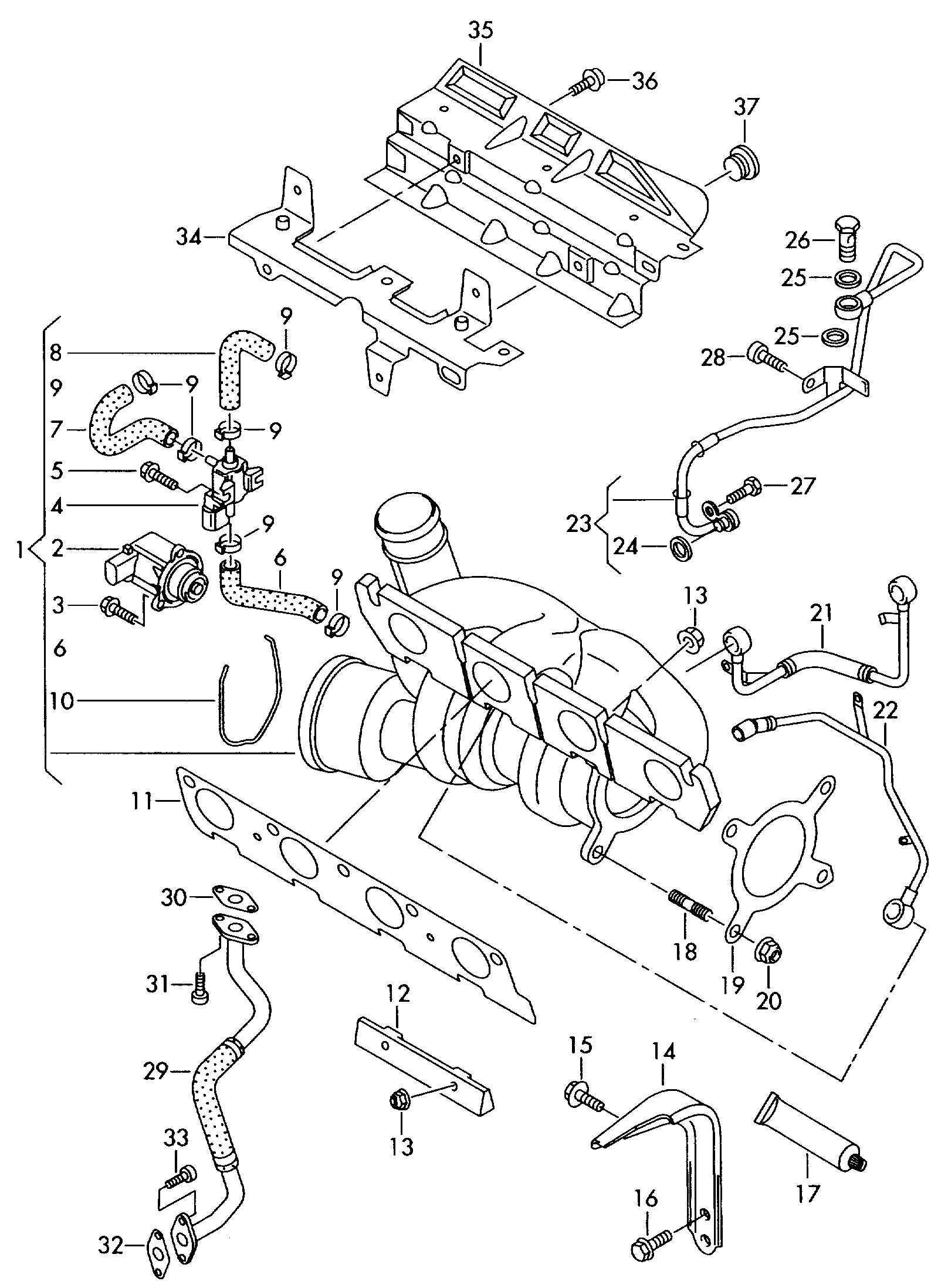

Scheme Exhaust manifold with turbocharger 2.0 ltr. petrol eng.+, CCZB, CCZD, CCZC Volkswagen Tiguan 2010-2017 EUR
