Exhaust manifold with turbocharger 2.0 ltr. petrol eng.+, CAWB, CCTA, CBFA, CCZA, CCZB Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06J145702K	Exhaust manifold with turbocharger IHI	999	Next
1	06J145713K	Exhaust manifold with turbocharger	999	Next
1	06J145702KX	Exhaust manifold with turbocharger IHI	999	Next
1	06J145713KX	Exhaust manifold with turbocharger	999	Next
1	06J145701T	Exhaust manifold with turbocharger IHI	999	Next
1	06J145713F	Exhaust manifold with turbocharger	999	Next
1	06J145713D	Exhaust manifold with turbocharger IHI	999	Next
1	06J145713FX	Exhaust manifold with turbocharger	999	Next
-	06J145220A	Spring clip	999	Next
1	06J145701N	Exhaust manifold with turbocharger	999	Next
5	06H145710C	Cut-off valve	999	Next
5	06F145710G	Cut-off valve	999	Next
6	N10546404	Oval socket head bolt with hex drive M6X16	999	Next
7	06F906283F	Solenoid valve	999	Next
8	N10459201	Hexagon socket head bolt M5X12	999	Next
9	06J145718D	Hose	999	Next
10	06J145718E	Hose	999	Next
11	06J145718F	Hose	999	Next
12	3C0131483	Spring band clamp B11,5X8,4	999	Next
13	1K0145769B	Retaining clip connection piece SCC48	999	Next
13	WHT006482	O-ring damper 74,8X1,65	999	Next
20	06F253039F	Seal	999	Next
21	06H145735G	Oil pipe	999	Next
22	N10619201	Socket head bolt with hexagon socket head M6X15	999	Next
23	06F145757H	Seal	999	Next
24	N10619201	Socket head bolt with hexagon socket head M6X15	999	Next
25	06F145757H	Seal	999	Next
26	06F253709A	Angled bracket	999	Next
27	06J145536M	Support	999	Next
27	06J145536D	Support	999	Next
28	N91103701	Socket head bolt with hexagon socket head M8X35	999	Next
29	N91117901	Socket head collared bolt with inner multipoint head M8X16	999	Next
30	N0445203	Threaded pin M10X28	999	Next
31	1K0253115AB	Seal	999	Next
32	N10286108	Hexagon collar nut self-locking M10	999	Next
37	N90894601	Hexagon nut, self-locking M8	999	Next
40	06J145778H	Oil pipe	999	Next
41	N90067202	O-ring 9,5X2,5	999	Next
42	N10619201	Socket head bolt with hexagon socket head M6X15	999	Next
43	N10619201	Socket head bolt with hexagon socket head M6X15	999	Next
44	N0138514	O-ring 12X18	999	Next
45	WHT000223	Banjo bolt 8X4	999	Next
29	06H145735E	Oil pipe	999	Next
46	06F133833B	Heat insulation oil pipe	999	Next
47	06J145383D	Retainer for cover	999	Next
34	06J145383B	Retainer for cover	999	Next
48	06H129597K	Cover plate	999	Next
35	06H129597B	Cover plate	999	Next
49	N10627801	Socket head bolt with inner multipoint head (kombi) M6X16	999	Next
50	N0160255	Sealing plug M12X1,50	999	Next
51	G052112A3	Hot-bolt-paste 170G	999	Next

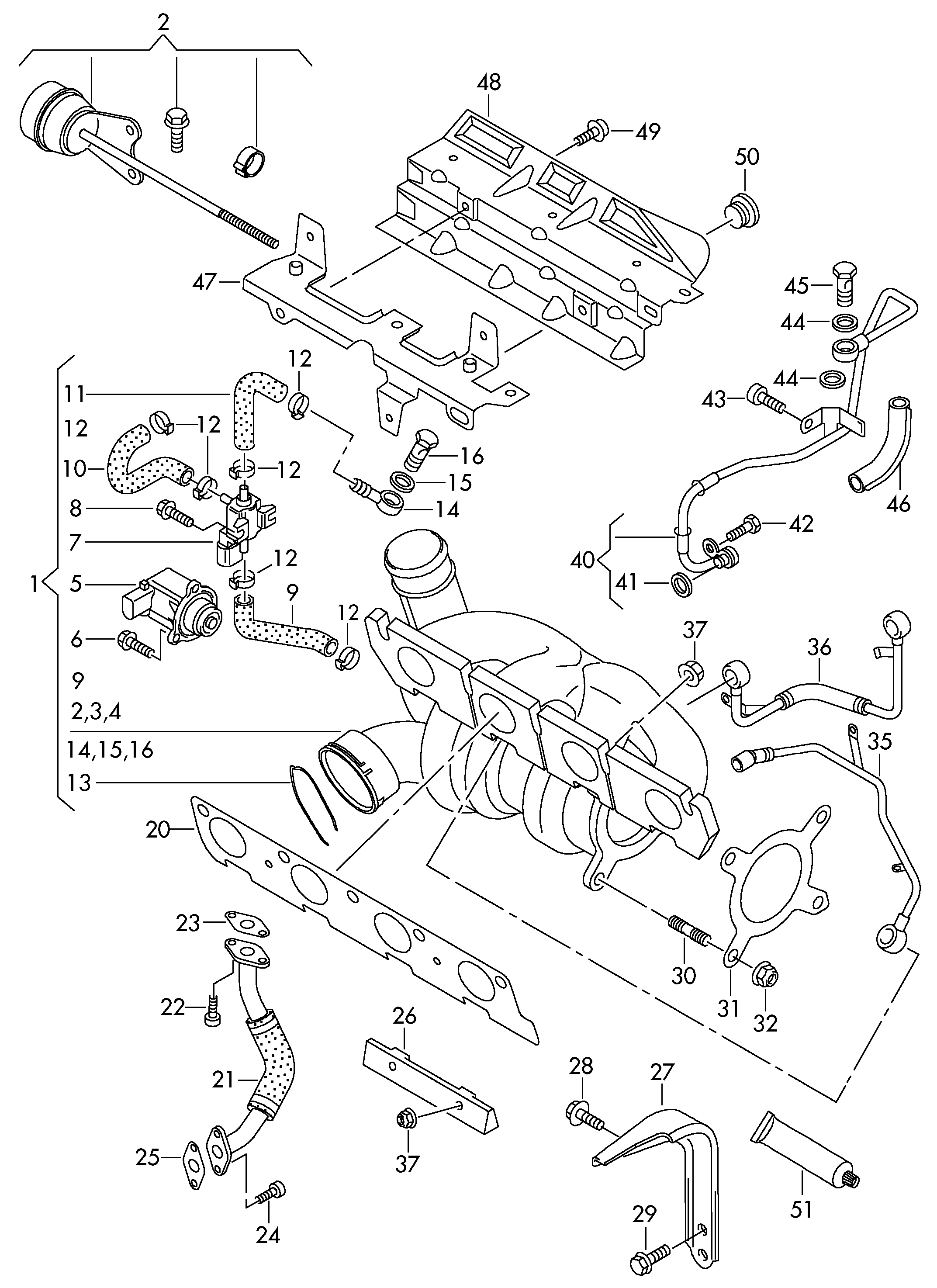

Scheme Exhaust manifold with turbocharger 2.0 ltr. petrol eng.+, CAWB, CCTA, CBFA, CCZA, CCZB Volkswagen Passat CC Coupe 2009-2012 EUR
