Exhaust manifold with turbocharger 2.0 ltr. diesel eng.+, CUWA Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	04L253010H	Exhaust manifold with turbocharger for vehicles with variable turbine geometry (vtg)	999	Next
1		Repair set (for turbocharger) not for this model	999	Next
1	04L253039G	Seal	999	Next
1	N 90188902	Threaded pin M8X35	999	Next
1	N 90894601	Hexagon nut, self-locking M8	999	Next
1	04L145771H	Supply pipe	999	Next
1	04L145807	Clamp 8	999	Next
1	N 0210717	Banjo bolt M12	999	Next
1	N 0138133	O-ring 12X17	999	Next
1	N 10524202	Hex socket head locating bolt M10X12	999	Next
1	04L131111AD	Damper	999	Next
1	04L145117	O-ring 56X3	999	Next
1	N 10124408	Hexagon socket head bolt (combi) M6X20	999	Next
1	04L145736E	Oil return line	999	Next
1	WHT007702	O-ring 17,12X2,62	999	Next
1	03L145757G	Seal	999	Next
1	N 90592705	Bolt, hex. hd. with shoulder, self-locking M6X16	999	Next
1	N 90737107	Fillister head bolt with multi-point socket head M6X12	999	Next
1	04L129969K	Cover	999	Next
1	N 10680303	Hexagon socket flat head bolt M6X8	999	Next
1	04L129969J	Cover	999	Next
1	N 10680303	Hexagon socket flat head bolt M6X8	999	Next
1	04L145828D	Pressure hose	999	Next
1	N 10518801	Clamp 40-60X12	999	Next
1	N 10619801	Clamp 45-65X12	999	Next
1	04L145762AD	Charge air tube	999	Next
1	867129669	Grommet	999	Next
1	3C0145830	Spacer sleeve with cylinder collar bolt	999	Next
1	04L145049L	Pressure hose with boost pressure sensor and bracket	999	Next
1	04L131850A	Pressure hose	999	Next
1	N 90686701	Spring band clamp 14X12	999	Next
1	N 10335206	Hexagon socket flat head bolt M6X12	999	Next
1	N 90440003	Hexagon head bolt (combi) M8X35	999	Next
1		Controller lid	999	Next
1		Connection piece	999	Next
1		Connecting pipe	999	Next
1		Connection piece	999	Next
1		Diesel particulate filter	999	Next
1		Exhaust gas temperature sender	999	Next
1		Vacuum hose	999	Next
1		Bracket	999	Next
1	28145786	Threaded union with seal M10X1/M14X1,5	999	Next
1	N 90707001	O-ring 10X15	999	Next
1	04L145119A	O-ring 57X63,2X5	999	Next

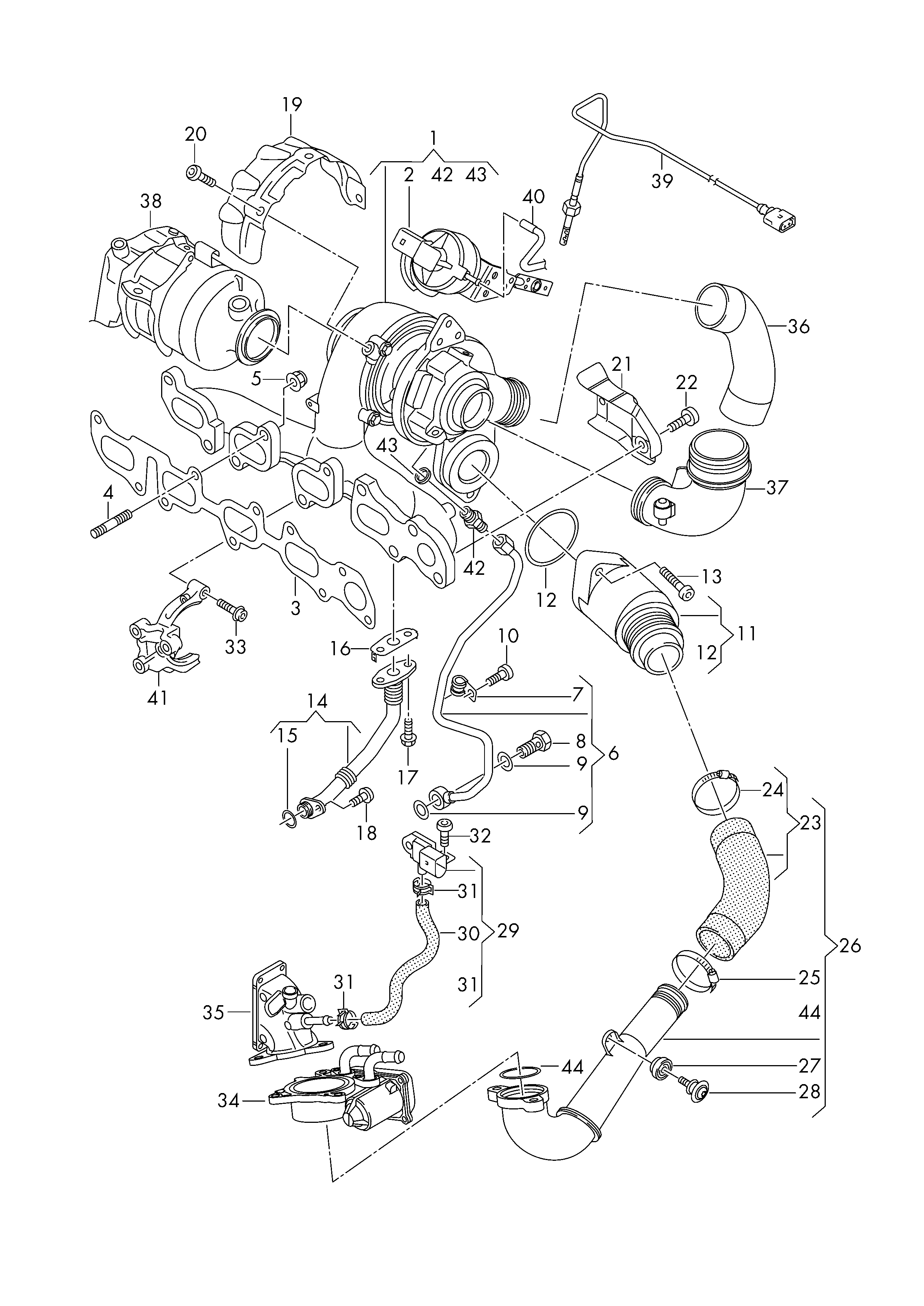

Scheme Exhaust manifold with turbocharger 2.0 ltr. diesel eng.+, CUWA Volkswagen Tiguan 2010-2017 EUR
