Exhaust manifold with turbocharger 2.0 ltr. diesel eng.+, CFHB, CFHC, CLCA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03L253056G	Exhaust manifold with turbocharger for vehicles with variable turbine geometry (vtg) BORGWARNER	999	Next
1	03L253056T	Exhaust manifold with turbocharger for vehicles with variable turbine geometry (vtg) BORGWARNER	999	Next
1	03L253010G	Exhaust manifold with turbocharger for vehicles with variable turbine geometry (vtg) BORGWARNER	999	Next
1	03L253056GX	Exhaust manifold with turbocharger for vehicles with variable turbine geometry (vtg) BORGWARNER	999	Next
1	03L253056TX	Exhaust manifold with turbocharger for vehicles with variable turbine geometry (vtg) BORGWARNER	999	Next
1	03L253010GX	Exhaust manifold with turbocharger for vehicles with variable turbine geometry (vtg) BORGWARNER	999	Next
-	N0445093	Threaded pin included in position: M8X22 1	999	Next
2	03L131111G	Damper	999	Next
3	03L145117	O-ring 56X3	999	Next
4	N91117502	Hexagon socket head bolt M6X45	999	Next
5	03L198716B	Repair set (for turbocharger) included in position: 1	999	Next
6		Socket head bolt with inner multipoint head included in position: 5	999	Next
7	N90894601	Hexagon nut, self-locking M8	999	Next
8	03L253039E	Seal	999	Next
9	03L129969A	Guard plate	999	Next
10	N10680303	Hexagon socket flat head bolt M6X8	999	Next
12	03L906088EC	Exhaust gas temperature sender	999	Next
14	03L129969AC	Cover	999	Next
15	N10680303	Hexagon socket flat head bolt M6X8	999	Next
17	03L145771AN	Supply pipe	999	Next
17	03L145771N	Supply pipe	999	Next
18	N0210717	Banjo bolt M12	999	Next
19	N0138133	O-ring 12X17	999	Next
20	03L145736D	Oil return line	999	Next
21	03L145757M	Seal	999	Next
21	03L145757Q	Seal	999	Next
22	WHT001965	O-ring 13,5X1,93	999	Next
23	N90592705	Bolt, hex. hd. with shoulder, self-locking M6X16	999	Next
25	03L145764A	Retaining bar	999	Next
26	N90440003	Hexagon head bolt (combi) M8X35	999	Next
27	N0206096	Clamp 1-8X15	999	Next
28	N91096603	Hexagon socket flat head bolt M6X12	999	Next
30	03L145535A	Support D >> - 31.01.2012	999	Next
30	03L145535D	Support use if required: WHT 005 635	999	Next
31	N91204701	Clamp	999	Next
32	N10741402	Hexagon socket flat head bolt M6X14	999	Next
33	WHT003496	Banjo bolt	999	Next
33	WHT005635	Banjo bolt	999	Next
34	N90715601	O-ring 17X2	999	Next
35	N90978801	O-ring only for: 21X1,5 WHT003496	999	Next
35		O-ring contained in: WHT005635	999	Next

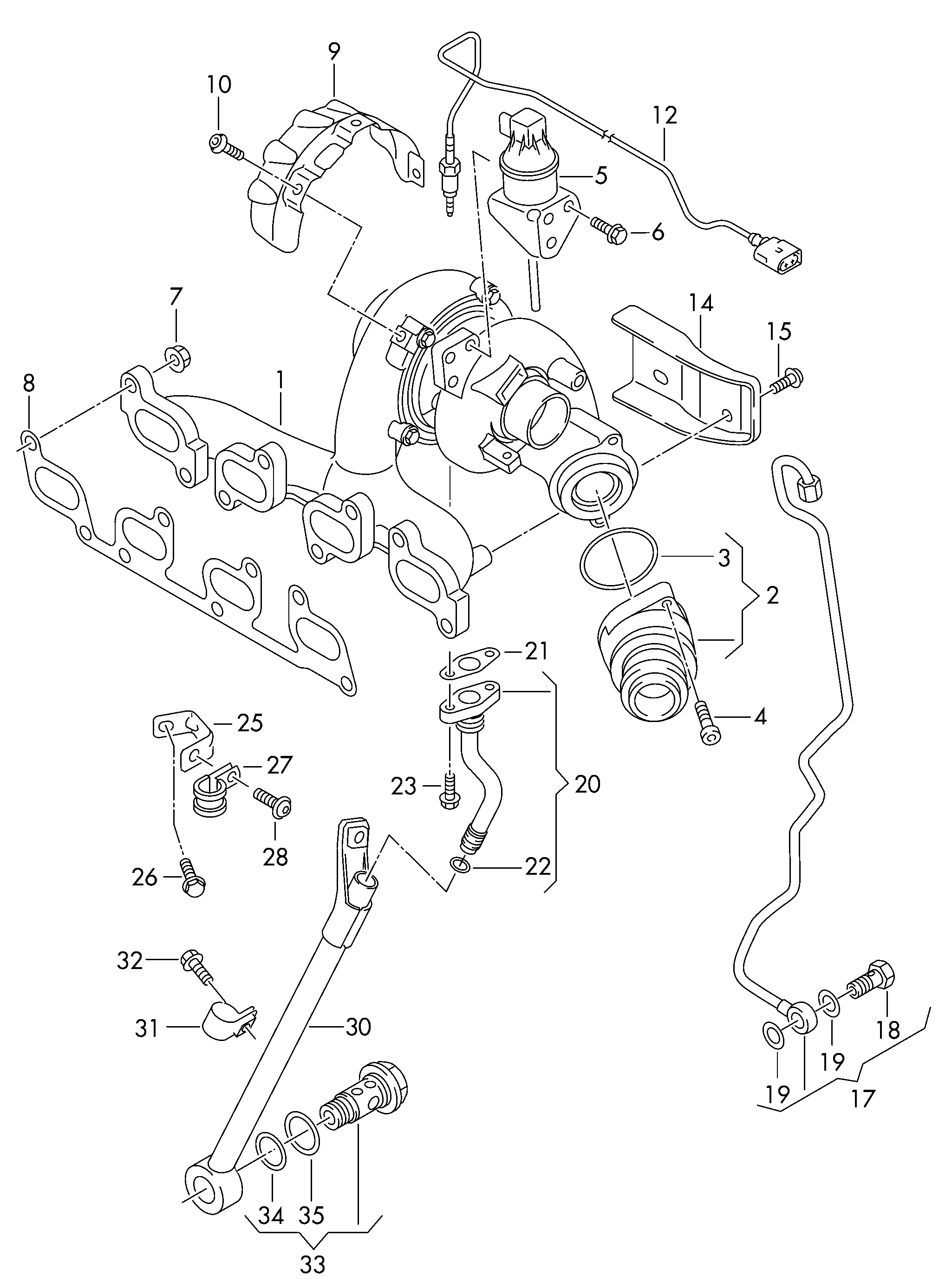

Scheme Exhaust manifold with turbocharger 2.0 ltr. diesel eng.+, CFHB, CFHC, CLCA Volkswagen Golf Plus 2012-2014 EUR
