Exhaust manifold with turbocharger 1.6ltr. diesel eng.+, CAYB, CAYC Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03L253016T	Exhaust manifold with turbocharger for vehicles with variable turbine geometry (vtg) GARRETT	999	Next
1	03L253016TX	Exhaust manifold with turbocharger for vehicles with variable turbine geometry (vtg) GARRETT	999	Next
-	N0445093	Threaded pin included in position: M8X22 1	999	Next
2	03L131111J	Damper	999	Next
3	03L145117B	O-ring 56X3	999	Next
4	N91117502	Hexagon socket head bolt M6X45	999	Next
5	03L253039E	Seal	999	Next
6	N90894601	Hexagon nut, self-locking M8	999	Next
7	03L145736M	Oil return line	999	Next
7	03L145736AH	Oil return line no item: 11	999	Next
8	WHT001965	O-ring 13,5X1,93	999	Next
9	N0210717	Banjo bolt M12	999	Next
10	N0138133	O-ring 12X17	999	Next
11	03L145757H	Seal	999	Next
12	N90592705	Bolt, hex. hd. with shoulder, self-locking M6X16	999	Next
13	03L145535A	Support	999	Next
13	03L145535D	Support use if required: WHT 005 635	999	Next
14	N90715601	O-ring 17X2	999	Next
15	N90978801	O-ring 21X1,5	999	Next
15		O-ring contained in: WHT 005 635	999	Next
16	WHT003496	Banjo bolt	999	Next
16	WHT005635	Banjo bolt	999	Next
17	N90440003	Hexagon head bolt (combi) M8X35	999	Next
18	N10741402	Hexagon socket flat head bolt M6X14	999	Next
19	N91204701	Clamp 20X20X25	999	Next
20	03L906088EC	Exhaust gas temperature sender	999	Next
21	03L129969AC	Cover	999	Next
22	N10680303	Hexagon socket flat head bolt M6X8	999	Next
23	03L129969A	Guard plate	999	Next
24	N10680303	Hexagon socket flat head bolt M6X8	999	Next

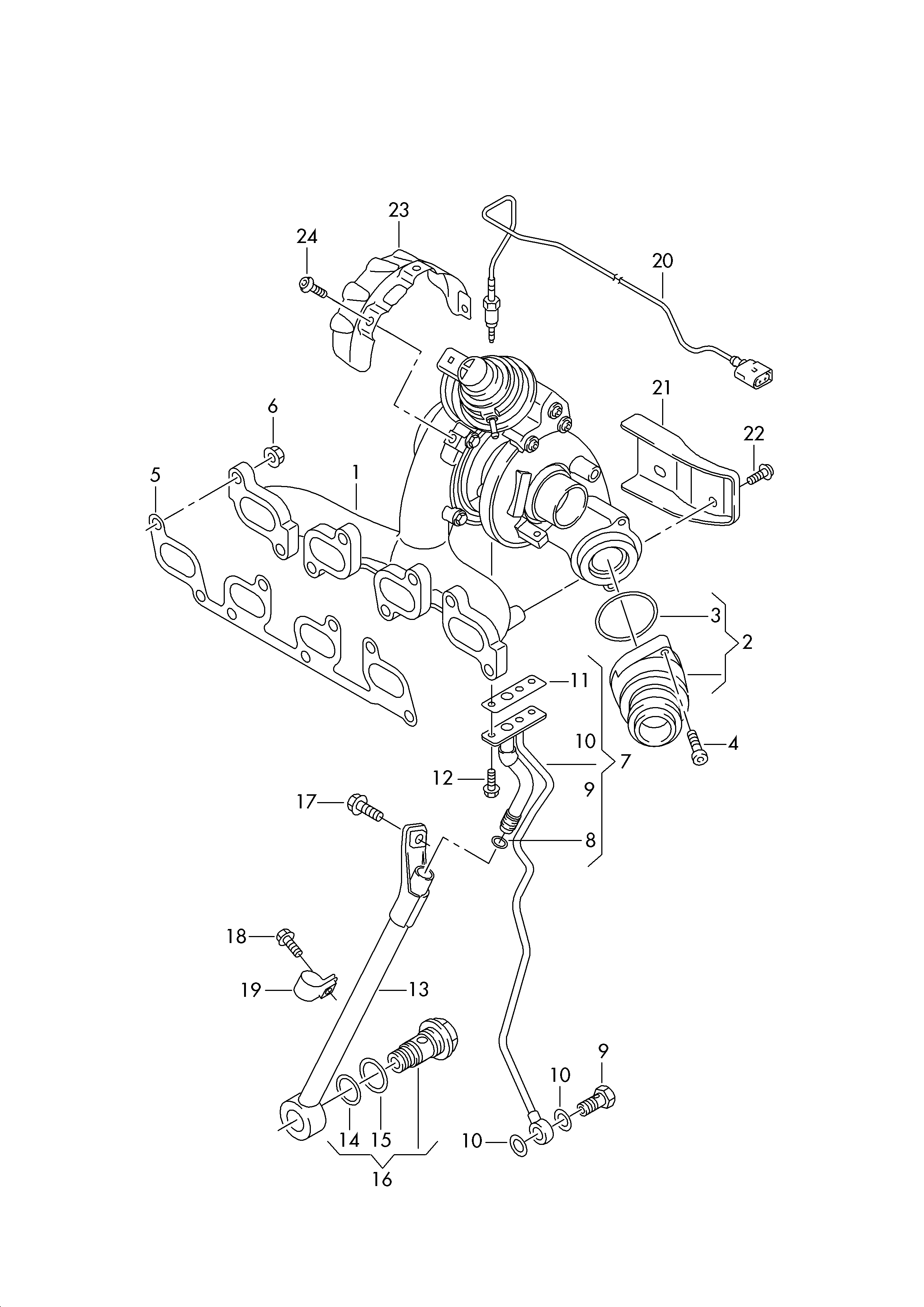

Scheme Exhaust manifold with turbocharger 1.6ltr. diesel eng.+, CAYB, CAYC Volkswagen Golf Plus 2012-2014 EUR
