Exhaust manifold with turbocharger 1.4ltr. petrol eng.+, CZDB, CZDA Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	04E145721F	Exhaust manifold with turbocharger	999	Next
1	04E198725M	Repair kit for servomotor	999	Next
1	04E253039D	Seal	999	Next
1	N 91200201	Threaded pin M8AX32	999	Next
1	WHT000001N	Hexagon collar nut self-locking M8	999	Next
1	04E145140E	Supply pipe	999	Next
1	04E145807	Clamp	999	Next
1	WHT006990	O-ring 7,59X2,62	999	Next
1	N 10405604	Oval hexagon socket head bolt M6X14	999	Next
1	04E145735C	Oil return line	999	Next
1	WHT005363	O-ring 12,4X3,53	999	Next
1	N 10405604	Oval hexagon socket head bolt M6X14	999	Next
1	04E253041F	Guard plate	999	Next
1	N 10405604	Oval hexagon socket head bolt M6X14	999	Next
1	N 91187801	Socket head bolt with inner multipoint head M8X20	999	Next
1	N 10451408	Oval hexagon socket head bolt M6X16	999	Next
1	04E145875F	Bracket	999	Next
1	WHT001386	Seal 44X4	999	Next
1	04E145673E	Pressure pipe	999	Next
1	04E906051	Pressure sensor use if required: N 105 072 01	999	Next
1	WHT003247	O-ring 65X4	999	Next
1		Retaining bar	999	Next
1		Intake manifold	999	Next
1		Exhaust pipe with catalyst	999	Next
1		Coolant pipe	999	Next
1		Vent hose	999	Next
1	N 10507201	Fillister hd. bolt 5X20	999	Next

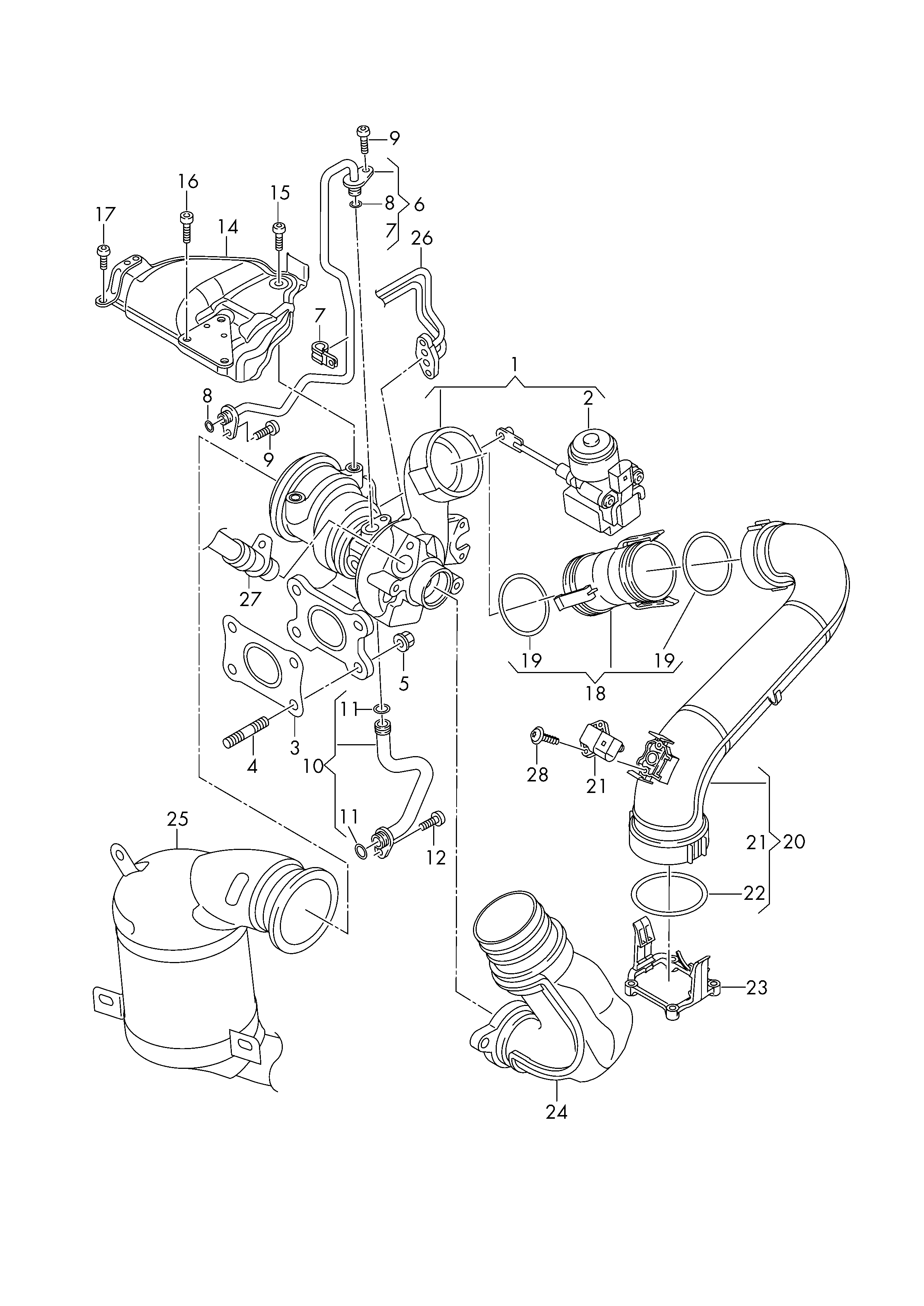

Scheme Exhaust manifold with turbocharger 1.4ltr. petrol eng.+, CZDB, CZDA Volkswagen Tiguan 2010-2017 EUR
