Exhaust manifold with turbocharger 1.4ltr. petrol eng.+, CAXA Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C145702C	Exhaust manifold with turbocharger MHI	999	Next
1	03C145702L	Exhaust manifold with turbocharger	999	Next
1	03C145702CX	Exhaust manifold with turbocharger MHI	999	Next
1	03C145702LX	Exhaust manifold with turbocharger	999	Next
1	03C198722	Repair set for exhaust gas turbocharger observe technical service handbook: 2020616	999	Next
1	03C253197P	Bracket	999	Next
1	03C253197R	Bracket	999	Next
1	03C253039F	Seal	999	Next
1	WHT003842	Shouldered nut with multipoint socket head	999	Next
1	06H145710D	Cut-off valve	999	Next
1	N 10196103	Socket head bolt with inner multipoint head (kombi) M6X18	999	Next
1	WHT002622	Threaded pin M8X27,5	999	Next
1	03C145692P	Solenoid valve with negative pressure hose	999	Next
1	03C145140K	Oil pipe	999	Next
1	N 0210717	Banjo bolt M12	999	Next
1	N 0138133	O-ring 12X17	999	Next
1	WHT003366A	O-ring 10X2	999	Next
1	N 10335202	Oval hexagon socket head bolt M6X12	999	Next
1	03C145735F	Oil pipe	999	Next
1	03C145757D	Seal	999	Next
1	03C145757A	Seal	999	Next
1	03C145673N	Pressure pipe	999	Next
1	03G906051D	Pressure sensor flat contact housing 1J0 973 704	999	Next
1	N 90739703	Panel screw 5X22	999	Next
1	WHT003247	O-ring 65X4	999	Next
1	03C145853D	Retaining bar	999	Next
1	N 10611201	Oval head panel screw 6X22	999	Next
1	03C145853H	Adapter	999	Next
1	N 10668001	Oval hexagon socket head bolt 6X65X30	999	Next
1	03C253197N	Bracket	999	Next
1	N 01029319	Hexagon bolt M8X16	999	Next
1	03C253041BH	Warm air deflector plate	999	Next
1	03C253041AS	Warm air deflector plate	999	Next
1	N 91096603	Hexagon socket flat head bolt M6X12	999	Next
1	G 052112A3	Hot-bolt-paste to be used for item: 170G 7	999	Next
1	03C129656L	Intake manifold	999	Next
1	WHT003261	Hexagon collared bolt with guide sleeve to be used for item: M6X25 31	999	Next
1	N 10442003	Self-tapping screw to be used for item: 5X16 8	999	Next
1	WHT001386	Seal 44X4	999	Next
1	WHT003186	O-ring 35X4	999	Next

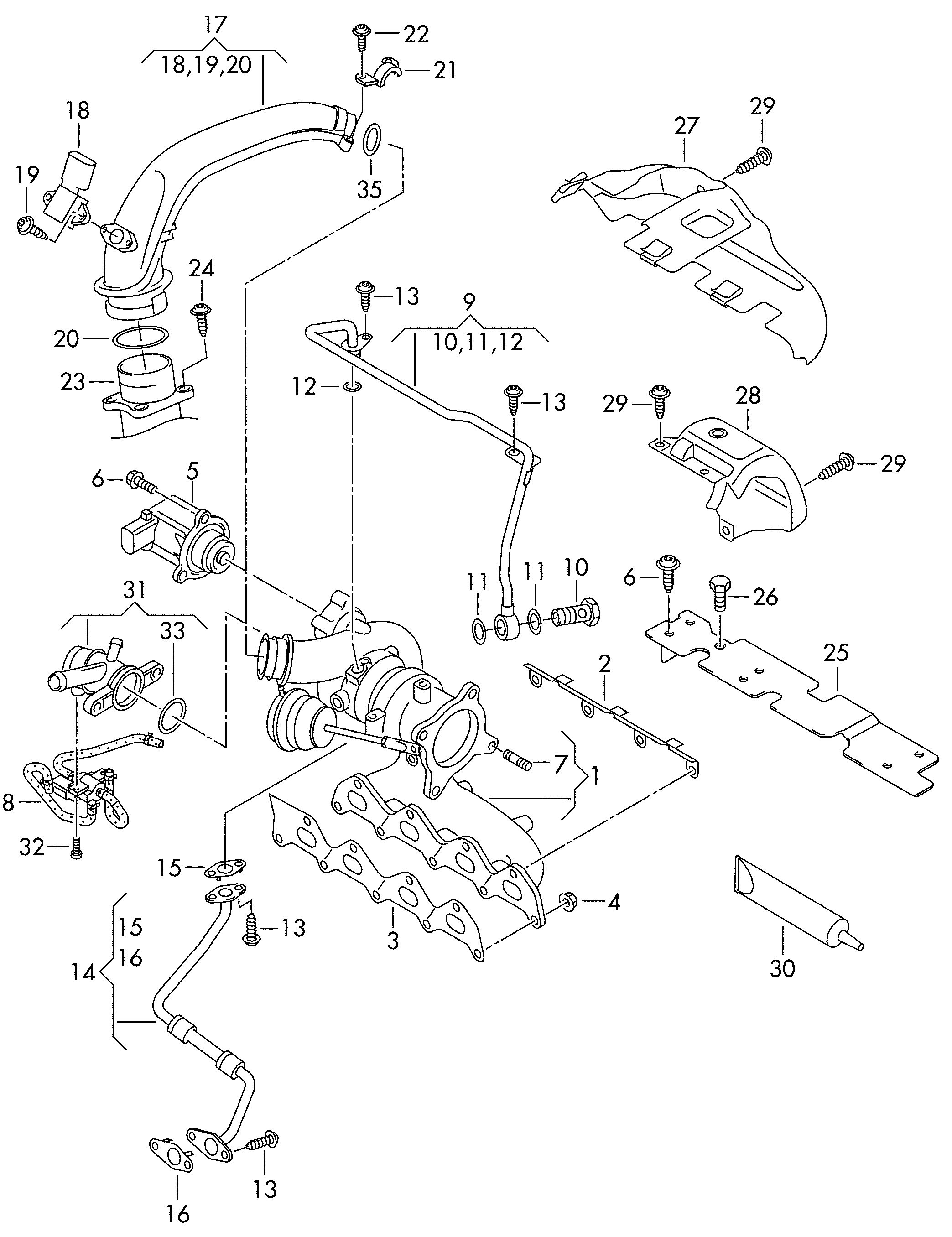

Scheme Exhaust manifold with turbocharger 1.4ltr. petrol eng.+, CAXA Volkswagen Tiguan 2010-2017 EUR
