Exhaust manifold with turbocharger 1.4ltr. petrol eng.+, CAVA, CAVD, CTHA, CTHD Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C145701T	Exhaust manifold with turbocharger use if required: BORGWARNER 03C 145 140 M	999	Next
1	03C145702P	Exhaust manifold with turbocharger use if required: 03C 145 140 M	999	Next
1	03C145703A	Exhaust manifold with turbocharger	999	Next
1	03C145701TX	Exhaust manifold with turbocharger use if required: BORGWARNER 03C 145 140 M	999	Next
1	03C145702PX	Exhaust manifold with turbocharger use if required: 03C 145 140 M	999	Next
1	03C145703AX	Exhaust manifold with turbocharger	999	Next
1	03C253039F	Seal	999	Next
1	N 90894601	Hexagon nut, self-locking M8	999	Next
1	03C906283B	Solenoid valve	999	Next
1	N 10453502	Fillister hd. bolt 5X10	999	Next
1	N 01152322	Washer 5,3X10X1	999	Next
1	03C145718R	Hose	999	Next
1	03C145718Q	Hose	999	Next
1	03C145718R	Hose	999	Next
1	3C0131483	Spring band clamp 11,5X8,4	999	Next
1	03C145710D	Cut-off valve N249	999	Next
1	03C145710E	Cut-off valve N249	999	Next
1	N 91032702	Round-head screw with inner hexagon socket head M6X20	999	Next
1	03C145140M	Oil pipe	999	Next
1	N 0138133	O-ring 12X17	999	Next
1	N 0210717	Banjo bolt M12	999	Next
1	03C145735C	Oil pipe	999	Next
1	WHT003367	O-ring 15X2	999	Next
1	03C145757A	Seal	999	Next
1	WHT005227	Oval hexagon socket head bolt M6X12	999	Next
1	G 052112A3	Hot-bolt-paste to be used for item: 170G 22	999	Next
1	03C253197AB	Retaining bar	999	Next
1	N 01029319	Hexagon bolt M8X16	999	Next
1	N 91160101	Double collared stud M6X16/M6X12	999	Next
1	WHT001264	Threaded pin M8X27,5	999	Next
1	5N0253115	Seal	999	Next
1	N 90894601	Hexagon nut, self-locking M8	999	Next
1		Bracket no replacement part item to be removed is: 25	999	Next
1	03C253041AM	Warm air deflector plate	999	Next
1	N 10632003	Oval socket head bolt with hex drive M6X16	999	Next
1	N 01508210	Hexagon collar nut M6	999	Next
1		Coolant pipe	999	Next
1		Coolant pipe	999	Next

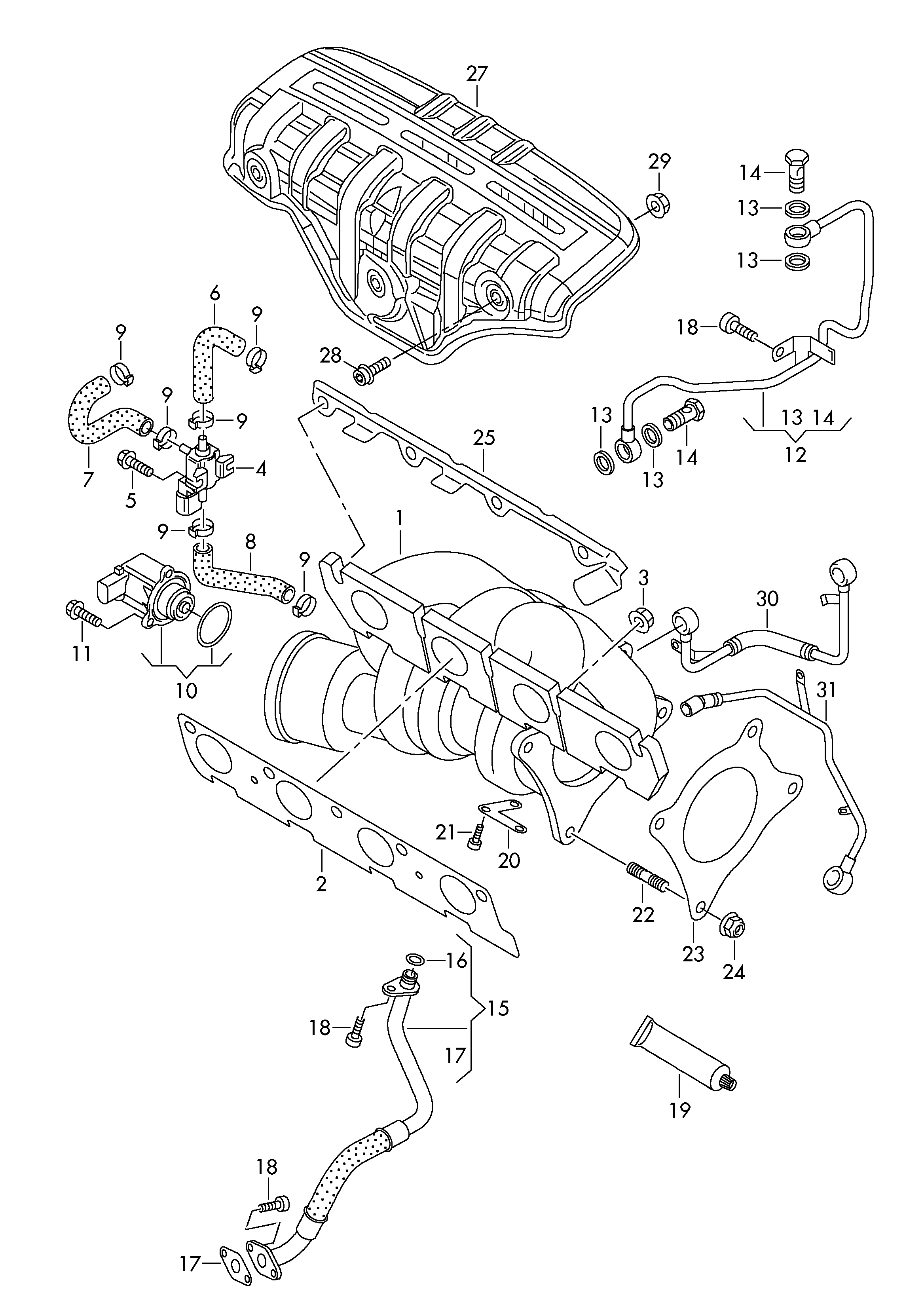

Scheme Exhaust manifold with turbocharger 1.4ltr. petrol eng.+, CAVA, CAVD, CTHA, CTHD Volkswagen Tiguan 2010-2017 EUR
