Exhaust manifold with turbocharger 1.2 ltr. petrol eng.+, CBZA, CBZB Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03F145701G	Exhaust manifold with turbocharger	999	Next
1	03F145701M	Exhaust manifold with turbocharger	999	Next
1	03F145701GX	Exhaust manifold with turbocharger	999	Next
1	03F145701MX	Exhaust manifold with turbocharger	999	Next
1	03F145701H	Exhaust manifold with turbocharger	999	Next
1	03F145701HX	Exhaust manifold with turbocharger	999	Next
1	03F145701K	Exhaust manifold with turbocharger	999	Next
1	03F145701KX	Exhaust manifold with turbocharger	999	Next
1A	03F145371	Shim (for repairs only)	999	Next
1A	03F145371A	Shim (for repairs only)	999	Next
2	03F198725	Repair kit for servomotor	999	Next
2	03F198725A	Repair kit for servomotor	999	Next
2	03F198725B	Repair kit for servomotor	999	Next
2	03F198725C	Repair kit for servomotor	999	Next
3A	WHT003865	O-ring 33X4	999	Next
4	03F129656F	Intake manifold	999	Next
5	WHT003261	Hexagon collared bolt with guide sleeve M6X25	999	Next
6	WHT006135	O-ring 38,5X4	999	Next
7	03F145195	Support	999	Next
8	N01029319	Hexagon bolt M8X16	999	Next
9	WHT002622	Threaded pin M8X27,5	999	Next
10	1K0253115AF	Seal	999	Next
10	1K0253115AH	Seal	999	Next
11	WHT004982	Shouldered nut with multipoint socket head	999	Next
12	03F253041P	Seal	999	Next
12	03F253041Q	Seal	999	Next
12	03F253041AA	Seal	999	Next
13	N91096603	Hexagon socket flat head bolt M6X12	999	Next
14	N91154701	Socket head bolt with inner multipoint head M8X20-TC	999	Next
15	03F145735C	Oil return line	999	Next
15	03F145735E	Oil return line	999	Next
16	WHT005363	O-ring 12,4X3,53	999	Next
17	N10451405	Oval hexagon socket head bolt M6X16	999	Next
18	03F145140D	Oil pipe	999	Next
18	03F145140E	Oil pipe	999	Next
19	N0210717	Banjo bolt M12	999	Next
20	N0138133	O-ring 12X17	999	Next
21	8P0145117A	O-ring 7,59X2,62	999	Next
22	N10405604	Oval hexagon socket head bolt M6X14	999	Next
23	03F253041G	Warm air deflector plate	999	Next
23	03F253041R	Warm air deflector plate	999	Next
24	N91096603	Hexagon socket flat head bolt M6X12	999	Next
25	03F253041M	Warm air deflector plate	999	Next
25	03F253041S	Warm air deflector plate	999	Next
26	N91096603	Hexagon socket flat head bolt M6X12	999	Next
30	03F145673F	Pressure pipe	999	Next
31	03G906051D	Pressure sensor	999	Next
32	N90739704	Panel screw 5X22	999	Next
33	03F145853A	Retaining bar	999	Next
34	03F145853	Adapter	999	Next
35	N10611201	Oval head panel screw 6X22	999	Next
36	N10668001	Oval hexagon socket head bolt 6X65X30	999	Next
37	WHT005280	O-ring 65X4,35	999	Next

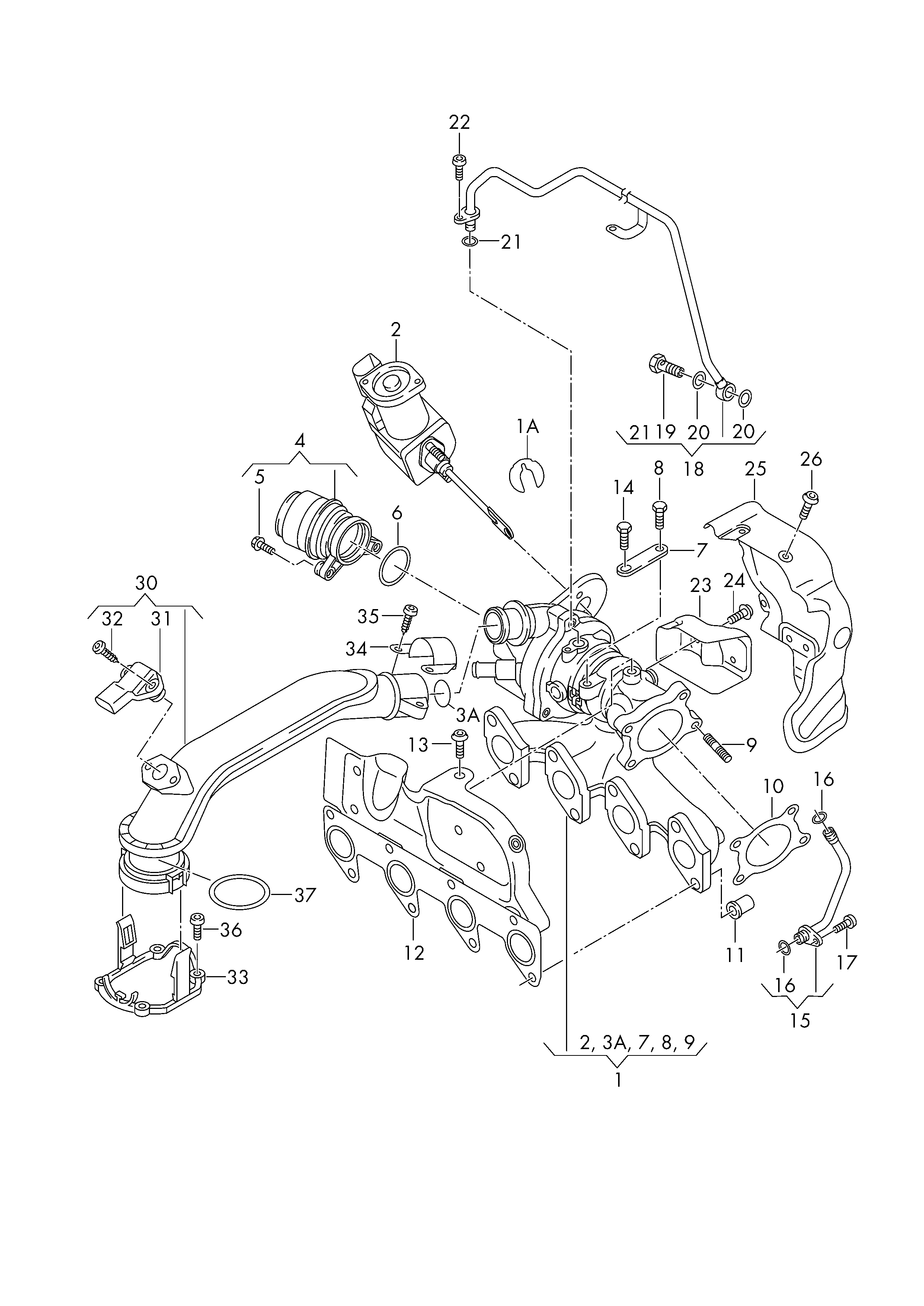

Scheme Exhaust manifold with turbocharger 1.2 ltr. petrol eng.+, CBZA, CBZB Volkswagen Golf Plus 2012-2014 EUR
