Exhaust gas recirculation, vacuum system 2.0 ltr. diesel eng.+, PR-T0N Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	04L131512AM	Cooler for exhaust gas recuperation with control flap	999	Next
1	04L131501C	Exhaust recirculation valve	999	Next
1	04L971461AC	Heat reflective mat	999	Next
1	04L131547A	Seal	999	Next
1	N 10196103	Socket head bolt with inner multipoint head (kombi) M6X18	999	Next
1	N 10664901	Socket head collared bolt with inner multipoint head M8X16	999	Next
1	4A0820199	Double cable tie	999	Next
1	N 10717001	Socket head bolt with inner multipoint head M8X18	999	Next
1	04L131547	Seal	999	Next
1	04L131455A	Clamp	999	Next
1	04L131521AF	Connecting pipe	999	Next
1	04L131539	Spring band clamp	999	Next
1	04L129456D	Vacuum hose	999	Next
1	N 10507901	Clip 7	999	Next
1	N 10196103	Socket head bolt with inner multipoint head (kombi) M6X18	999	Next
1	N 10285505	Socket head bolt with inner hex round head M6X12	999	Next
1	04L131213	Clip	999	Next
1	04L131051Q	Vacuum hose	999	Next
1	04L131055D	Vacuum hose	999	Next
1	N 01508210	Hexagon collar nut M6	999	Next
1	1K0906627B	Pressure converter	999	Next
1	52129734	Distance piece	999	Next
1	1K0906215S	Retaining plate	999	Next
1	46131887	Grommet	999	Next
1	46130405	Retaining plate	999	Next
1	3W0971838	Cable ties	999	Next
1		Vacuum pipe with non-return valve	999	Next
1		Diesel particulate filter	999	Next
1		Air filter	999	Next
1		Exhaust manifold with turbocharger	999	Next
1		Cylinder head cover	999	Next
1		Coolant hose	999	Next
1		Coolant hose	999	Next

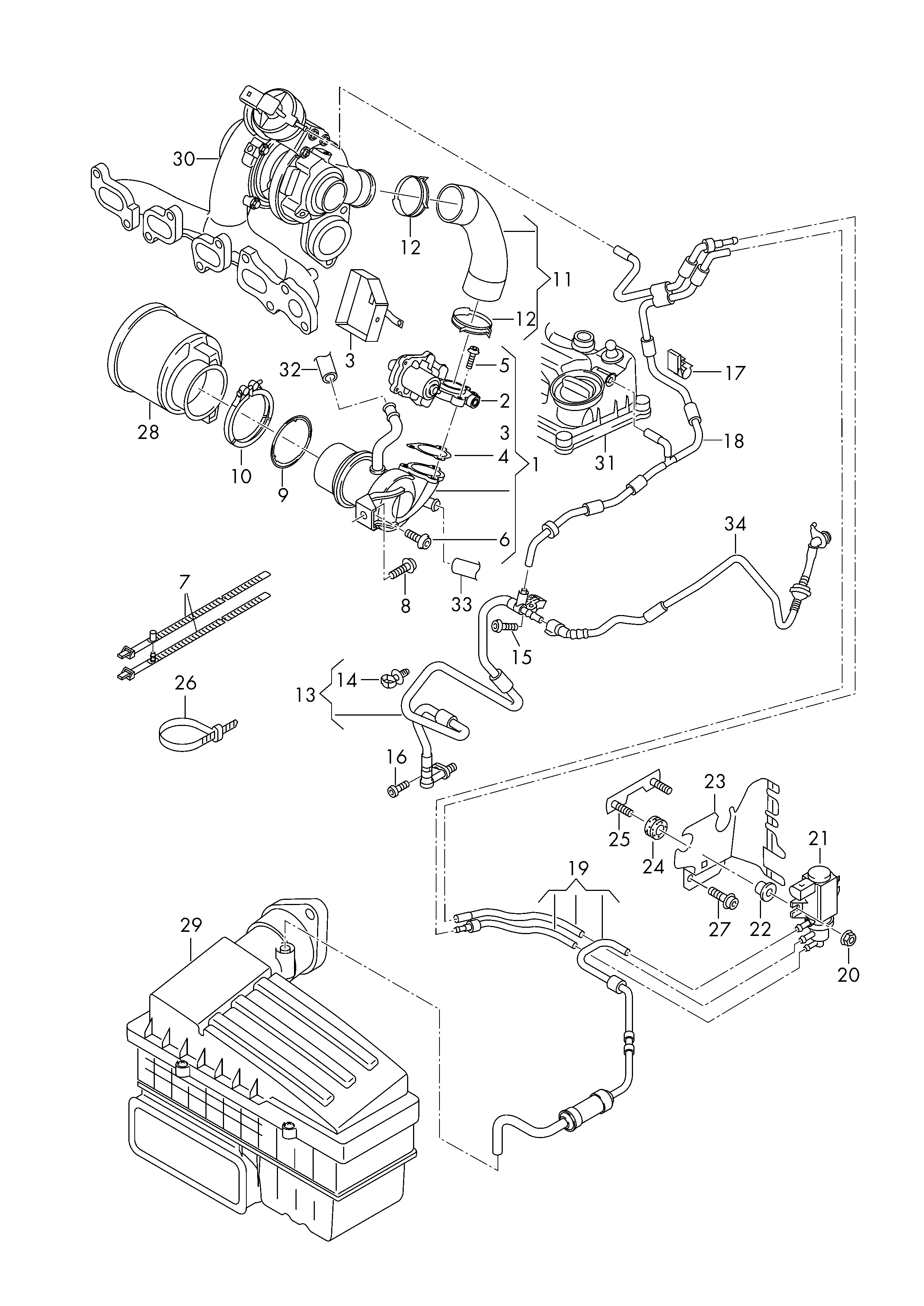

Scheme Exhaust gas recirculation, vacuum system 2.0 ltr. diesel eng.+, PR-T0N Volkswagen Tiguan 2010-2017 EUR
