Exhaust gas recirculation 1.6 ltr., 2.0 ltr. diesel eng.+, CAYB, CAYC, diesel eng.+, CFHB, CFHC, CLCA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1		Intake connection	999	Next
1A		Air filter	999	Next
2	03L128063Q	Throttle valve control element	999	Next
2	03L128063AD	Throttle valve control element	999	Next
2	03L128063L	Throttle valve control element	999	Next
2	03L128063R	Throttle valve control element	999	Next
2	03L128063AC	Throttle valve control element	999	Next
3	03L131547F	Seal	999	Next
3	03L131547B	Square ring 55	999	Next
4	N10670301	Oval hexagon socket head bolt M6X55	999	Next
5	03L131512CF	Cooler for exhaust gas recuperation with control flap use if required: 03L 131 531 A	999	Next
5	03L131512BJ	Cooler for exhaust gas recuperation with control flap use if required: 03L 131 531 A	999	Next
5	03L131512BL	Cooler for exhaust gas recuperation with control flap	999	Next
5A	03L131531A	Heat insulation	999	Next
6	03P131521B	Connecting pipe	999	Next
7	03L131547L	Seal	999	Next
8	03K131547C	Seal	999	Next
9	03L131521Q	Connecting pipe	999	Next
9	03P131521A	Connecting pipe	999	Next
10	N91032702	Round-head screw with inner hexagon socket head M6X20	999	Next
11	N90894601	Hexagon nut, self-locking M8	999	Next
12	N10196103	Socket head bolt with inner multipoint head (kombi) only for position: M6X18 5	999	Next
12	N10405604	Oval hexagon socket head bolt only for position: M6X14 5	999	Next
12	N10196103	Socket head bolt with inner multipoint head (kombi) only for position: M6X18 13	999	Next
13	03L131521R	Connecting pipe	999	Next
14	070131548C	Clamp	999	Next
15	03L131055AC	Vacuum hose	999	Next
15	03L131055DA	Vacuum hose	999	Next
16	03L131055AM	Vacuum hose	999	Next
16	03L131055DB	Vacuum hose	999	Next
17	1K0906627B	Pressure converter	999	Next
18	1K0906435	Distance piece 19,5X10,6X10,6	999	Next
19	1K0906139	Thrust ring	999	Next
20	46131887	Grommet	999	Next
21	1K0906139A	Thrust ring	999	Next
22	46130405	Retaining plate	999	Next
23	N01508210	Hexagon collar nut M6	999	Next
24	03L131055BR	Vacuum hose	999	Next
24	03L131055DC	Vacuum hose	999	Next
25	046905291B	Non-return valve	999	Next
26	1K0906283A	Solenoid valve	999	Next
27	N10406504	Oval hexagon socket head bolt M6X12	999	Next
28	03L131529A	Retaining plate	999	Next
28	03L131529F	Retaining plate	999	Next
28	03L131529G	Retaining plate	999	Next
29	N10406504	Oval hexagon socket head bolt M6X12	999	Next
30	03L131605E	Connecting pipe	999	Next
30	03L131605N	Connecting pipe	999	Next
31	03L131605J	Connecting pipe	999	Next
31	03L131605M	Vacuum hose	999	Next
32	N90894601	Hexagon nut, self-locking M8	999	Next
32	N10170303	Round hd. screw M6X10	999	Next
33	3D0971838N	Cable ties 4,5X200	999	Next
34	4A0820199	Double cable tie 7X213/140MM	999	Next

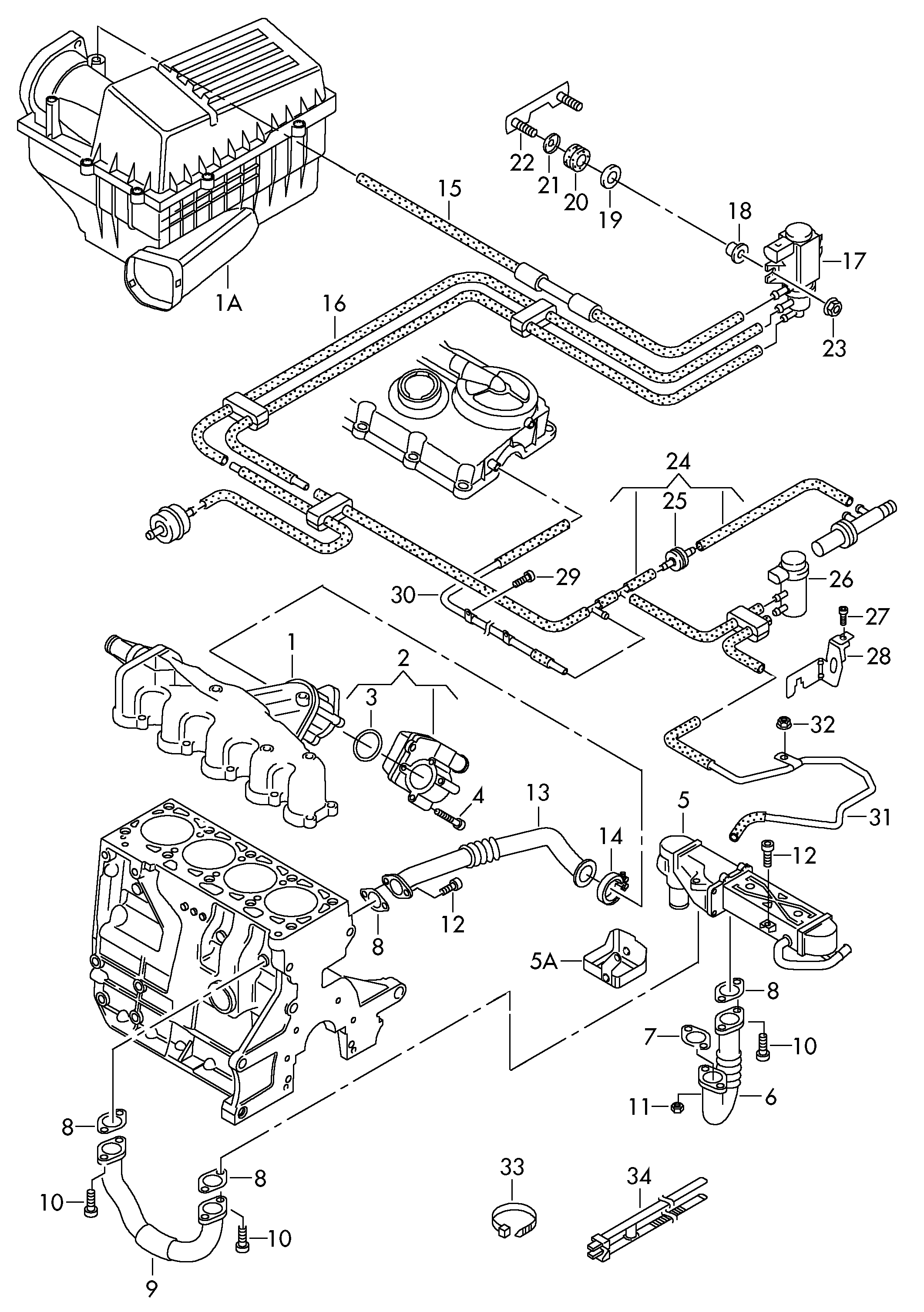

Scheme Exhaust gas recirculation 1.6 ltr., 2.0 ltr. diesel eng.+, CAYB, CAYC, diesel eng.+, CFHB, CFHC, CLCA Volkswagen Golf Plus 2012-2014 EUR
