Engine/gearbox assy skid plate PR-1SB, 1SK Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5K0825902A	Engine/gearbox assy skid plate	999	Next
1	5K0825901C	Engine/gearbox assy skid plate	999	Next
3	5K0825225	Damping	999	Next
5	5K0825921	Bracket mount	999	Next
6	5K0825921A	Bracket mount	999	Next
8	5K0825922	Bracket mount	999	Next
8	5K0825922B	Bracket mount	999	Next
8	5K0825922C	Bracket mount	999	Next
9	5K0825922A	Bracket mount	999	Next
10	N91075801	Socket head bolt with inner multipoint head M10X30	999	Next
11	N90448004	Rivetted cap nut M10	999	Next
12	N90761103	Hexagon collar nut M8	999	Next
18	1K0018926B	Arm	999	Next
19	N10505602	Hex collared bolt M12X1,5X80	999	Next
20	N10717001	Socket head bolt with inner multipoint head M8X18	999	Next
24	N90974701	Hexagon socket head panel bolt 5X16	999	Next

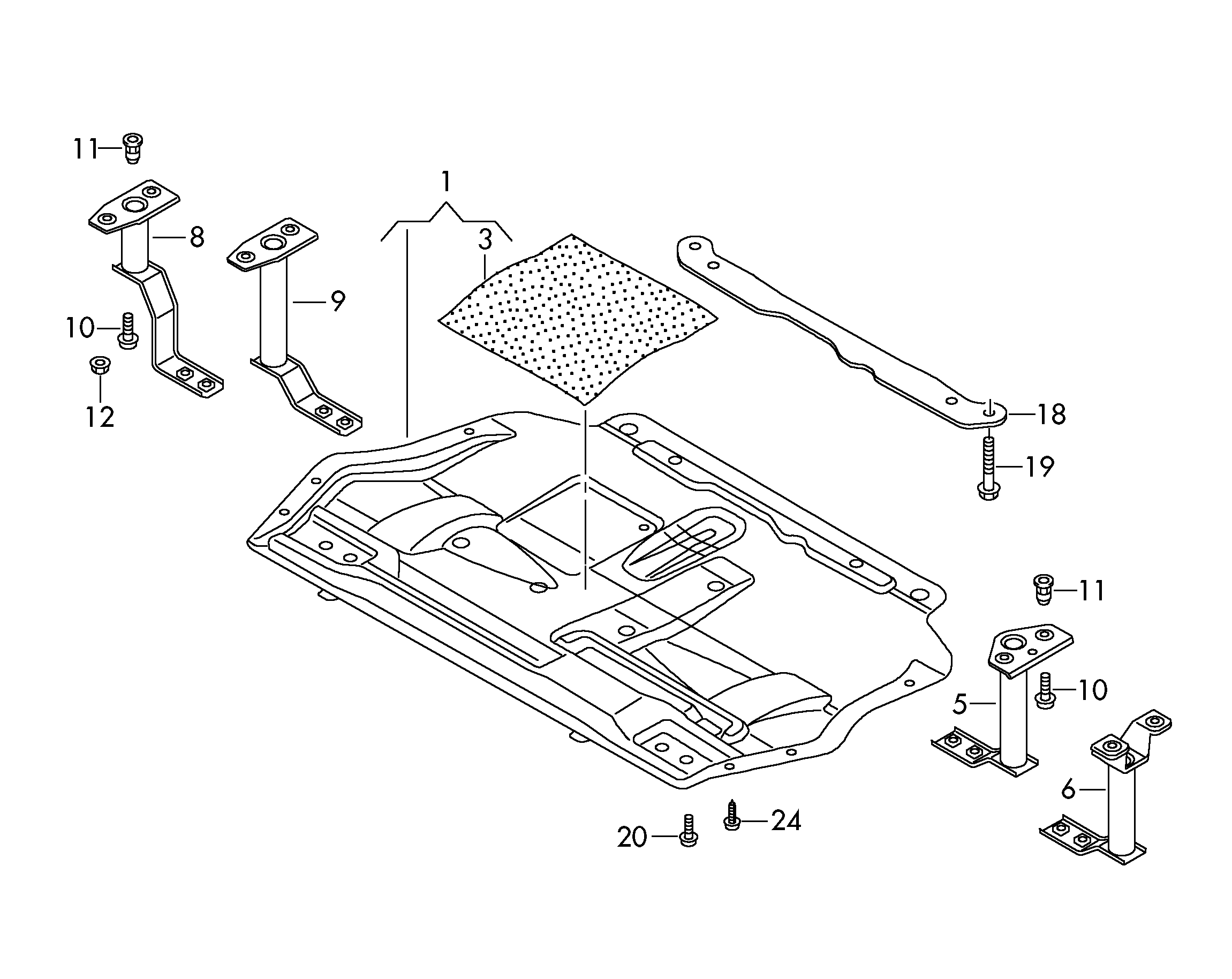

Scheme Engine/gearbox assy skid plate PR-1SB, 1SK Volkswagen Golf Plus 2012-2014 EUR
