Electrical parts for seat and backrest heating, seat occupied recognition Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0963555E	Heater element-seat	999	Next
1	7N0963555A	Heater element-seat	999	Next
1	7N0963555A	Heater element-seat	999	Next
1	7N0963555A	Heater element-seat	999	Next
1	5N0963557G	Backrest heater element	999	Next
1	5N0963557G	Backrest heater element	999	Next
1	5N0963557H	Backrest heater element	999	Next
1	7N0963557B	Backrest heater element	999	Next
1	7N0963557C	Backrest heater element	999	Next
1	7N0963557B	Backrest heater element	999	Next
1	7N0963557C	Backrest heater element	999	Next
1	1J0973119	Flat contact housing with contact locking mechanism	999	Next
1	3B0972722	Flat contact housing	999	Next
1	5K0959772	Control unit for seat heating	999	Next
1	5K0959772A	Control unit for seat heating	999	Next
1	5K0963553	Inlay for seat occupied sensor	999	Next
1	3AA963553B	Inlay for seat occupied sensor	999	Next
1		Seat padding with control unit	999	Next
1	1T0973119	Flat contact housing with contact locking mechanism	999	Next

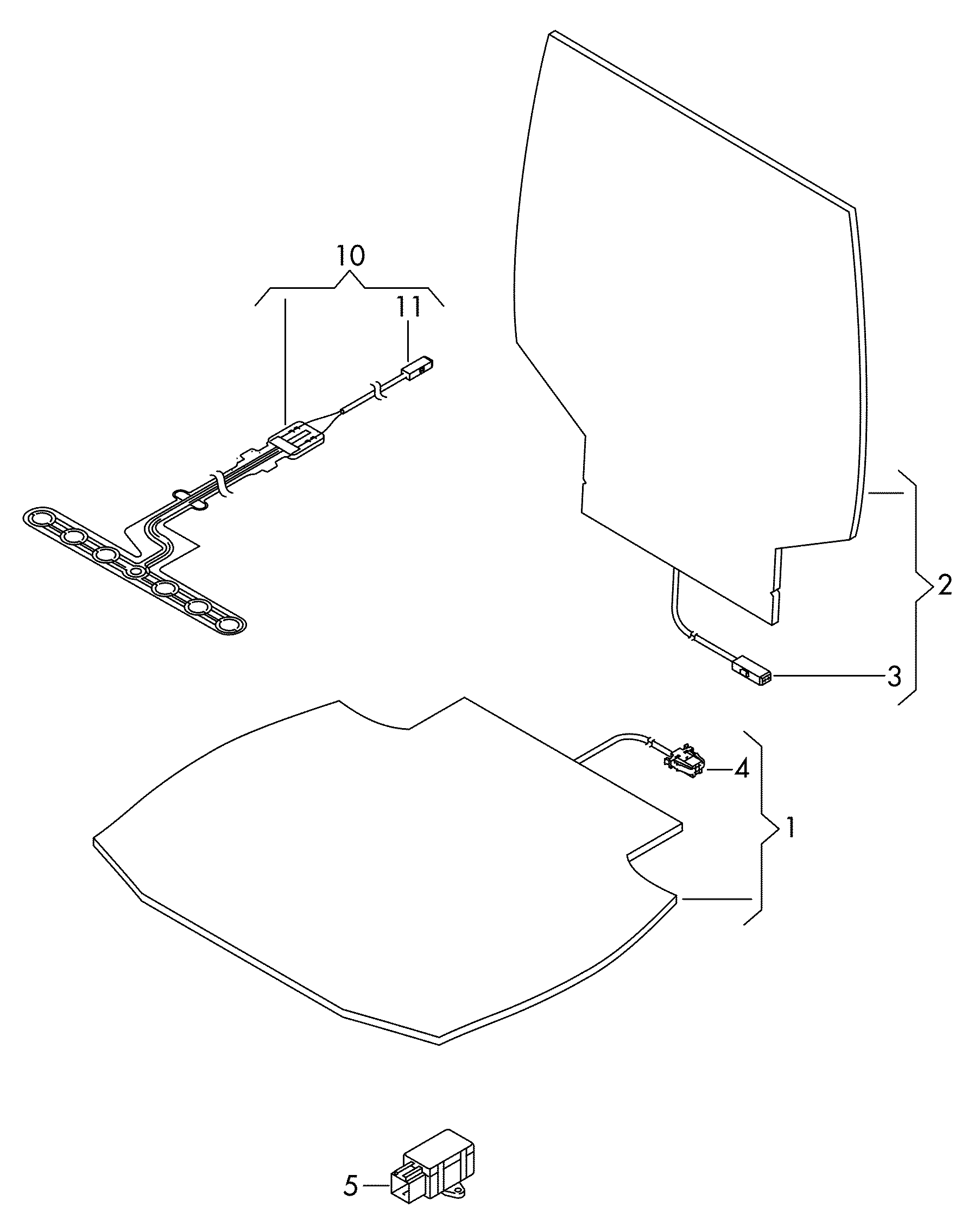

Scheme Electrical parts for seat and backrest heating, seat occupied recognition Volkswagen Tiguan 2010-2017 EUR
