Electrical parts for seat and backrest heating, inlay for seat occupied, sensor, blower for seat front Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1		Heater element-seat	999	Next
2		Backrest heater element	999	Next
4		Heater element-seat	999	Next
5		Backrest heater element	999	Next
5		Backrest heater element	999	Next
7, 8		Heater element-seat bolster no replacement part included in position: 4	999	Next
10		Backrest bolster heater element no replacement part included in position: 5	999	Next
10	3B0972722	Flat contact housing	999	Next
20	1K0959772	Control unit for seat heating	999	Next
30	3B0972722	Flat contact housing	999	Next
31		Flat contact housing not for this model	999	Next
32		Bracket for connector housing not for this model	999	Next
33	3D0971838E	Cable tie with terminal socket 4,6X200	999	Next
34	3D0973332	Flat contact housing with contact locking mechanism backrest bolster heater element	999	Next
35	1C0973119B	Flat contact housing	999	Next
36	1J0973119	Flat contact housing with contact locking mechanism backrest heater element	999	Next
37		Cable ties with bracket not for this model	999	Next
38	3D0973332	Flat contact housing with contact locking mechanism	999	Next
39	1C0973119B	Flat contact housing	999	Next
40	1K8963553	Inlay for seat occupied sensor alternative installation: 3AA 963 553 A	999	Next
40	3AA963553A	Inlay for seat occupied sensor alternative installation: 1K8 963 553	999	Next
41	1T0973119	Flat contact housing with contact locking mechanism	999	Next
42	3D0971838N	Cable ties 4,5X200	999	Next
43, 44		Bungs not for this model	999	Next
50	3C8963345D	Blower for seat	999	Next
51	3B0972722	Flat contact housing	999	Next

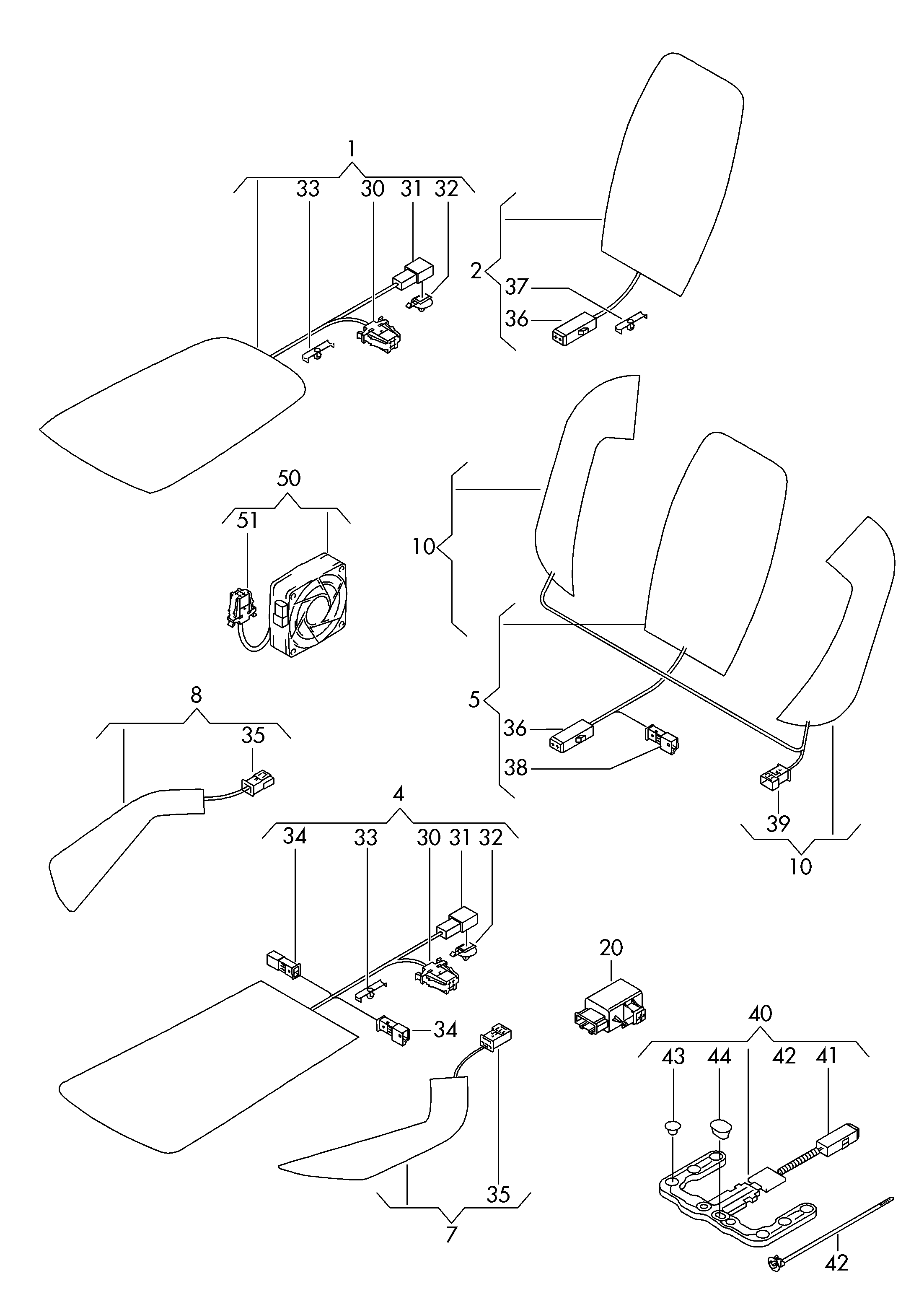

Scheme Electrical parts for seat and backrest heating, inlay for seat occupied, sensor, blower for seat front Volkswagen Passat CC Coupe 2009-2012 EUR
