Electric vacuum pump, for brake, vacuum hoses for, brake servo BSE, BSF, CAXA, +PR-0EG Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K2612041K	Vacuum pipe	999	Next
2	1K0612041FE	Vacuum pipe with non-return valve	999	Next
3		Vacuum pipe not for this model	999	Next
4	1K0612041BJ	Vacuum pipe with non-return valve	999	Next
5	036906051G	Pressure sensor	999	Next
8	N10445001	Clip 7,8X12	999	Next
8	4A0820199	Double cable tie 7X213/140MM	999	Next
9	4A0612797	Clip	999	Next
15	1J0612181D	Electric vacuum pump for brake	999	Next
16		Retainer for vacuum pump not for this model	999	Next
17	1K0612391P	Retainer for vacuum pump	999	Next
18	1K0612391Q	Adapter	999	Next
18	1K0612391S	Adapter	999	Next
19	811971848B	Retaining clip	999	Next
20	WHT005227	Oval hexagon socket head bolt M6X12	999	Next
21	N10675602	Hex collared bolt M8X35	999	Next
22	N01953310	Hex collared bolt M8X20	999	Next
23		Cover not for this model	999	Next
24		Hexagon bolt not for this model	999	Next
25	1J0973733	Flat contact housing	999	Next
26	1J0973704	Flat contact housing with contact locking mechanism	999	Next

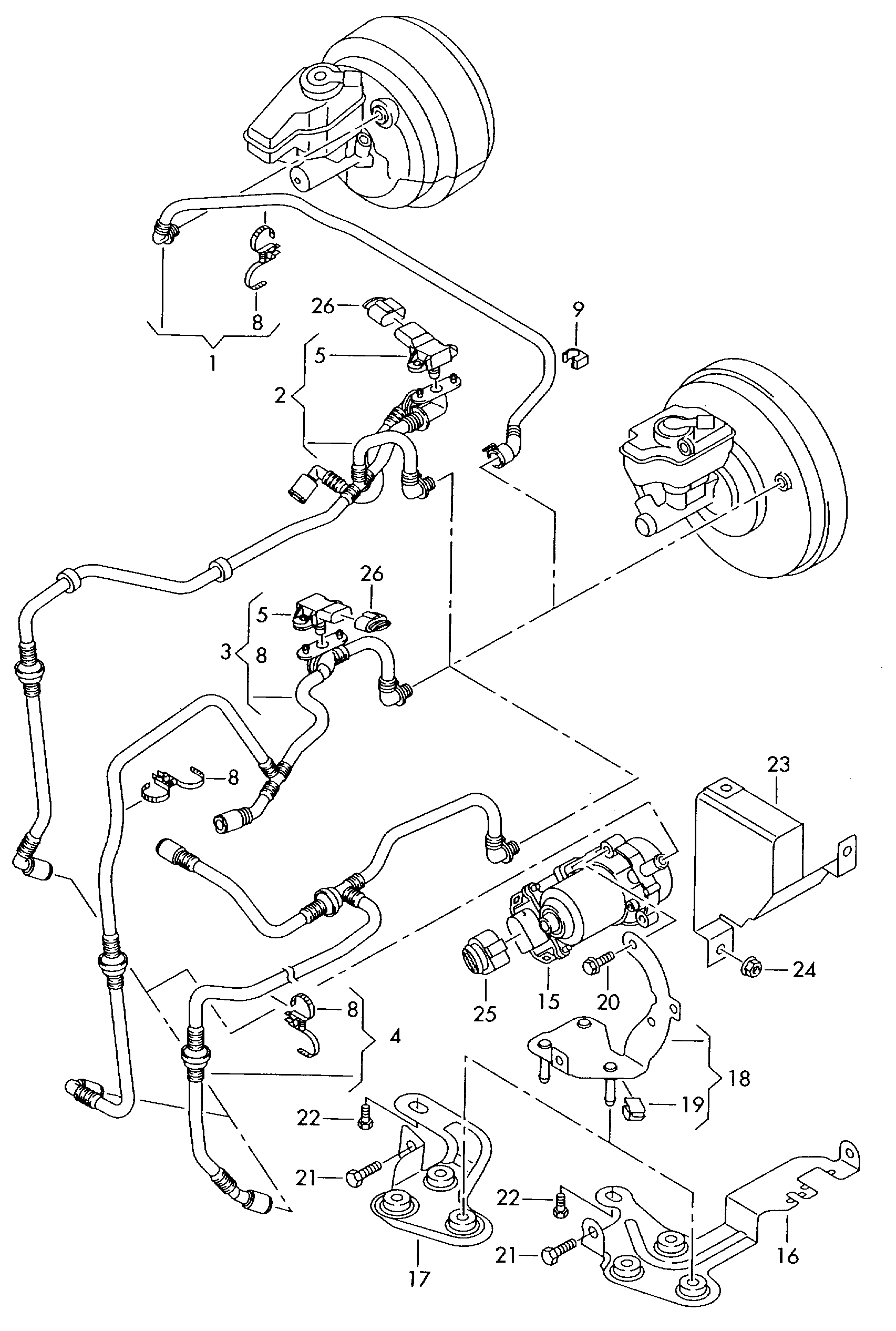

Scheme Electric vacuum pump, for brake, vacuum hoses for, brake servo BSE, BSF, CAXA, +PR-0EG Volkswagen Golf Plus 2012-2014 EUR
