Electric parts for seat and backrest adjustment Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
3	8K0959111	Seat adjustment motor for height adjustment	999	Next
3	8K0959112	Seat adjustment motor for height adjustment	999	Next
4	8K0959761	Seat adjustment motor for rake adjustment	999	Next
4	8K0959762	Seat adjustment motor for rake adjustment	999	Next
5	5N0959761A	Motor for backrest adjustment	999	Next
5	5N0959762A	Motor for backrest adjustment	999	Next
6		Lumbar support with adjustment motor	999	Next
7	3B0959743	Flat contact housing with contact locking mechanism	999	Next
8	8T0898173	Sundry parts set motor for backrest adjustment	999	Next

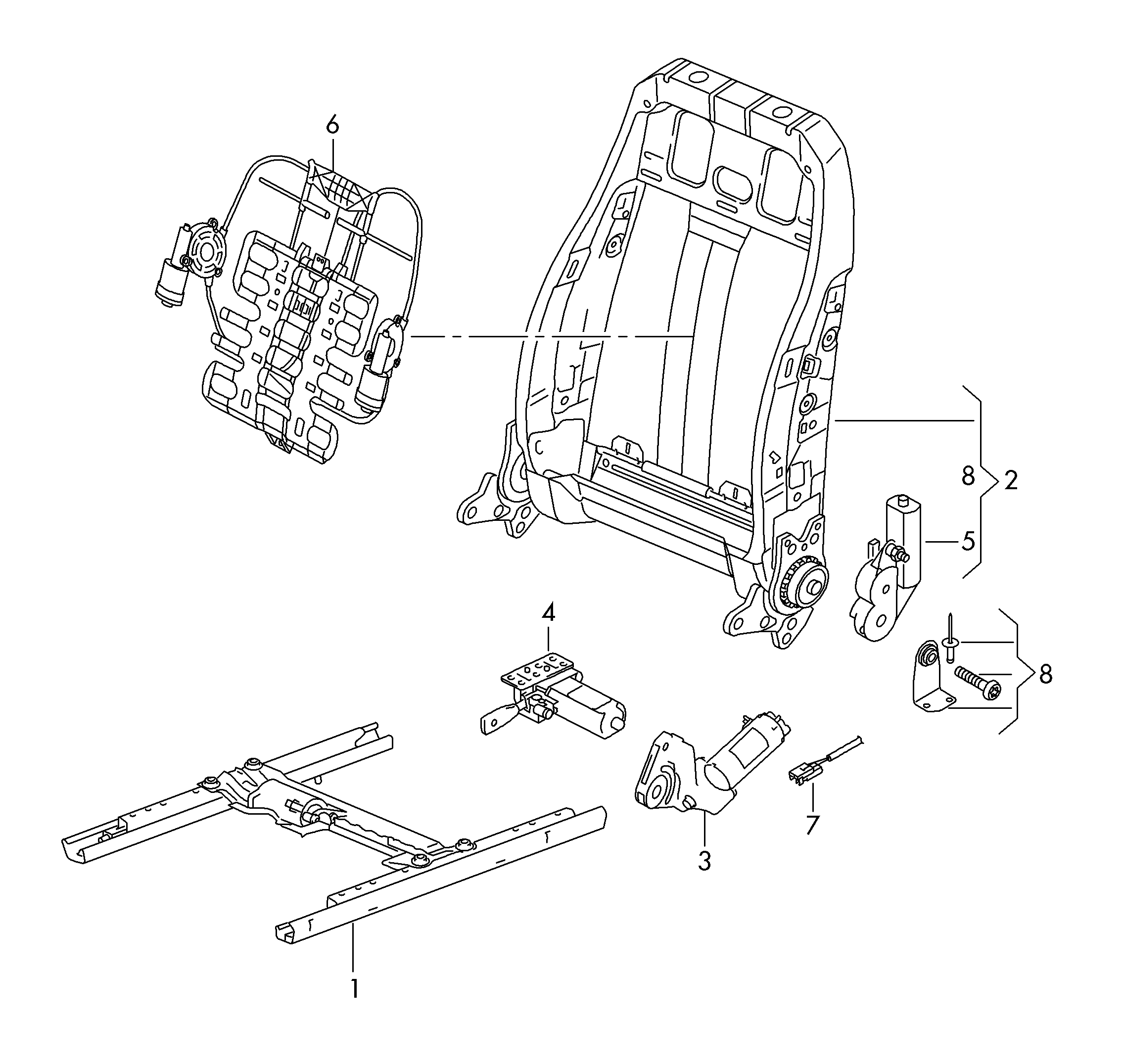

Scheme Electric parts for seat and backrest adjustment Volkswagen Passat CC Coupe 2009-2012 EUR
