E box, potential distributor Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0937125A	E box if required use also item: 10	999	Next
1	4H0951253	Relay relay location/code no.: to be used for code no.: 1/644 100	999	Next
1	4H0951253	Relay additional coolant pump relay location/code no.: to be used for code no.: 1/644 100	999	Next
1	3C0971249	Jumper relay location: 1	999	Next
1	4H0951253	Relay relay location/code no.: to be used for code no.: KL.30 2/644 100	999	Next
1	1K0907361B	Bracket - relay plate/fuse box	999	Next
1	1K0937132F	Cover	999	Next
1	1K0937700B	Flat contact housing	999	Next
1	3C0971848E	Cable holder	999	Next
1	N 01713111	Flat fuse 19/2x5	999	Next
1	N 01713112	Flat fuse 19/2x5	999	Next
1	N 01713114	Flat fuse 19/2x5	999	Next
1	N 01713116	Flat fuse 19/2x5	999	Next
1	N 01713120	Flat fuse 19/2x5 40A-ORANGE-	999	Next
1	N 01713113	Flat fuse 19/2x5	999	Next
1	N 01713125	Flat fuse 19/2x5	999	Next
1	N 10118105	Hexagon collar nut self-locking M5	999	Next
1	N 10251901	Flat fuse 29/2x8	999	Next
1	N 10251903	Flat fuse 29/2x8	999	Next
1	N 10251904	Flat fuse 29/2x8	999	Next
1	5N0937629A	Multi-fuse	999	Next
1	3C0937629D	Multi-fuse	999	Next
1	WHT000906	Shouldered bolt M5X7,5X13,5	999	Next
1	04L907281	Control unit for glow plug	999	Next
1	1K0937540C	Retainer for relay	999	Next
1	N 90767602	Hexagon socket head panel bolt 6X12	999	Next
1	N 01508210	Hexagon collar nut M6	999	Next
1	N 01713123	Flat fuse 19/2x5	999	Next
1	N 01713124	Flat fuse 19/2x5	999	Next

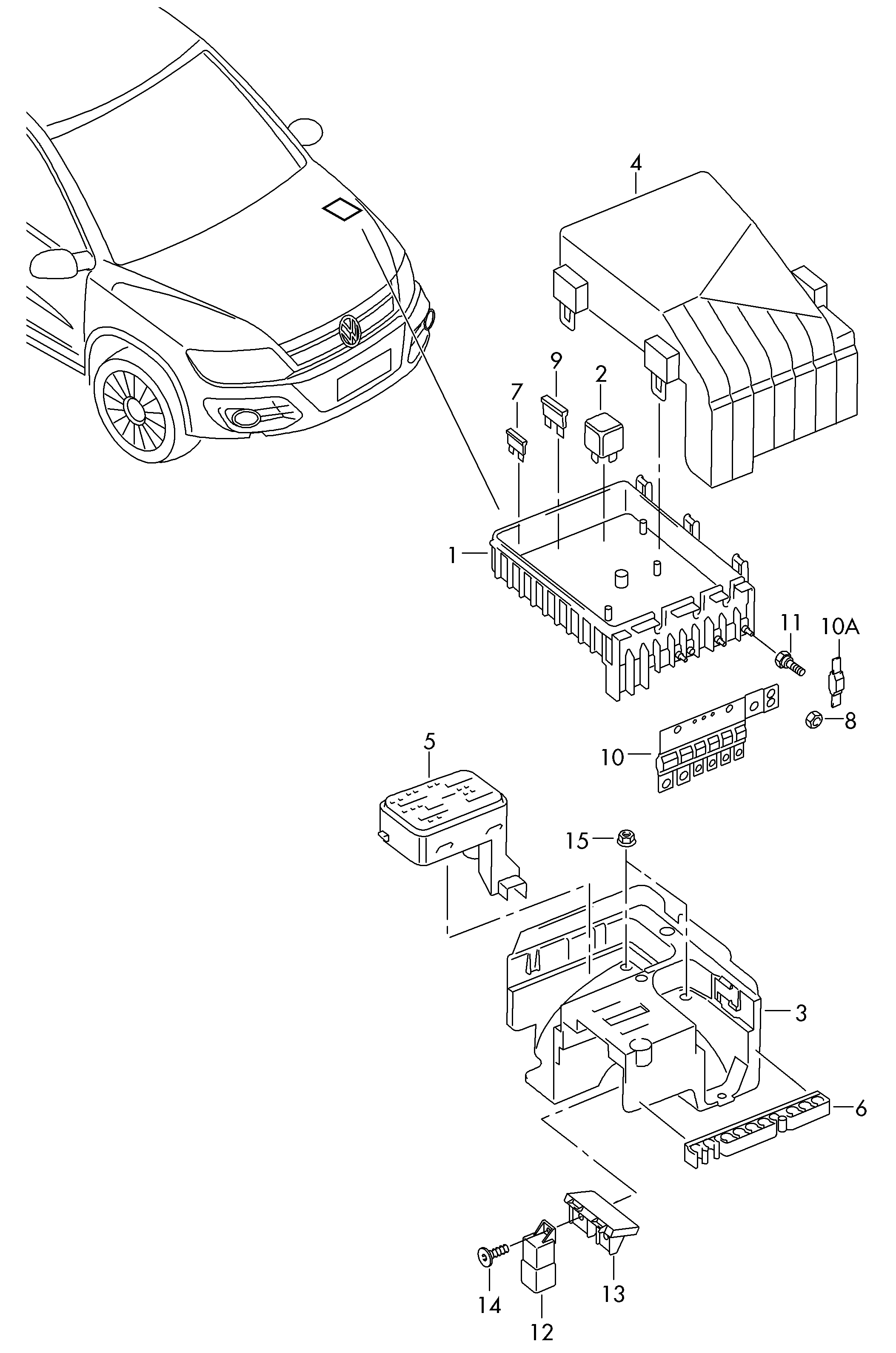

Scheme E box, potential distributor Volkswagen Tiguan 2010-2017 EUR
