Drive shaft rear 4motion Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0501203D	Drive shaft with constant velocity joints	999	Next
1	1K0501203DX	Drive shaft with constant velocity joints	999	Next
1	1K0501204D	Drive shaft with constant velocity joints	999	Next
1	1K0501204DX	Drive shaft with constant velocity joints	999	Next
1	1K0501203F	Drive shaft with constant velocity joints	999	Next
1	1K0501203FX	Drive shaft with constant velocity joints	999	Next
1	1K0501204F	Drive shaft with constant velocity joints	999	Next
1	1K0501204FX	Drive shaft with constant velocity joints	999	Next
1	WHT005437	Dodecagonal head bolt	999	Next
1	WHT005437A	Dodecagonal head bolt	999	Next
1	1K0407357C	Spacer	999	Next
1	N 91108201	Socket head bolt with inner multipoint head M8X48	999	Next
1	8D0407309	Sealing plate	999	Next
1	113517279	Snap ring 24,5X2	999	Next
1	113501327A	Belleville spring (internal gears)	999	Next
1	N 90442501	Clamp 32X10X0,8	999	Next
1	N 90442501	Clamp 32X10X0,8	999	Next
1	N 10715301	Clamp 57,5X10X0,8	999	Next
1	113501327A	Belleville spring (internal gears)	999	Next
1	5N0407297	Securing ring 27,1X1,8	999	Next
1	1K0498103	Constant velocity joint with boot, attachment parts and grease	999	Next
1	1K0498103 X	Constant velocity joint with boot, attachment parts and grease	999	Next
1	1K0498201	Joint protective boot with assembly items and grease	999	Next
1	1K0598203	Joint protective boot with assembly items and grease	999	Next
1	1K0598099	Outer joint with assembly parts	999	Next
1	1K0598099 X	Outer joint with assembly parts	999	Next
1	8V0598099 X	Outer joint with assembly parts	999	Next
1	G 052738A2	Grease for universal joint 120G	999	Next
1	G 052133A3	High temperature grease 120G	999	Next
1	D 454300A2	Sealant 125G	999	Next

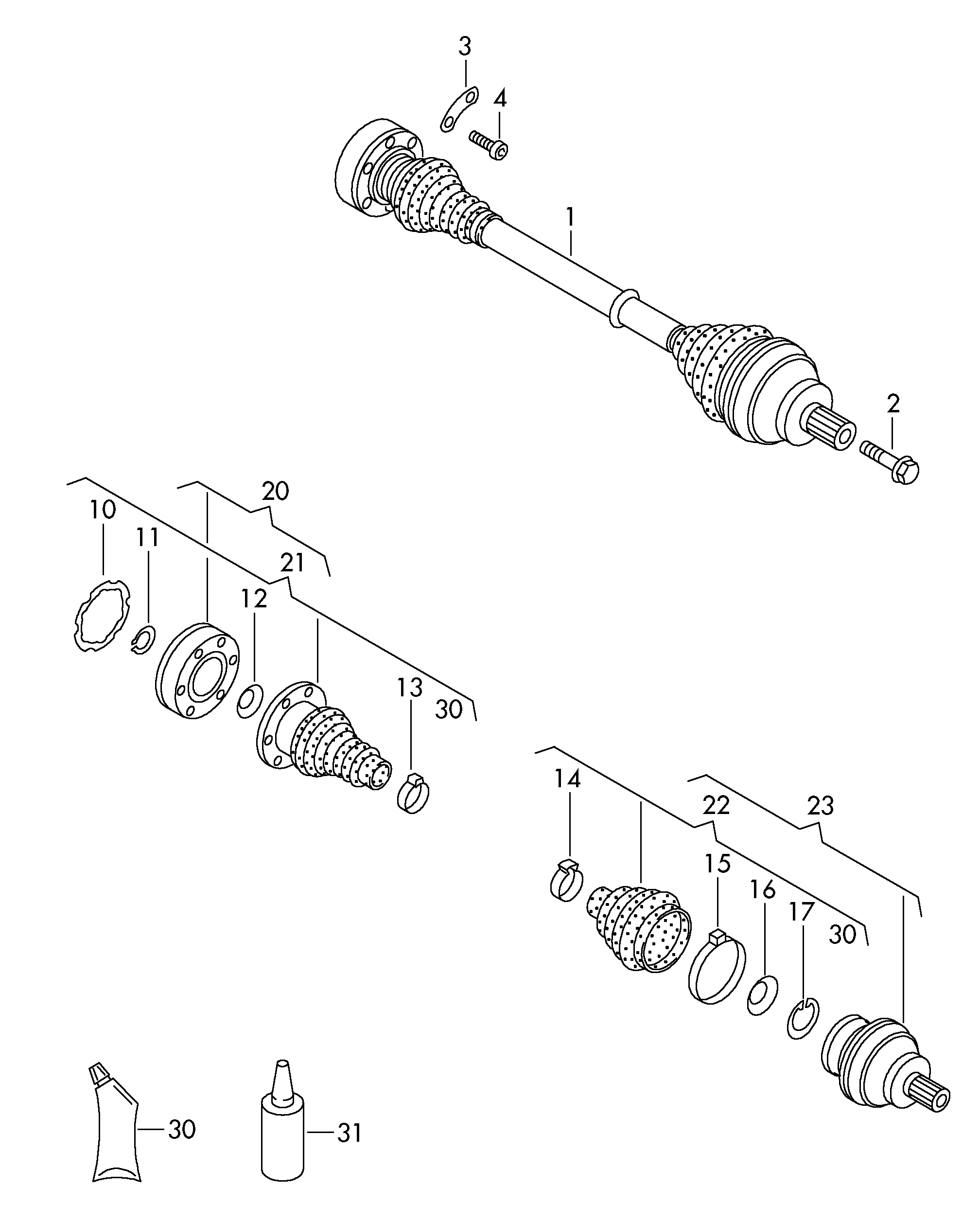

Scheme Drive shaft rear 4motion Volkswagen Tiguan 2010-2017 EUR
