Drive shaft for 7-speed dual clutch gearbox front CBZA, CBZB Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0407271LA	Drive shaft with constant velocity joints	999	Next
1	1K0407763CX	Drive shaft with constant velocity joints	999	Next
1	1K0407272QT	Drive shaft with constant velocity joints	999	Next
1	1K0407764JX	Drive shaft with constant velocity joints	999	Next
1	5Q0407272BN	Drive shaft with constant velocity joints	999	Next
1	5Q0407762X	Drive shaft with constant velocity joints	999	Next
2	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
3	1K0407357C	Spacer	999	Next
4	N91108201	Socket head bolt with inner multipoint head M8X48	999	Next
10	8D0407309	Sealing plate	999	Next
11	113517279	Snap ring 24,5X2	999	Next
12	113501327A	Belleville spring (internal gears)	999	Next
13	N90442501	Clamp 32X10X0,8	999	Next
14	N90442501	Clamp 32X10X0,8	999	Next
15	N10736201	Clamp 99X10X1	999	Next
16	5N0407297	Securing ring 27,1X1,8	999	Next
20	1K0498103	Constant velocity joint with boot, attachment parts and grease	999	Next
20	1K0498103X	Constant velocity joint with boot, attachment parts and grease	999	Next
21	1K0498201	Joint protective boot with assembly items and grease	999	Next
22	5M0498203	Joint protective boot with assembly items and grease	999	Next
23	5M0498099	Outer joint with assembly parts	999	Next
23	5M0498099X	Outer joint with assembly parts	999	Next
30	G052738A2	Grease for universal joint 120G	999	Next
30	G052133A3	High temperature grease 120G	999	Next
31	D454300A2	Sealant 125G	999	Next

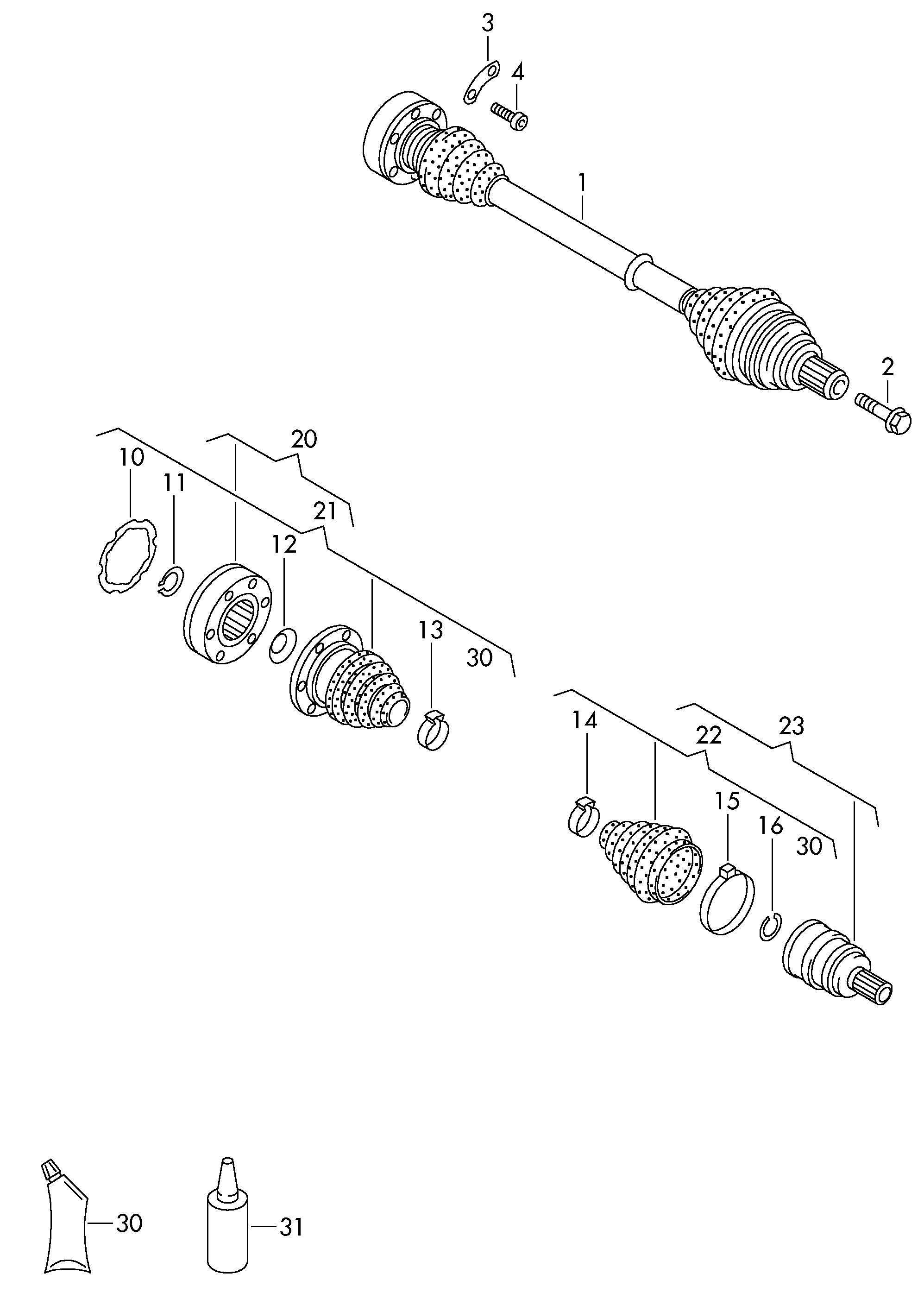

Scheme Drive shaft for 7-speed dual clutch gearbox front CBZA, CBZB Volkswagen Golf Plus 2012-2014 EUR
