Drive shaft for 7-speed dual clutch gearbox front BSE, BSF Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0407271DR	Drive shaft with constant velocity joints	999	Next
1	1K0407451KX	Drive shaft with constant velocity joints	999	Next
1	1K0407272KA	Drive shaft with constant velocity joint and balance weight on inner side	999	Next
1	1K0407454PX	Drive shaft with constant velocity joint and balance weight on inner side	999	Next
2	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
3	1K0407357C	Spacer	999	Next
4	N91108201	Socket head bolt with inner multipoint head M8X48	999	Next
5	1J0407721C	Heat shield plate	999	Next
6	N10170512	Hexagon bolt M10X20	999	Next
10	8D0407309	Sealing plate	999	Next
11	113517279	Snap ring 24,5X2	999	Next
12	113501327A	Belleville spring (internal gears)	999	Next
13	N90442501	Clamp 32X10X0,8	999	Next
14	N90442501	Clamp 32X10X0,8	999	Next
15	N90772401	Clamp 92,5X10X1	999	Next
16	321407287	Belleville spring 34X25X2,2	999	Next
17	321407295A	Thrust ring 25,1X6,95	999	Next
18	171407297C	Snap ring 25,1X2	999	Next
20	1K0498103	Constant velocity joint with boot, attachment parts and grease	999	Next
20	1K0498103X	Constant velocity joint with boot, attachment parts and grease	999	Next
21	1K0498201	Joint protective boot with assembly items and grease	999	Next
22	1K0498203	Joint protective boot with assembly items and grease	999	Next
23	1K0498099E	Outer joint with assembly parts	999	Next
23	1K0498099EX	Outer joint with assembly parts	999	Next
30	G052738A2	Grease for universal joint 120G	999	Next
30	G052133A3	High temperature grease 120G	999	Next
31	D454300A2	Sealant 125G	999	Next

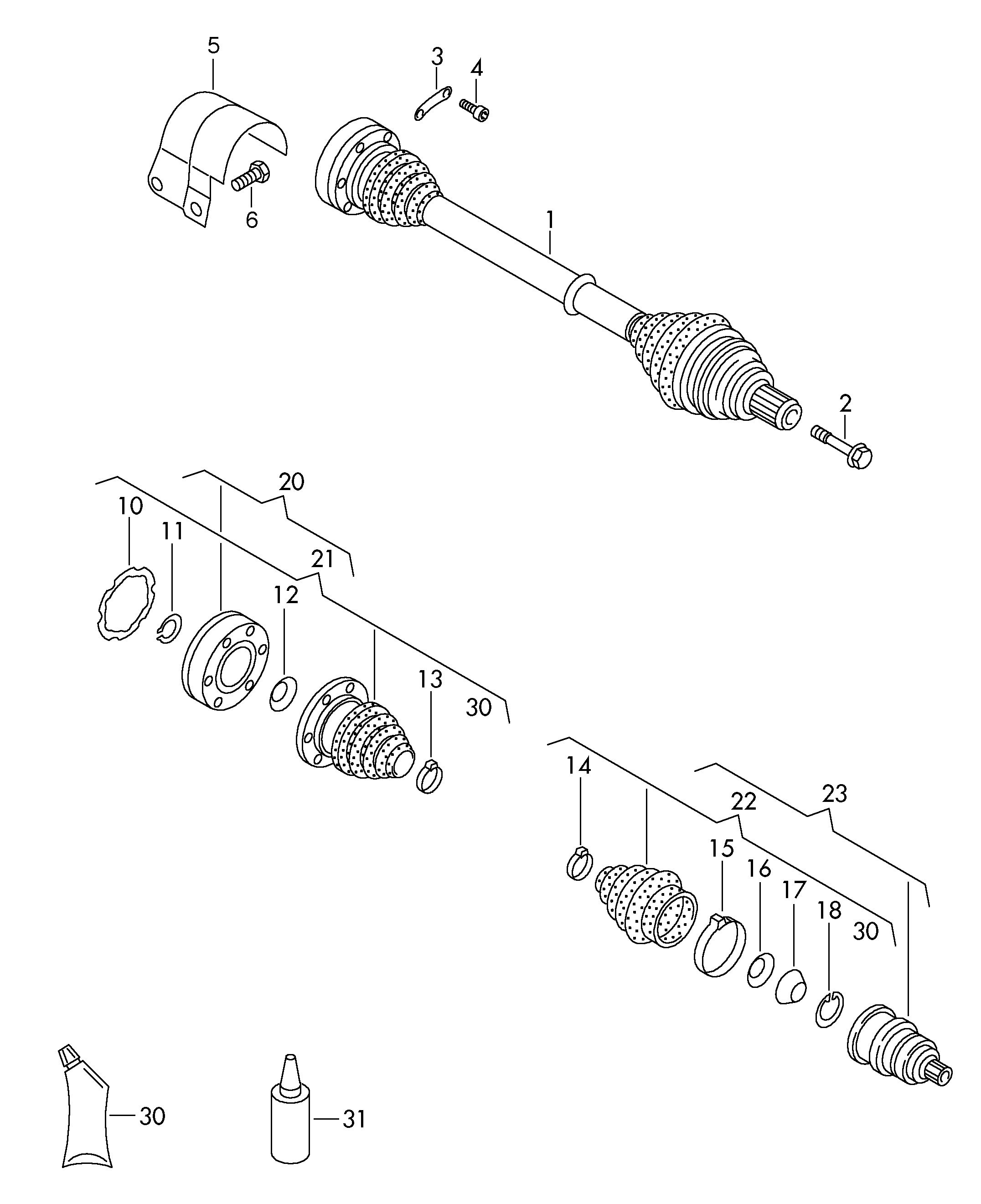

Scheme Drive shaft for 7-speed dual clutch gearbox front BSE, BSF Volkswagen Golf Plus 2012-2014 EUR
