Drive shaft, for 6-speed dual clutch, gearbox front frt.-wh.dr.+, CTHA, CTHD, CZDA Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0407271AJ	Drive shaft with constant velocity joints	999	Next
1	1K0407272RL	Drive shaft with constant velocity joints	999	Next
1	3AB407271	Drive shaft with constant velocity joints	999	Next
1	3C0407451FX	Drive shaft with constant velocity joints	999	Next
1	1K0407272TK	Drive shaft with constant velocity joints	999	Next
1	1K0407764MX	Drive shaft with constant velocity joints	999	Next
1	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
1	1K0407357D	Spacer	999	Next
1	N 90991102	Socket head bolt with inner multipoint head M10X52	999	Next
1	1J0407115H	End cap	999	Next
1	1K0407298A	Securing ring 28X1,5	999	Next
1	N 90947301	Clamp 75X10X1	999	Next
1	N 10609101	Clamp 34,7X10X0,8	999	Next
1	N 10609101	Clamp 34,7X10X0,8	999	Next
1	N 91023501	Clamp 104,5X10X1	999	Next
1	N 91092301	Securing ring 29,5	999	Next
1	1K0498103A	Constant velocity joint with boot, attachment parts and grease	999	Next
1	1K0498103AX	Constant velocity joint with boot, attachment parts and grease	999	Next
1	1K0498201A	Joint protective boot with assembly items and grease	999	Next
1	1K0498203D	Joint protective boot with assembly items and grease	999	Next
1	5N0498099B	Outer joint with assembly parts	999	Next
1	5N0498099BX	Outer joint with assembly parts	999	Next
1	G 052181A3	High temperature grease 120G	999	Next
1	G 060735A2	Universal grease stub shaft 50G	999	Next
1	D 185400A3	Locking fluid	999	Next

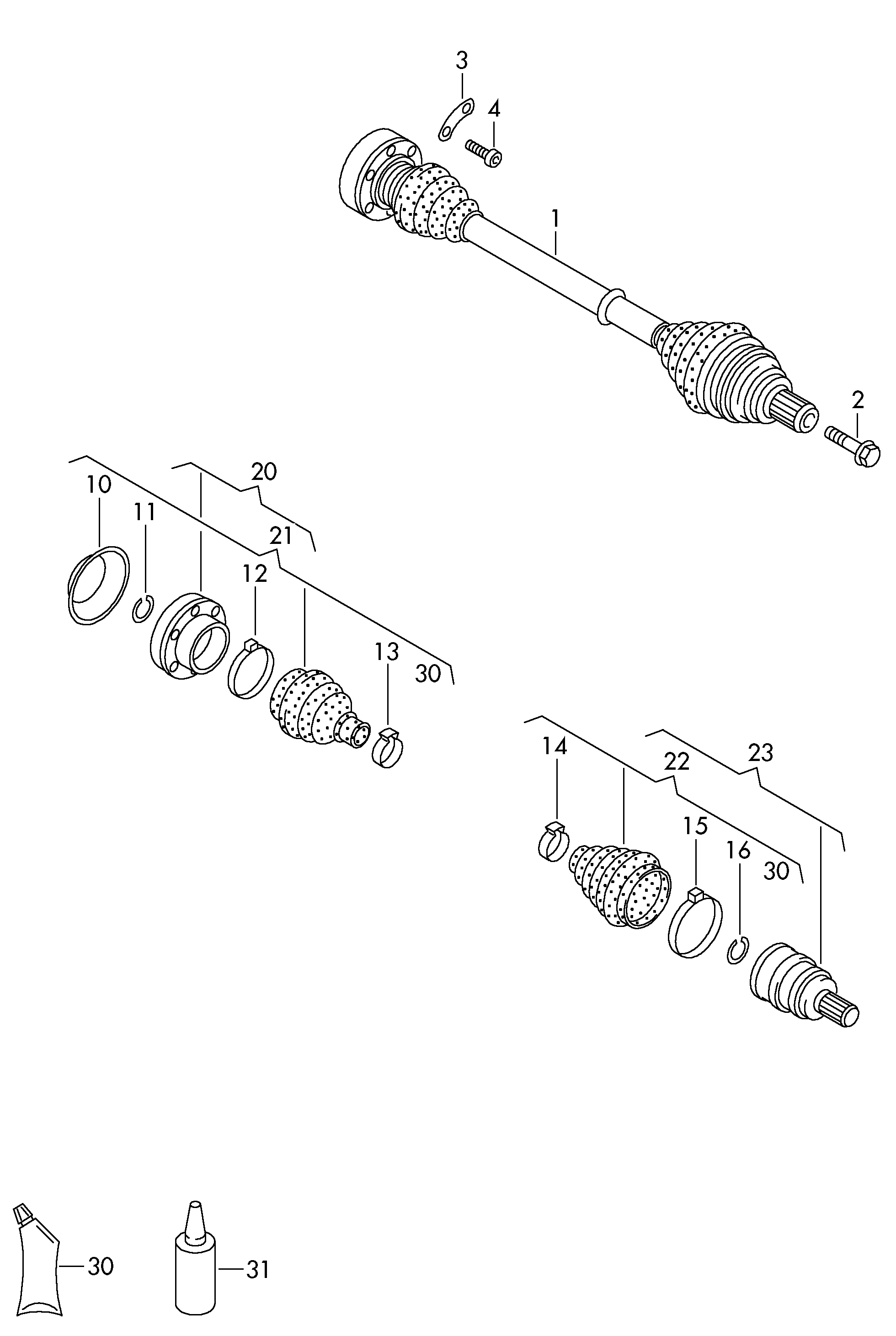

Scheme Drive shaft, for 6-speed dual clutch, gearbox front frt.-wh.dr.+, CTHA, CTHD, CZDA Volkswagen Tiguan 2010-2017 EUR
