Drive shaft for 6-speed dual clutch gearbox front frt.-wh.dr.+, CBAA, CBAB, CBAC, CFFA, CFFB Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0407271BF	Drive shaft with constant velocity joints	999	Next
1	1K0407271KA	Drive shaft with constant velocity joints	999	Next
1	1K0407271LG	Drive shaft with constant velocity joints	999	Next
1	1K0407271NT	Drive shaft with constant velocity joints	999	Next
1	1K0407451QX	Drive shaft with constant velocity joints, before 31.12.2008	999	Next
1	1K0407761QX	Drive shaft with constant velocity joints, D 01.01.2009 and after	999	Next
1	1K0407272ER	Drive shaft with constant velocity joints	999	Next
1	1K0407272QE	Drive shaft with constant velocity joints	999	Next
1	1K0407272RG	Drive shaft with constant velocity joints	999	Next
1	1K0407764BX	Drive shaft with constant velocity joints	999	Next
1	1K0407272TQ	Drive shaft with constant velocity joints	999	Next
1	1K0407454HX	Drive shaft with constant velocity joints, before 31.12.2008	999	Next
1	1K0407764PX	Drive shaft with constant velocity joints, D 01.01.2009 and after	999	Next
2	WHT002795	Dodecagonal head bolt M16X1,5X70	999	Next
2	N91040601	Hexagon head bolt (combi) M16X1,5X80X61	999	Next
2	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
3	N90991002	Socket head bolt with inner multipoint head M10X23	999	Next
4	1K0407721C	Heat shield plate	999	Next
4	7N0407721	Heat shield plate	999	Next
4	1K0407721A	Heat shield plate	999	Next
5	N10170512	Hexagon bolt M10X20	999	Next
10	1K0407413A	Adapter joint boot	999	Next
11	N90834501	Securing ring 25,4X1,2	999	Next
12	N91022501	Clamp, before 31.12.2008 94,5X9X0,8	999	Next
12	N10672101	Clamp, D 01.01.2009 and after 94X10X1	999	Next
13	N10207701	Clamp, before 31.12.2008 34,6X7X0,6	999	Next
13	N10609101	Clamp, D 01.01.2009 and after 34,7X10X0,8	999	Next
14	N10609101	Clamp 34,7X10X0,8	999	Next
15	N90630701	Clamp 102,5X10X1	999	Next
16	1J0407287	Belleville spring	999	Next
17	1J0407295	Thrust ring 29,7X12,5	999	Next
18	1J0407297	Securing ring	999	Next
20	1K0498103E	Constant velocity joint with boot, attachment parts and grease, before 31.12.2008	999	Next
20	1K0498103EX	Constant velocity joint with boot, attachment parts and grease, before 31.12.2008	999	Next
20	3C0498103F	Constant velocity joint with boot, attachment parts and grease, D 01.01.2009 and after 1K0 407 413 A	999	Next
20	3C0498103FX	Constant velocity joint with boot, attachment parts and grease, D 01.01.2009 and after 1K0 407 413 A	999	Next
21	1K0498201D	Joint protective boot with assembly items and grease, before 31.12.2008	999	Next
21	3C0498201A	Joint protective boot with assembly items and grease, D 01.01.2009 and after 1K0 407 413 A	999	Next
22	1K0498203A	Joint protective boot with assembly items and grease	999	Next
23	1K0498099B	Outer joint with assembly parts	999	Next
23	1K0498099BX	Outer joint with assembly parts	999	Next
30	G052738A2	Grease for universal joint 120G	999	Next
30	G052186A3	Grease for triple roller joint 140G	999	Next

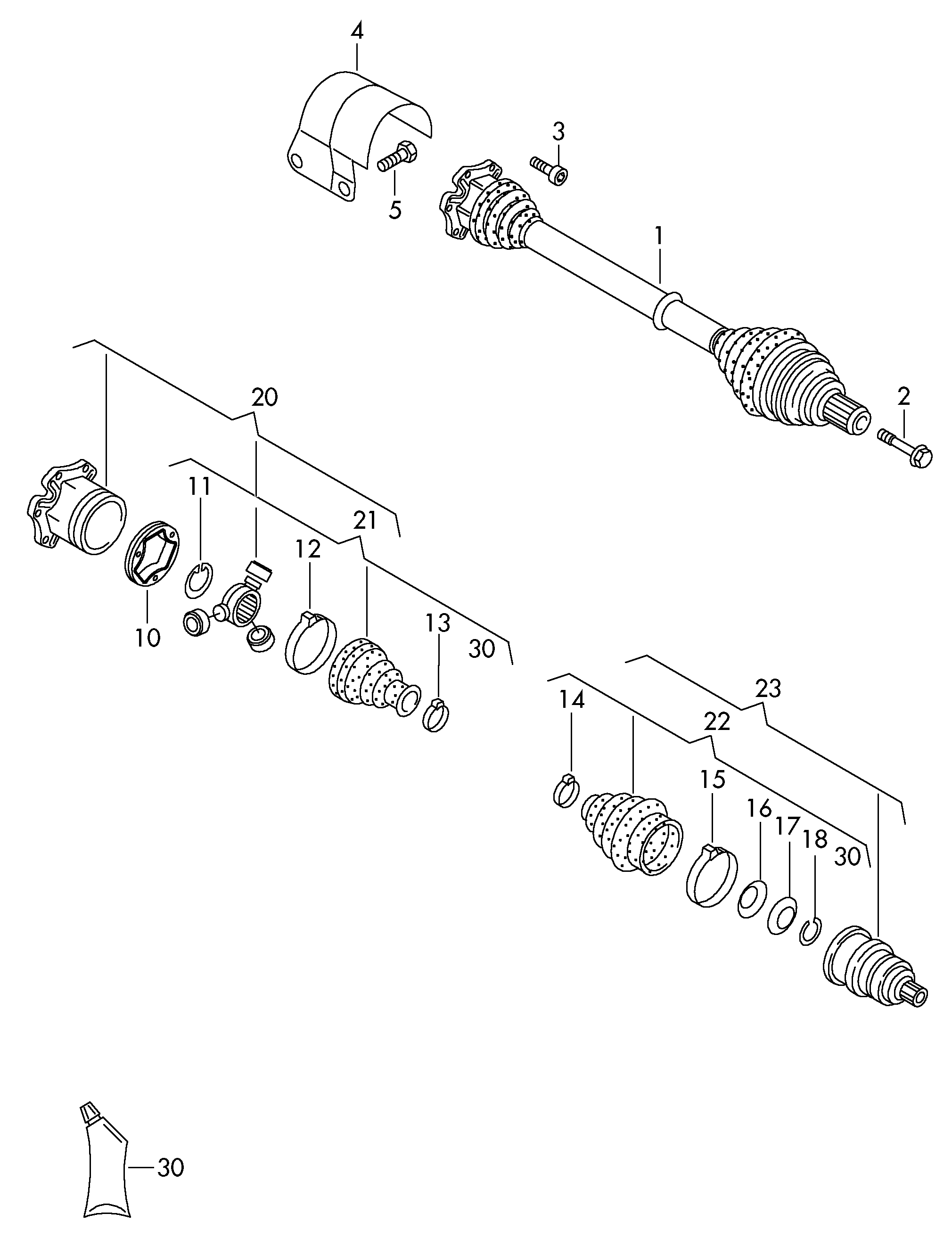

Scheme Drive shaft for 6-speed dual clutch gearbox front frt.-wh.dr.+, CBAA, CBAB, CBAC, CFFA, CFFB Volkswagen Passat CC Coupe 2009-2012 EUR
