Drive shaft, for 6-speed automatic gearbox front frt.-wh.dr.+, CCTA Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0407761M	Drive shaft with constant velocity joints	999	Next
1	5N0407761MX	Drive shaft with constant velocity joints	999	Next
1	5N0407762Q	Drive shaft with constant velocity joints	999	Next
1	5N0407762QX	Drive shaft with constant velocity joints	999	Next
1	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
1	8N0407297	Securing ring 27X2,5	999	Next
1	1K0407413A	Adapter joint boot	999	Next
1	N 90834501	Securing ring 25,4X1,2	999	Next
1	N 10672101	Clamp 94X10X1	999	Next
1	N 10609101	Clamp 34,7X10X0,8	999	Next
1	N 10609101	Clamp 34,7X10X0,8	999	Next
1	N 91023501	Clamp 104,5X10X1	999	Next
1	N 91092301	Securing ring 29,5	999	Next
1	3C0498103G	Constant velocity joint with boot, attachment parts and grease also use: 1K0 407 413 A	999	Next
1	3C0498103GX	Constant velocity joint with boot, attachment parts and grease also use: 1K0 407 413 A	999	Next
1	3C0498201A	Joint protective boot with assembly items and grease also use: 1K0 407 413 A	999	Next
1	3Q0498201	Joint protective boot with assembly items and grease contains additional positions: 10	999	Next
1	1K0498203D	Joint protective boot with assembly items and grease	999	Next
1	5N0498099	Outer joint with assembly parts	999	Next
1	5N0498099 X	Outer joint with assembly parts	999	Next
1	G 052181A3	High temperature grease 120G	999	Next
1	G 060735A2	Universal grease stub shaft 50G	999	Next
1	D 185400A3	Locking fluid	999	Next

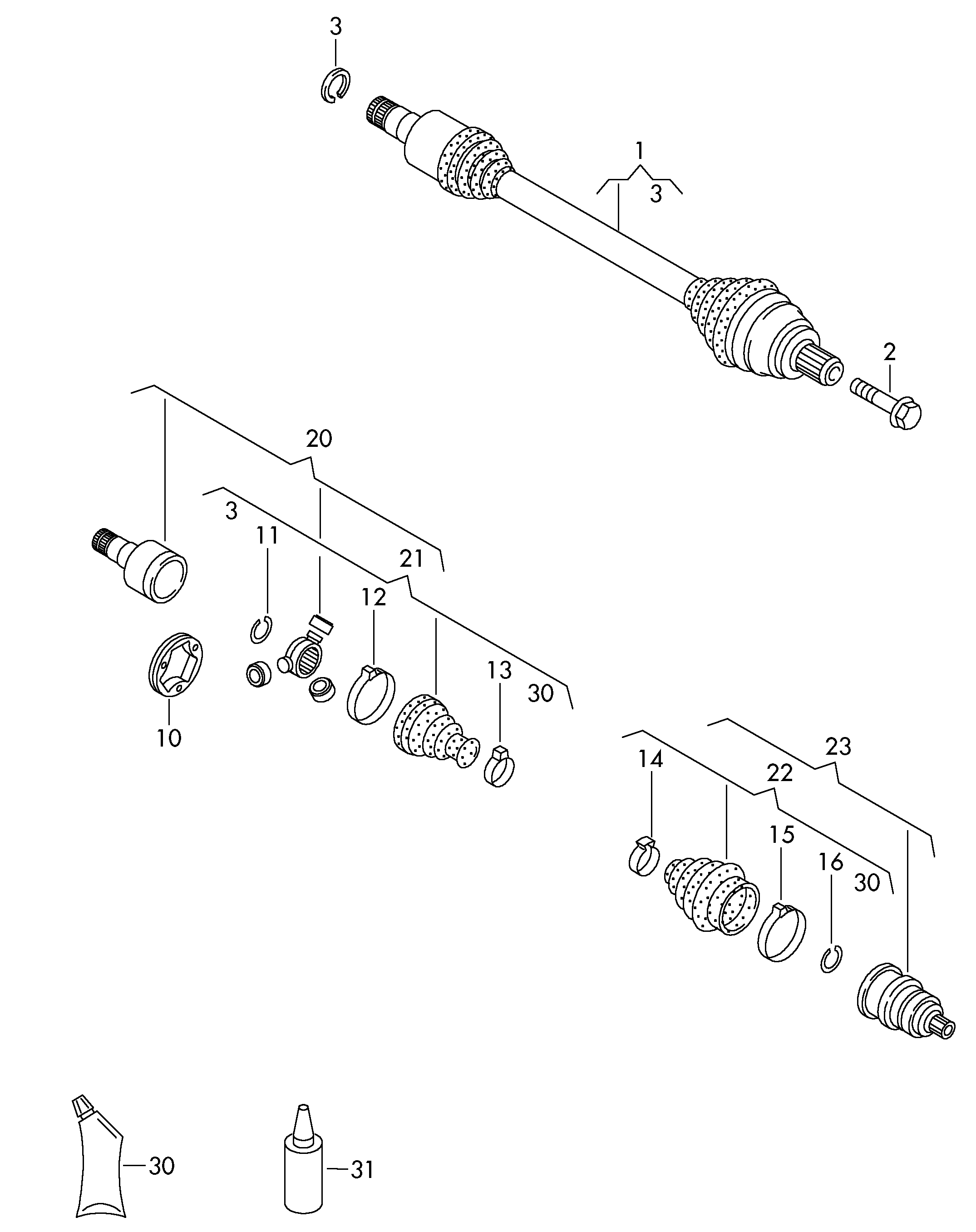

Scheme Drive shaft, for 6-speed automatic gearbox front frt.-wh.dr.+, CCTA Volkswagen Tiguan 2010-2017 EUR
