Drive shaft for 6-speed automatic gearbox front frt.-wh.dr.+, CAWB, D 01.01.2009 and after Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0407271AS	Drive shaft with constant velocity joints	999	Next
1	3C0407451HX	Drive shaft with constant velocity joints	999	Next
1	3C0407272BQ	Drive shaft with constant velocity joints	999	Next
1	3C0407452KX	Drive shaft with constant velocity joints	999	Next
2	WHT002795	Dodecagonal head bolt M16X1,5X70	999	Next
2	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
3	8N0407297	Securing ring 27X2,5	999	Next
4	1K0407721G	Heat shield plate	999	Next
5	N10170512	Hexagon bolt M10X20	999	Next
6	1K0407413A	Adapter joint boot	999	Next
10	N90834501	Securing ring 25,4X1,2	999	Next
11	N10672101	Clamp 94X10X1	999	Next
12	N10609101	Clamp 34,7X10X0,8	999	Next
13	N10609101	Clamp 34,7X10X0,8	999	Next
14	N90630701	Clamp 102,5X10X1	999	Next
15	1J0407287	Belleville spring 39X29,6X1,5	999	Next
16	1J0407295	Thrust ring 29,7X12,5	999	Next
17	1J0407297	Securing ring 30,6X1,8	999	Next
20	3C0498103G	Constant velocity joint with boot, attachment parts and grease	999	Next
20	3C0498103GX	Constant velocity joint with boot, attachment parts and grease	999	Next
21	3C0498201A	Joint protective boot with assembly items and grease	999	Next
22	1K0498203A	Joint protective boot with assembly items and grease	999	Next
23	1K0498099B	Outer joint with assembly parts	999	Next
23	1K0498099BX	Outer joint with assembly parts	999	Next
30	G052181A3	High temperature grease 120G	999	Next
30	G052186A3	Grease for triple roller joint 140G	999	Next
31	G060735A2	Universal grease stub shaft 50G	999	Next

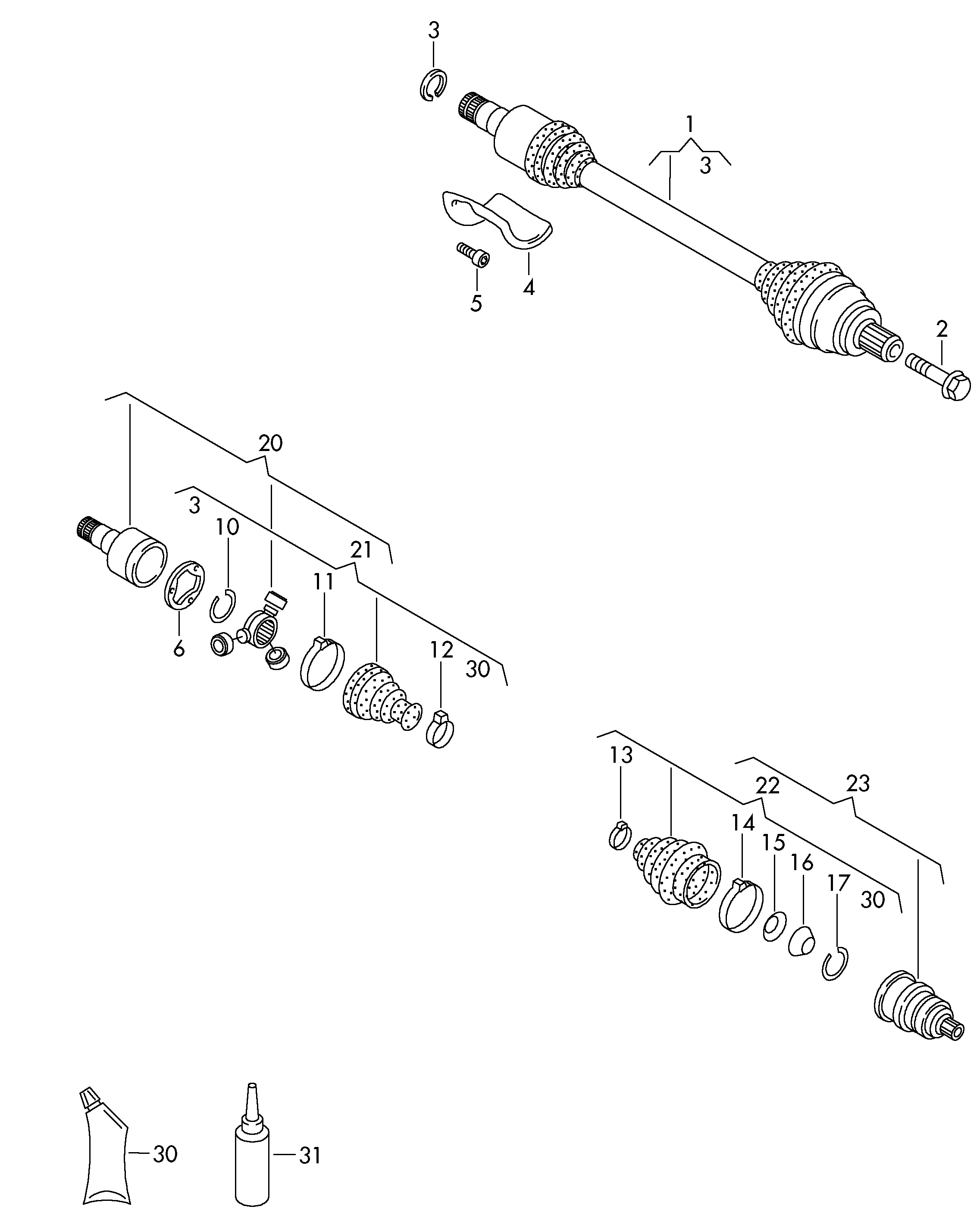

Scheme Drive shaft for 6-speed automatic gearbox front frt.-wh.dr.+, CAWB, D 01.01.2009 and after Volkswagen Passat CC Coupe 2009-2012 EUR
