Drive shaft for 6-speed automatic gearbox front frt.-wh.dr.+, BLV, CNNA Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0407271AA	Drive shaft with constant velocity joints	999	Next
1	3C0407451DX	Drive shaft with constant velocity joints	999	Next
1	3C0407272AL	Drive shaft with constant velocity joints	999	Next
1	3C0407452DX	Drive shaft with constant velocity joints	999	Next
2	WHT002795	Dodecagonal head bolt M16X1,5X70	999	Next
2	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
3	8N0407297	Securing ring 27X2,5	999	Next
4	3C0407720B	Heat shield plate	999	Next
5	N10170512	Hexagon bolt M10X20	999	Next
10	1K0407413A	Adapter joint boot	999	Next
11	N90834501	Securing ring 25,4X1,2	999	Next
12	N10672101	Clamp 94X10X1	999	Next
13	N10614801	Clamp 34X10X0,8	999	Next
14	N10609101	Clamp 34,7X10X0,8	999	Next
15	N91023501	Clamp 104,5X10X1	999	Next
16	N91092301	Securing ring 29,5	999	Next
20	3C0498103G	Constant velocity joint with boot, attachment parts and grease for drive shaft:	999	Next
20	3C0498103GX	Constant velocity joint with boot, attachment parts and grease for drive shaft:	999	Next
21	3C0498201A	Joint protective boot with assembly items and grease	999	Next
22	1K0498203D	Joint protective boot with assembly items and grease caution: before ordering, check the part number in the vehicle. for drive shaft: 3C0 407 271 AA 3C0 407 451 DX 3C0 407 272 AL 3C0 407 452 DX	999	Next
23	3C0498099	Outer joint with assembly parts caution: before ordering, check the part number in the vehicle. for drive shaft: 3C0 407 271 AA 3C0 407 451 DX 3C0 407 272 BF 3C0 407 452 DX	999	Next
23	3C0498099X	Outer joint with assembly parts caution: before ordering, check the part number in the vehicle. for drive shaft: 3C0 407 271 AA 3C0 407 451 DX 3C0 407 272 BF 3C0 407 452 DX	999	Next
30	G052738A4	Grease for universal joint 140G	999	Next
30	G052186A3	Grease for triple roller joint 140G	999	Next

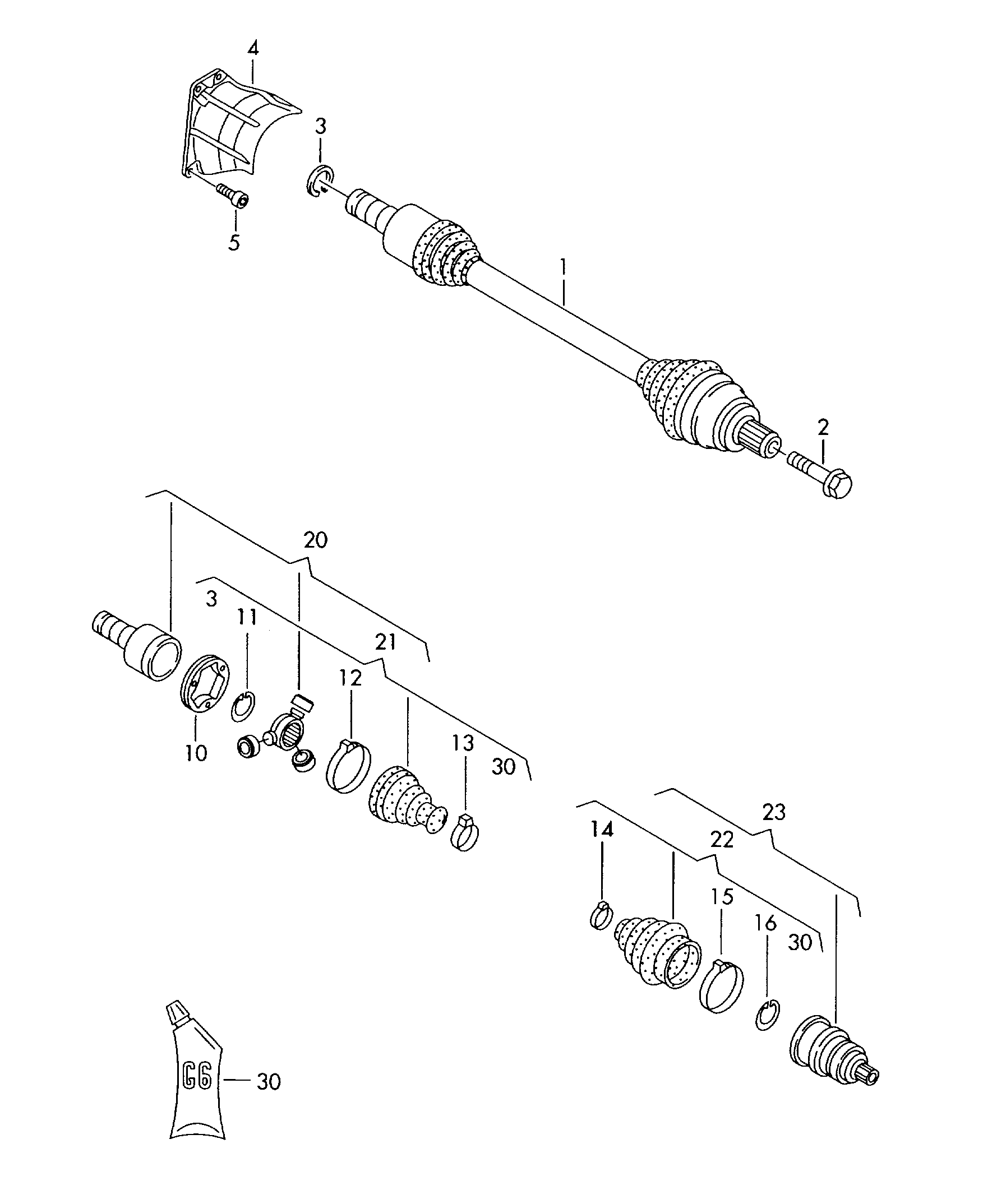

Scheme Drive shaft for 6-speed automatic gearbox front frt.-wh.dr.+, BLV, CNNA Volkswagen Passat CC Coupe 2009-2012 EUR
