Drive shaft, for 6-speed automatic gearbox front 4motion+, CLJA Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0407763C	Drive shaft with constant velocity joints	999	Next
1	5N0407763CX	Drive shaft with constant velocity joints	999	Next
1	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
1	8N0407297	Securing ring 27X2,5	999	Next
1	5N0407766	Drive shaft with constant velocity joints for vehicles with rim	999	Next
1	5N0407766 X	Drive shaft with constant velocity joints for vehicles with rim	999	Next
1	5N0407764T	Jointed shaft with universal joint and absorber weight for vehicles with rim	999	Next
1	5N0407764TX	Jointed shaft with universal joint and absorber weight for vehicles with rim	999	Next
1	5N0407284D	Protective cap	999	Next
1	1K0407413A	Adapter joint boot	999	Next
1	N 90834501	Securing ring 25,4X1,2	999	Next
1	N 10672101	Clamp 94X10X1	999	Next
1	N 10609101	Clamp 34,7X10X0,8	999	Next
1	N 10609101	Clamp 34,7X10X0,8	999	Next
1	N 90630701	Clamp 102,5X10X1	999	Next
1	1J0407287	Belleville spring	999	Next
1	1J0407295	Thrust ring 29,7X12,5	999	Next
1	1J0407297	Securing ring	999	Next
1	3C0498103G	Constant velocity joint with boot, attachment parts and grease also use: 1K0 407 413 A	999	Next
1	3C0498103GX	Constant velocity joint with boot, attachment parts and grease also use: 1K0 407 413 A	999	Next
1	3C0498201A	Joint protective boot with assembly items and grease also use: 1K0 407 413 A	999	Next
1	3Q0498201	Joint protective boot with assembly items and grease contains additional positions: 10	999	Next
1	1K0498203A	Joint protective boot with assembly items and grease	999	Next
1	1K0498099B	Outer joint with assembly parts	999	Next
1	1K0498099J	Outer joint with assembly parts	999	Next
1	1K0498099BX	Outer joint with assembly parts	999	Next
1	5N0498103A	Constant velocity joint with boot, attachment parts and grease also use: 1K0 407 413 A	999	Next
1	5N0498103AX	Constant velocity joint with boot, attachment parts and grease also use: 1K0 407 413 A	999	Next
1	G 052181A3	High temperature grease 120G	999	Next
1	G 052186A3	Grease for triple roller joint 140G	999	Next
1	G 060735A2	Universal grease stub shaft 50G	999	Next
1	D 185400A3	Locking fluid	999	Next

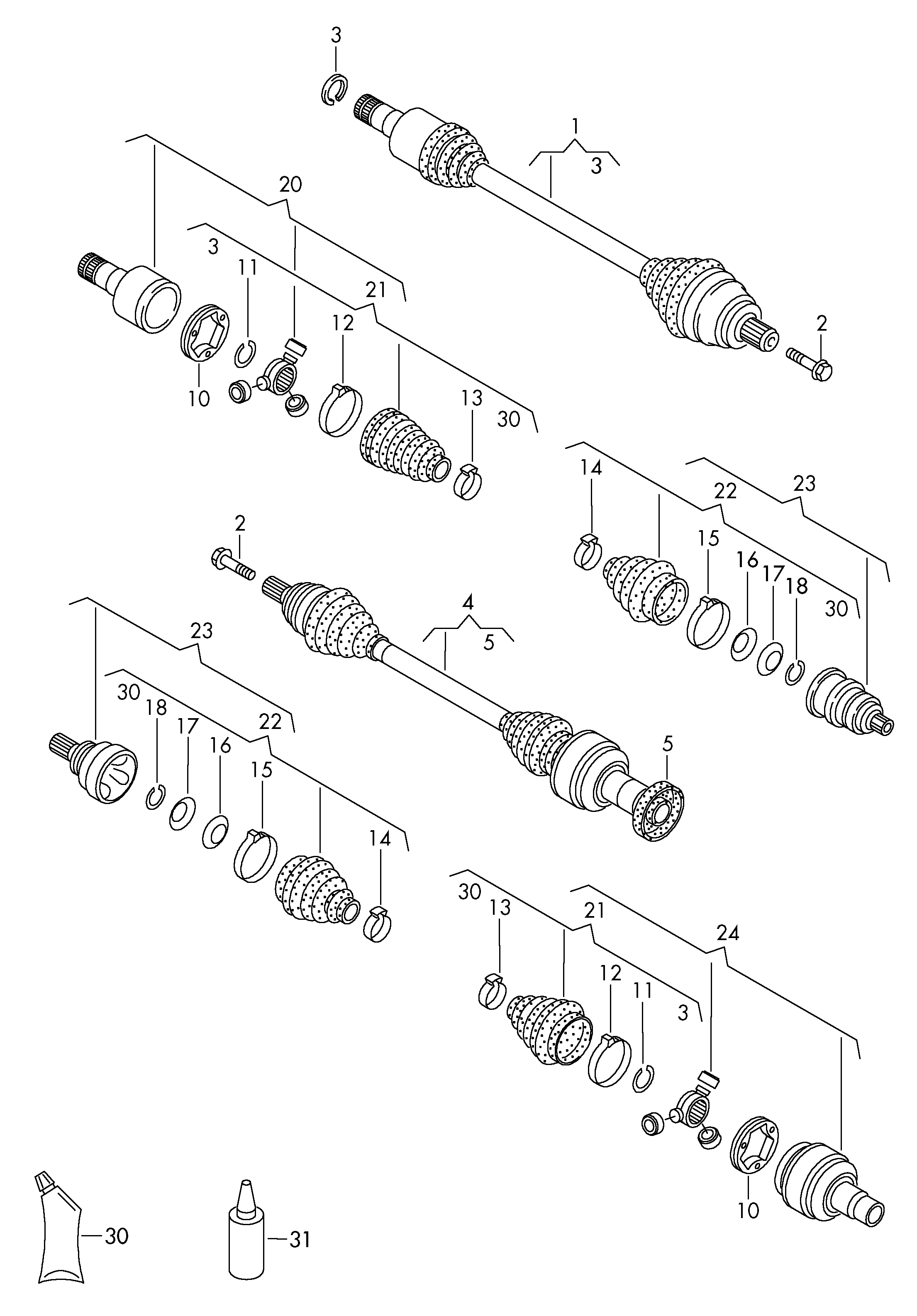

Scheme Drive shaft, for 6-speed automatic gearbox front 4motion+, CLJA Volkswagen Tiguan 2010-2017 EUR
