Drive shaft for 6 speed manual gearbox front frt.-wh.dr.+, CBBB, CFGB, CLLA Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0407271S	Drive shaft with constant velocity joints	999	Next
1	3C0407451AX	Drive shaft with constant velocity joints	999	Next
1	3C0407272AJ	Drive shaft with constant velocity joints	999	Next
1	3C0407452AX	Drive shaft with constant velocity joints	999	Next
2	WHT002795	Dodecagonal head bolt M16X1,5X70	999	Next
2	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
3	1K0407357D	Spacer	999	Next
4	N90991102	Socket head bolt with inner multipoint head M10X52	999	Next
5	1J0407721G	Heat shield plate	999	Next
6	N10170512	Hexagon bolt M10X20	999	Next
10	1J0407115H	End cap	999	Next
11	N0123741	Securing ring 28X1,5	999	Next
12	N10601501	Clamp 74,5X10X1	999	Next
13	N10609101	Clamp 34,7X10X0,8	999	Next
14	N10609101	Clamp 34,7X10X0,8	999	Next
15	N91023501	Clamp 104,5X10X1	999	Next
16	N91092301	Securing ring 29,5	999	Next
20	3C0498103	Constant velocity joint with boot, attachment parts and grease	999	Next
20	3C0498103X	Constant velocity joint with boot, attachment parts and grease	999	Next
21	3C0498201	Joint protective boot with assembly items and grease	999	Next
22	1K0498203D	Joint protective boot with assembly items and grease caution: before ordering, check the part number in the vehicle. for drive shaft: 3C0 407 271 S 3C0 407 272 AJ	999	Next
23	3C0498099	Outer joint with assembly parts caution: before ordering, check the part number in the vehicle. for drive shaft: 3C0 407 271 S 3C0 407 272 AJ	999	Next
23	3C0498099X	Outer joint with assembly parts caution: before ordering, check the part number in the vehicle. for drive shaft: 3C0 407 271 S 3C0 407 272 AJ	999	Next
30	G052738A4	Grease for universal joint 140G	999	Next
30	G052181A3	High temperature grease 120G	999	Next
31	D454300A2	Sealant 125G	999	Next

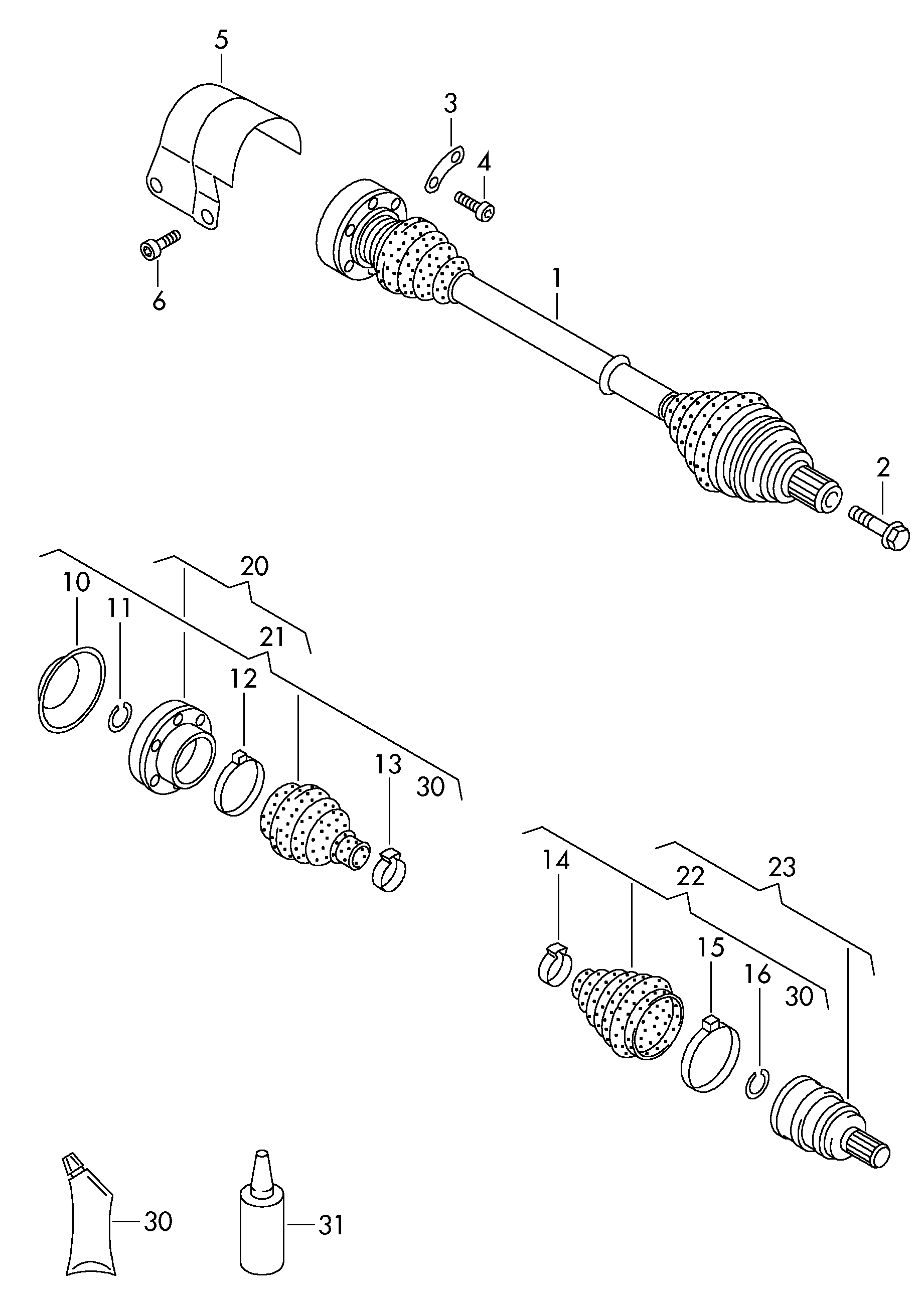

Scheme Drive shaft for 6 speed manual gearbox front frt.-wh.dr.+, CBBB, CFGB, CLLA Volkswagen Passat CC Coupe 2009-2012 EUR
