Drive shaft for 6 speed manual gearbox front frt.-wh.dr.+, CAWB, CCTA, CBFA, CCZA, CCZB Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0407271EE	Drive shaft with constant velocity joints	999	Next
1	1K0407271NP	Drive shaft with constant velocity joints, before 31.01.2010	999	Next
1	1K0407451TX	Drive shaft with constant velocity joints, before 31.01.2010	999	Next
1	3C0407271AH	Drive shaft with constant velocity joints, D 01.02.2010 and after	999	Next
1	3C0407451FX	Drive shaft with constant velocity joints, D 01.02.2010 and after	999	Next
1	1K0407272JB	Drive shaft with constant velocity joints, before 31.01.2010	999	Next
1	1K0407454GX	Drive shaft with constant velocity joints, before 31.01.2010	999	Next
1	1K0407272RS	Drive shaft with constant velocity joints, D 01.02.2010 and after	999	Next
1	3C8407272	Drive shaft with constant velocity joints, D 01.02.2010 and after	999	Next
1	1K0407764GX	Drive shaft with constant velocity joints, D 01.02.2010 and after	999	Next
2	WHT002795	Dodecagonal head bolt M16X1,5X70	999	Next
2	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
3	1K0407357D	Spacer	999	Next
4	N90991102	Socket head bolt with inner multipoint head M10X52	999	Next
5	1K0407721G	Heat shield plate	999	Next
6	N10170512	Hexagon bolt M10X20	999	Next
10	1J0407115H	End cap	999	Next
11	1K0407298A	Securing ring 28X1,5	999	Next
12	N90947301	Clamp 75X10X1	999	Next
13	N10609101	Clamp 34,7X10X0,8	999	Next
14	N10609101	Clamp 34,7X10X0,8	999	Next
15	N90630701	Clamp, before 31.01.2010 102,5X10X1	999	Next
15	N91023501	Clamp, D 01.02.2010 and after 104,5X10X1	999	Next
16	1J0407287	Belleville spring, before 31.01.2010 102,5X10X1	999	Next
17	1J0407295	Thrust ring, before 31.01.2010 29,7X12,5	999	Next
18	1J0407297	Securing ring, before 31.01.2010	999	Next
18	N91092301	Securing ring, D 01.02.2010 and after 29,5	999	Next
20	1K0498103A	Constant velocity joint with boot, attachment parts and grease	999	Next
20	1K0498103AX	Constant velocity joint with boot, attachment parts and grease	999	Next
21	1K0498201A	Joint protective boot with assembly items and grease	999	Next
22	1K0498203A	Joint protective boot with assembly items and grease, before 31.01.2010	999	Next
22	1K0498203D	Joint protective boot with assembly items and grease, D 01.02.2010 and after	999	Next
23	1K0498099B	Outer joint with assembly parts, before 31.01.2010	999	Next
23	1K0498099BX	Outer joint with assembly parts, before 31.01.2010	999	Next
23	3C0498099	Outer joint with assembly parts, D 01.02.2010 and after	999	Next
23	3C0498099X	Outer joint with assembly parts, D 01.02.2010 and after	999	Next
30	G052738A4	Grease for universal joint 140G	999	Next
30	G052133A3	High temperature grease 120G	999	Next
31	D454300A2	Sealant 125G	999	Next

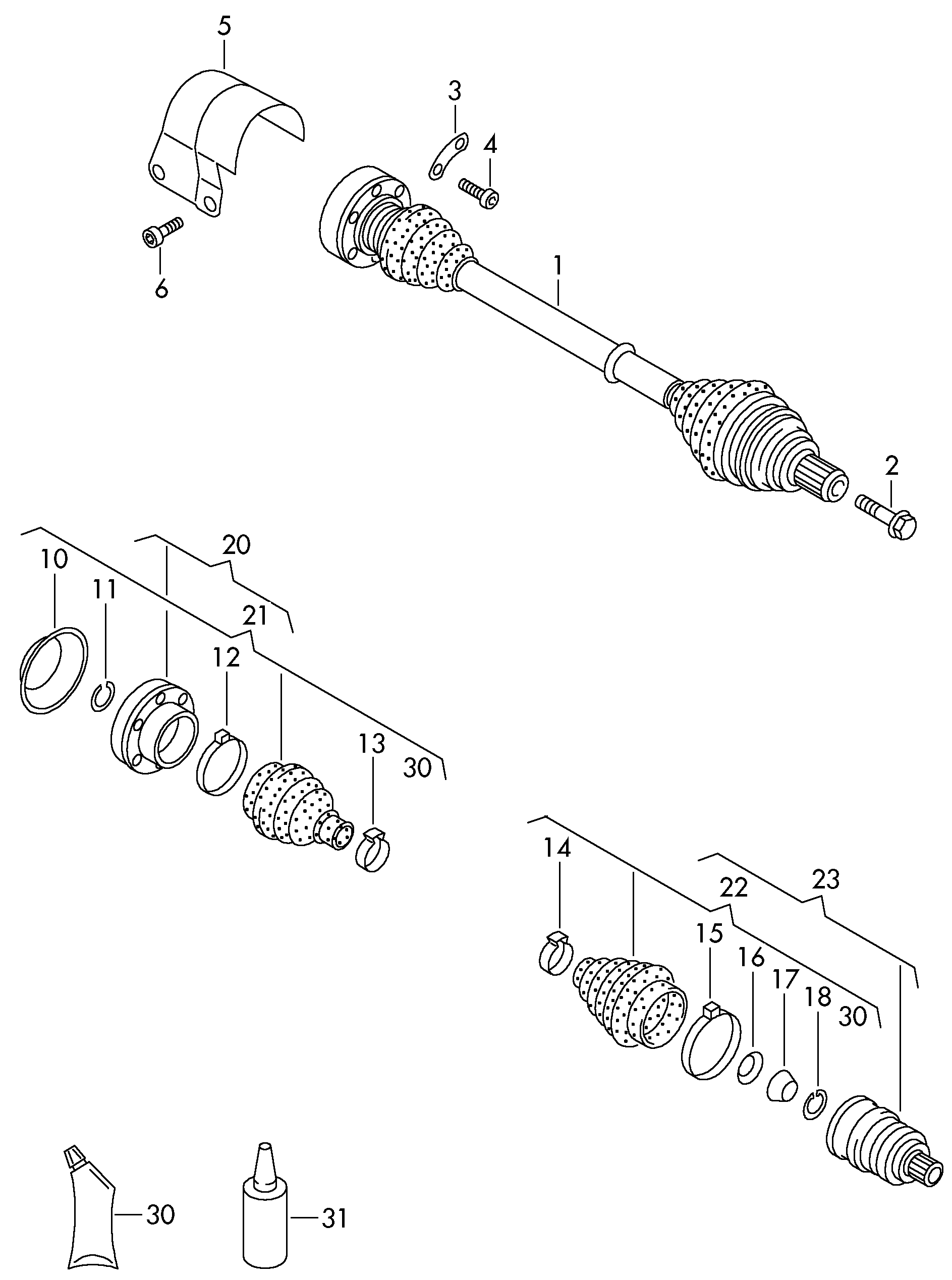

Scheme Drive shaft for 6 speed manual gearbox front frt.-wh.dr.+, CAWB, CCTA, CBFA, CCZA, CCZB Volkswagen Passat CC Coupe 2009-2012 EUR
