Drive shaft, for 6 speed manual gearbox front frt.-wh.dr.+, CAVA, CAVD, CAXA, CTHD, CZDA, CZDB Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0407763D	Drive shaft with constant velocity joints	999	Next
1	5N0407763DX	Drive shaft with constant velocity joints	999	Next
1	5N0407766B	Drive shaft with constant velocity joint and balance weight on inner side	999	Next
1	5N0407766BX	Drive shaft with constant velocity joint and balance weight on inner side	999	Next
1	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
1	1K0407357D	Spacer	999	Next
1	N 90991102	Socket head bolt with inner multipoint head M10X52	999	Next
1	1J0407115H	End cap	999	Next
1	1K0407298A	Securing ring 28X1,5	999	Next
1	N 90947301	Clamp 75X10X1	999	Next
1	N 10609101	Clamp 34,7X10X0,8	999	Next
1	N 10609101	Clamp 34,7X10X0,8	999	Next
1	N 91023501	Clamp 104,5X10X1	999	Next
1	N 91092301	Securing ring 29,5	999	Next
1	1K0498103A	Constant velocity joint with boot, attachment parts and grease	999	Next
1	1K0498103AX	Constant velocity joint with boot, attachment parts and grease	999	Next
1	1K0498201A	Joint protective boot with assembly items and grease	999	Next
1	1K0498203D	Joint protective boot with assembly items and grease	999	Next
1	5N0498099A	Outer joint with assembly parts	999	Next
1	5N0498099AX	Outer joint with assembly parts	999	Next
1	G 052181A3	High temperature grease 120G	999	Next
1	D 454300A2	Sealant 125G	999	Next
1	D 185400A3	Locking fluid	999	Next

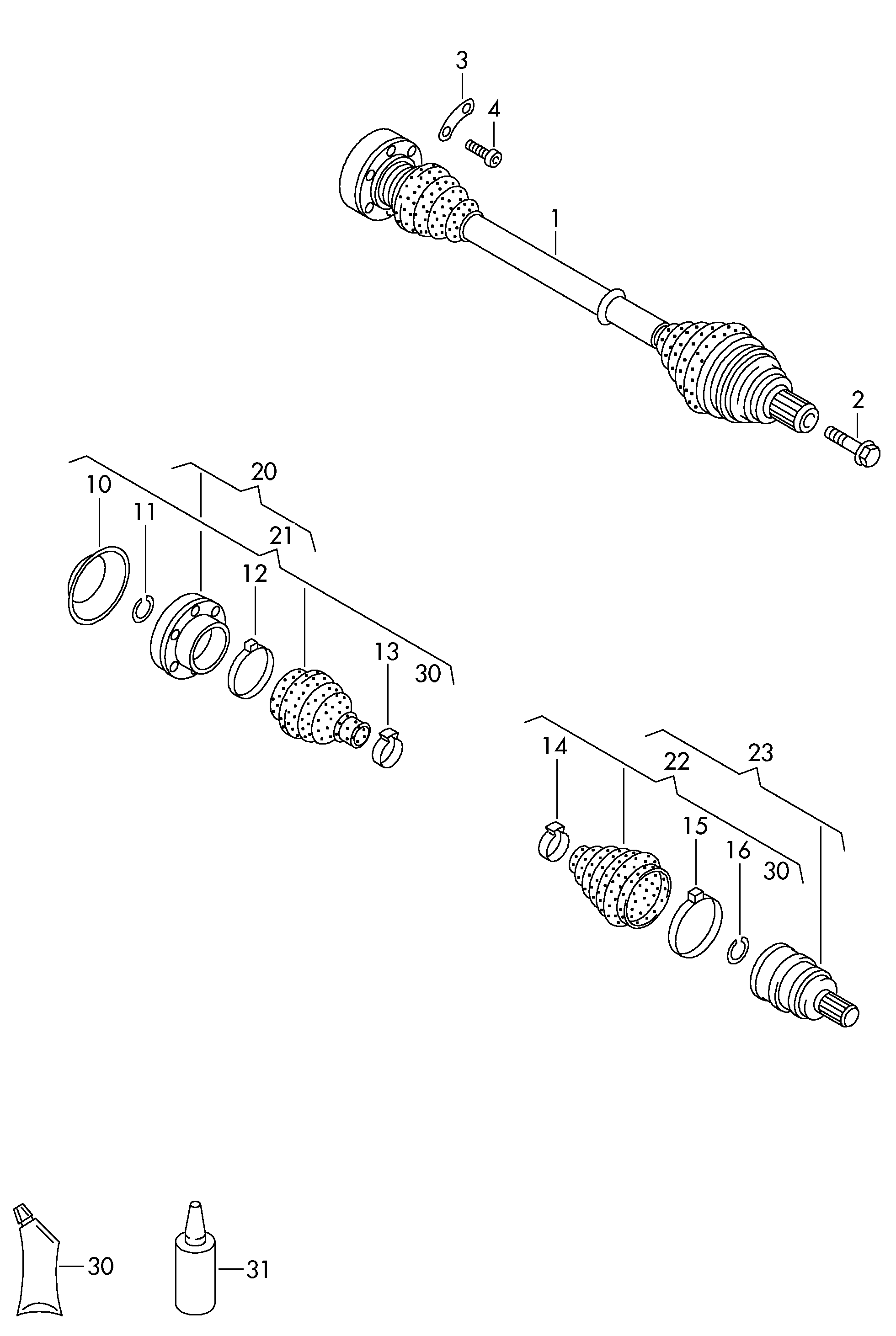

Scheme Drive shaft, for 6 speed manual gearbox front frt.-wh.dr.+, CAVA, CAVD, CAXA, CTHD, CZDA, CZDB Volkswagen Tiguan 2010-2017 EUR
