Drive shaft, for 6 speed manual gearbox front 4motion+, CCZB, CCZD Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0971327	Adapter cable loom control unit for reversing camera system radio	999	Next
1	5N0407761S	Drive shaft with constant velocity joints	999	Next
1	5N0407761SX	Drive shaft with constant velocity joints	999	Next
1	7L6972726	Flat contact housing with cap locking mechanism radio radio navigation unit	999	Next
1	5N0407764H	Drive shaft with constant velocity joints	999	Next
1	4E0972144	Flat contact housing with contact locking mechanism control unit for reversing camera system	999	Next
1	5N0407764HX	Drive shaft with constant velocity joints	999	Next
1	4M0972144	Flat contact housing with contact locking mechanism control unit for reversing camera system	999	Next
1		Cable set for tailgate	999	Next
1	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
1	5N0971327	Adapter cable loom control unit for reversing camera system radio	999	Next
1	5N0407284B	Protective cap	999	Next
1	5M1970161AC	Aerial cable reversing camera 5467 MM	999	Next
1	5N0407284D	Protective cap	999	Next
1	7L6972726	Flat contact housing with cap locking mechanism radio radio navigation unit	999	Next
1	5N0407298	Securing ring 31,9X1,8	999	Next
1	N 90947301	Clamp 75X10X1	999	Next
1	4E0972144	Flat contact housing with contact locking mechanism control unit for reversing camera system	999	Next
1	N 10609101	Clamp 34,7X10X0,8	999	Next
1	4M0972144	Flat contact housing with contact locking mechanism control unit for reversing camera system	999	Next
1	N 10609101	Clamp 34,7X10X0,8	999	Next
1	N 90630701	Clamp 102,5X10X1	999	Next
1	1J0407287	Belleville spring	999	Next
1	1J0407295	Thrust ring 29,7X12,5	999	Next
1	1J0407297	Securing ring	999	Next
1	5N0498103	Constant velocity joint with boot, attachment parts and grease	999	Next
1	5N0498103 X	Constant velocity joint with boot, attachment parts and grease	999	Next
1	5N0498201	Joint protective boot with assembly items and grease	999	Next
1	1K0498203A	Joint protective boot with assembly items and grease	999	Next
1	1K0498099B	Outer joint with assembly parts	999	Next
1	1K0498099J	Outer joint with assembly parts	999	Next
1	1K0498099BX	Outer joint with assembly parts	999	Next
1	G 052181A3	High temperature grease 120G	999	Next
1	G 060735A2	Universal grease stub shaft 50G	999	Next
1	D 185400A3	Locking fluid	999	Next

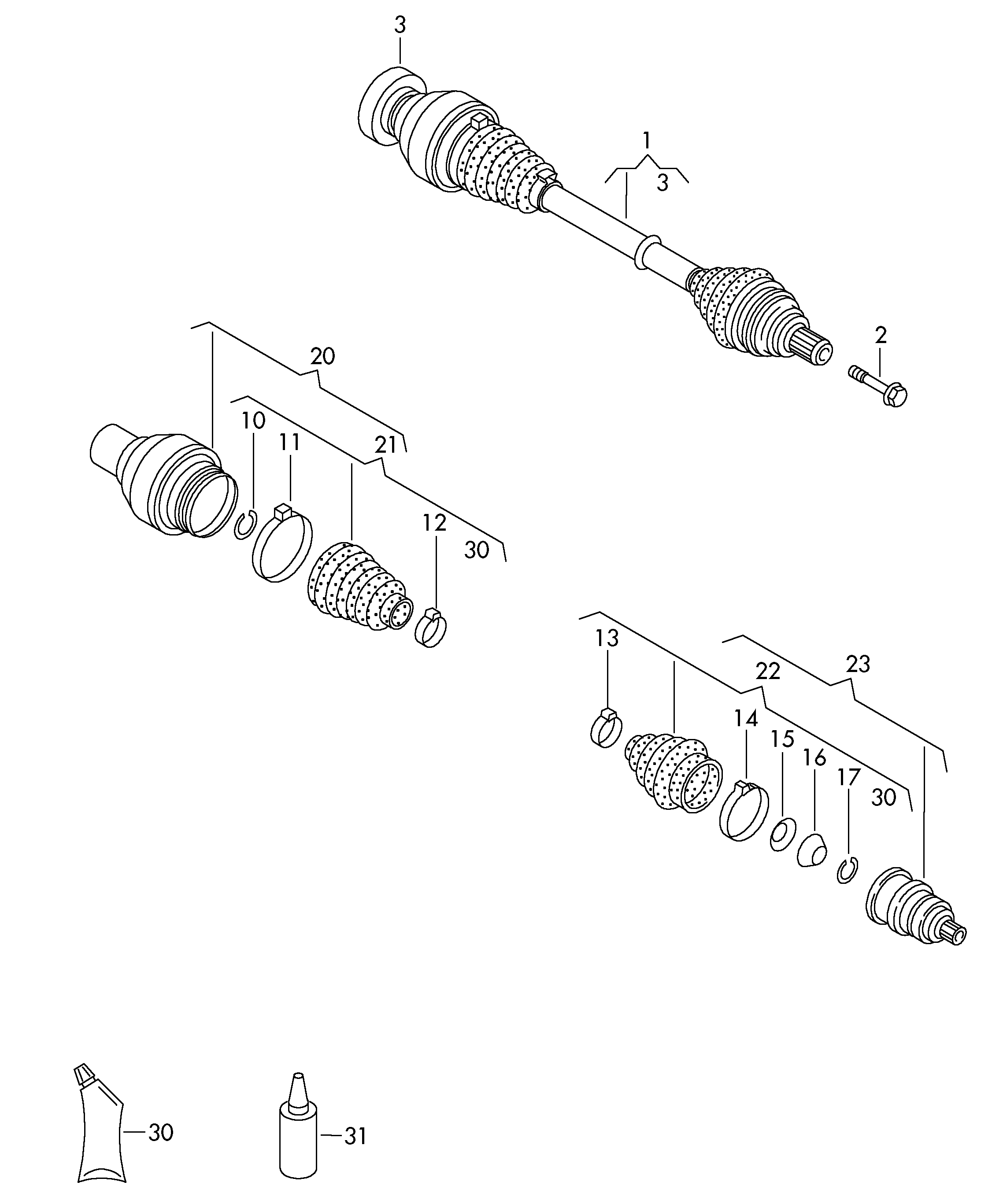

Scheme Drive shaft, for 6 speed manual gearbox front 4motion+, CCZB, CCZD Volkswagen Tiguan 2010-2017 EUR
