Drive shaft, for 6 speed manual gearbox, for vehicles without, start-stop operation front frt.-wh.dr.+, CFFB+, PR-7L3 Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0407761Q	Drive shaft with constant velocity joints	999	Next
1	5N0407761QX	Drive shaft with constant velocity joints	999	Next
1	5N0407764C	Drive shaft with constant velocity joint and balance weight on inner side	999	Next
1	5N0407764CX	Drive shaft with constant velocity joint and balance weight on inner side	999	Next
1	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
1	5N0407284B	Protective cap	999	Next
1	5N0407284C	Protective cap	999	Next
1	1K0407721G	Heat shield plate	999	Next
1	N 10170512	Hexagon bolt M10X20	999	Next
1	5N0407298	Securing ring 31,9X1,8	999	Next
1	N 90947301	Clamp 75X10X1	999	Next
1	N 10609101	Clamp 34,7X10X0,8	999	Next
1	N 10609101	Clamp 34,7X10X0,8	999	Next
1	N 91023501	Clamp 104,5X10X1	999	Next
1	N 91092301	Securing ring 29,5	999	Next
1	5N0498103	Constant velocity joint with boot, attachment parts and grease	999	Next
1	5N0498103 X	Constant velocity joint with boot, attachment parts and grease	999	Next
1	5N0498201	Joint protective boot with assembly items and grease	999	Next
1	1K0498203D	Joint protective boot with assembly items and grease	999	Next
1	5N0498099	Outer joint with assembly parts	999	Next
1	5N0498099 X	Outer joint with assembly parts	999	Next
1	G 052181A3	High temperature grease 120G	999	Next
1	G 060735A2	Universal grease stub shaft 50G	999	Next
1	D 185400A3	Locking fluid	999	Next

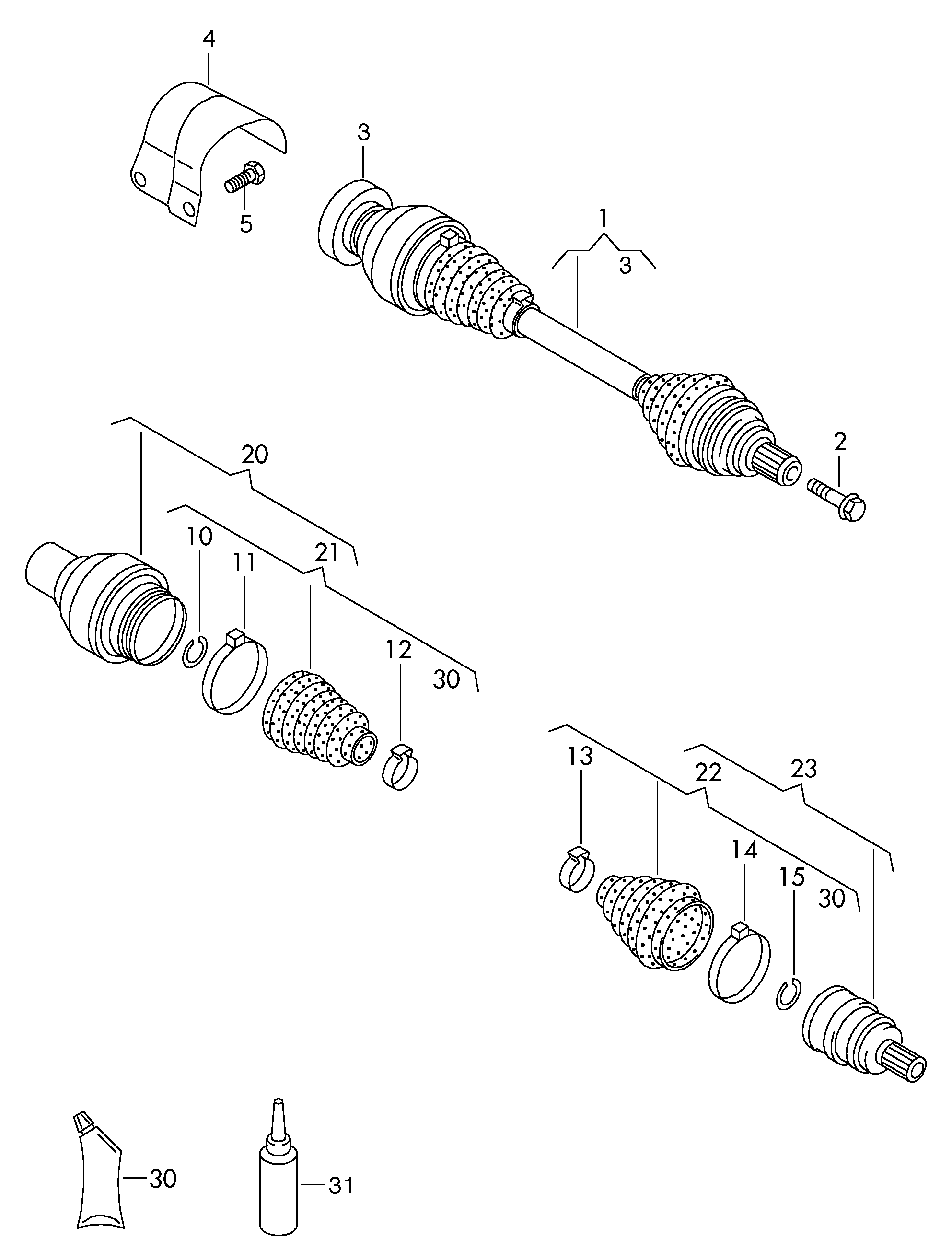

Scheme Drive shaft, for 6 speed manual gearbox, for vehicles without, start-stop operation front frt.-wh.dr.+, CFFB+, PR-7L3 Volkswagen Tiguan 2010-2017 EUR
