Drive shaft, for 6 speed manual gearbox 4motion+, CUVC Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C1971086B	Adapter cable loom navigation unit	999	Next
1	5N0407763G	Drive shaft with constant velocity joints	999	Next
1	3C1971086	Adapter cable loom navigation unit	999	Next
1	5N0407763GX	Drive shaft with constant velocity joints	999	Next
1	1K0407272JF	Drive shaft with constant velocity joints	999	Next
1	3B7035447A	Flat contact housing with contact locking mechanism radio matching contact housing: 3B7 035 444	999	Next
1	3W0971838	Cable ties toothed quadrant hole/sheet metal thickness: 4,6X193MM 6,5/0,3-3,0MM	999	Next
1	1K0407454MX	Drive shaft with constant velocity joints	999	Next
1	5C5035320	Aerial cable chip card reader for road toll system TEIL MUSS IM KATALOG BLEIBEN! IST ABER AKO 1700MM	999	Next
1	WHT005437	Dodecagonal head bolt M16X1,5X70	999	Next
1	5C5035320A	Single wire for vehicles with ipod interface TEIL MUSS IM KATALOG BLEIBEN! IST ABER AKO 1700MM USB	999	Next
1	1K0407357D	Spacer	999	Next
1	N 90991102	Socket head bolt with inner multipoint head M10X52	999	Next
1	5Q0407720	Heat shield plate	999	Next
1	1K0407407	Hexagon socket head pipe nut M8X20X15	999	Next
1	1J0407115H	End cap	999	Next
1	1K0407298A	Securing ring 28X1,5	999	Next
1	N 90947301	Clamp 75X10X1	999	Next
1	N 10609101	Clamp 34,7X10X0,8	999	Next
1	N 10609101	Clamp 34,7X10X0,8	999	Next
1	N 90630701	Clamp 102,5X10X1	999	Next
1	1J0407287	Belleville spring	999	Next
1	1J0407295	Thrust ring 29,7X12,5	999	Next
1	1J0407297	Securing ring	999	Next
1	1K0498103A	Constant velocity joint with boot, attachment parts and grease	999	Next
1	1K0498103AX	Constant velocity joint with boot, attachment parts and grease	999	Next
1	1K0498201A	Joint protective boot with assembly items and grease	999	Next
1	1K0498203F	Joint protective boot with assembly items and grease	999	Next
1	1K0498099K	Outer joint with assembly parts	999	Next
1	1K0498099KX	Outer joint with assembly parts	999	Next
1	G 052133A3	High temperature grease 140G	999	Next
1	G 052133A3	High temperature grease 120G	999	Next
1	D 454300A2	Sealant 125G	999	Next
1	D 185400A3	Locking fluid	999	Next

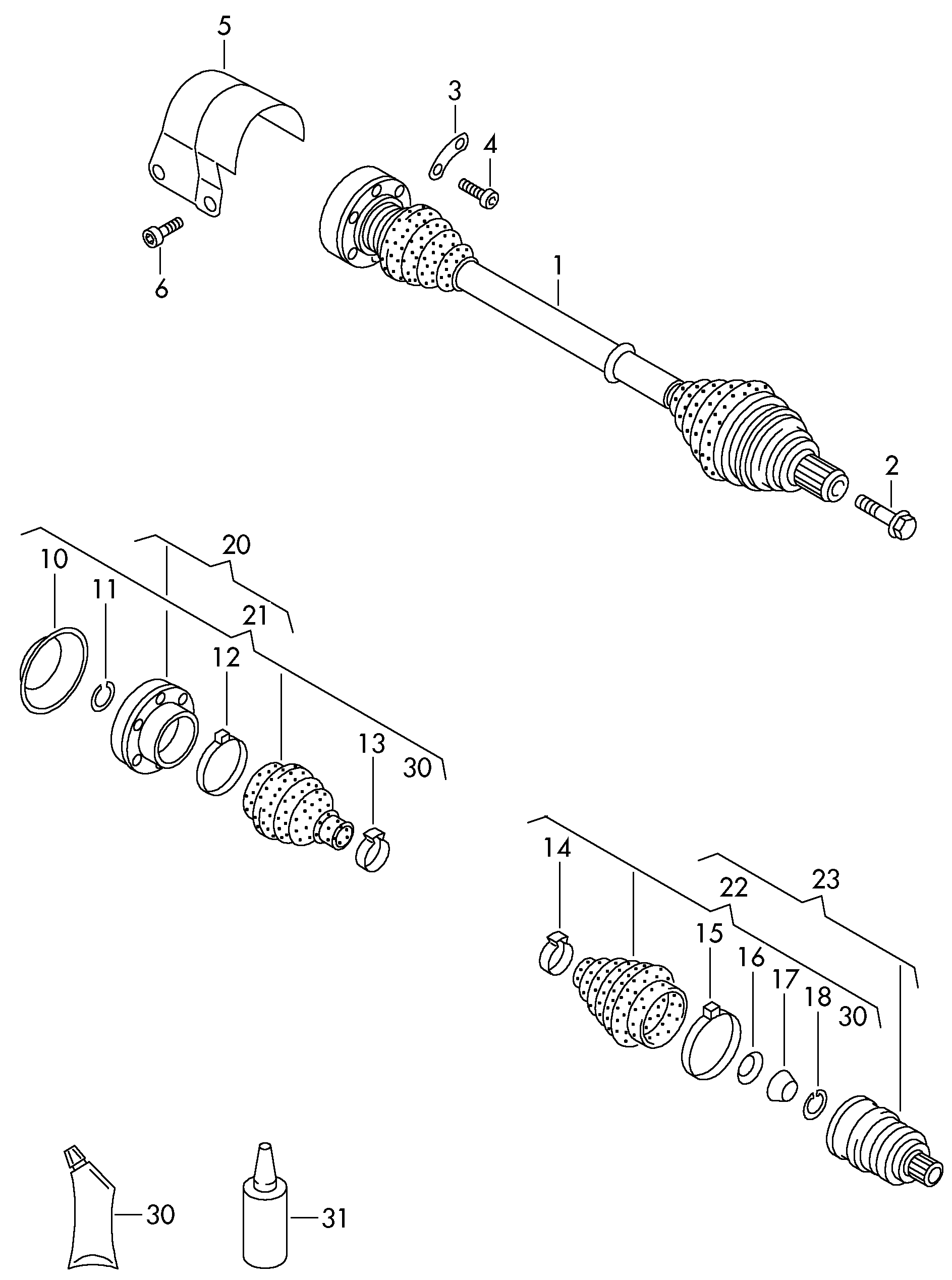

Scheme Drive shaft, for 6 speed manual gearbox 4motion+, CUVC Volkswagen Tiguan 2010-2017 EUR
