Doors, door hinge, door seal rear Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C8833055D	Door	999	Next
1	3C8833055A	Door	999	Next
1	3C8833056D	Door	999	Next
1	3C8833056A	Door	999	Next
1	3C8833056B	Door	999	Next
2	3C4833401D	Door hinge	999	Next
2	3C4833402D	Door hinge	999	Next
3	N90930503	Multi-point socket head bolt with collar M8X24	999	Next
4	N91070301	Socket head bolt with inner multipoint head M10X18	999	Next
5	N90403002	Cover cap 13X14	999	Next
6	3C8833411A	Door hinge	999	Next
6	3C4833411C	Door hinge	999	Next
6	3C8833412A	Door hinge	999	Next
6	3C4833412C	Door hinge	999	Next
7	N91070301	Socket head bolt with inner multipoint head M10X18	999	Next
8	N90930503	Multi-point socket head bolt with collar M8X24	999	Next
10	N90403002	Cover cap 13X14	999	Next
14	323863950	Sound absorber (self-adhesive) 'order unit 6' 550X250X2	999	Next
15	3C8867913A	Door seal, inner	999	Next
15	3C8867913A5AP	Door seal, inner black	999	Next
16	3C8854545H	Door seal, inner, before 03.05.2009	999	Next
16	3C8854545L	Door seal, inner	999	Next
16	3C8854545H	Door seal, inner	999	Next
16	3C8854545J	Door seal, inner	999	Next
16	3C8854545A	Door seal, inner	999	Next
16	3C8854546H	Door seal, inner, before 03.05.2009	999	Next
16	3C8854546J	Door seal, inner	999	Next
16	3C8854546L	Door seal, inner	999	Next
16	3C8854546A	Door seal, inner	999	Next
18	3C8839701B	Door seal, outer	999	Next
18	3C8839701B5AP	Door seal, outer black	999	Next

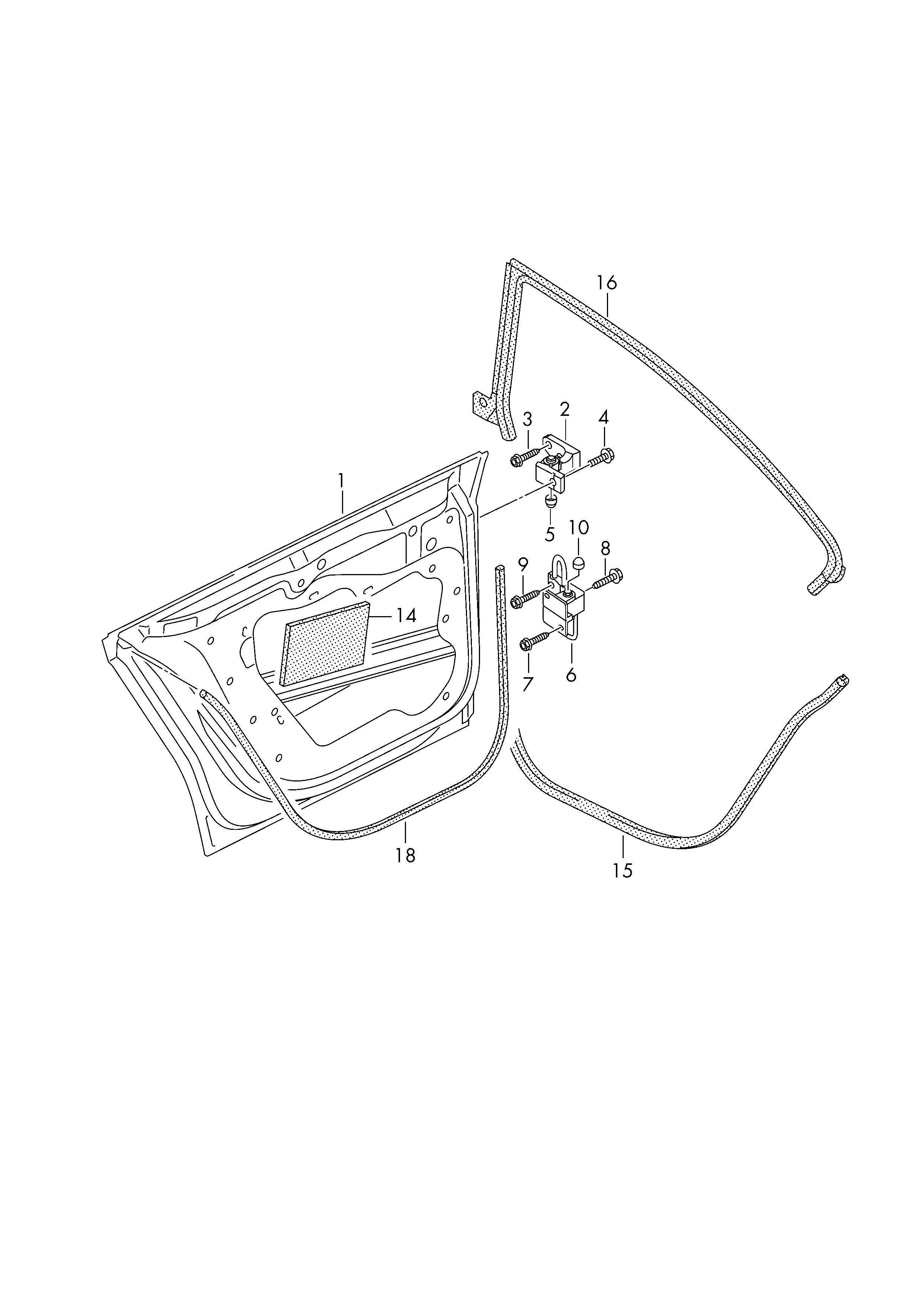

Scheme Doors, door hinge, door seal rear Volkswagen Passat CC Coupe 2009-2012 EUR
