Doors, door hinge, door seal front Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C8831055A	Door	999	Next
1	3C8831055F	Door	999	Next
1	3C8831055D	Door	999	Next
1	3C8831056F	Door	999	Next
1	3C8831056D	Door	999	Next
-	191971928	Grommet	999	Next
2	3C0831401D	Door hinge	999	Next
2	3C0831402D	Door hinge	999	Next
3	3C8831411A	Door hinge	999	Next
3	3C8831412A	Door hinge	999	Next
4	N91070301	Socket head bolt with inner multipoint head M10X18	999	Next
5	N90930503	Multi-point socket head bolt with collar M8X24	999	Next
6	N91070301	Socket head bolt with inner multipoint head M10X18	999	Next
7	N90930503	Multi-point socket head bolt with collar M8X24	999	Next
8	N90823203	Socket head bolt with inner multipoint head M8X28	999	Next
9	3C8867911A	Door seal, inner	999	Next
9	3C8867911A5AP	Door seal, inner black	999	Next
10	3C8837701B	Door seal, outer	999	Next
10	3C8837701B5AP	Door seal, outer black	999	Next
12	N90403002	Cover cap 13X14	999	Next
13	N90403002	Cover cap 13X14	999	Next
14	323863950	Sound absorber (self-adhesive) 'order unit 6' 550X250X2	999	Next
15	3C8854543H	Door seal, inner, before 03.05.2009	999	Next
15	3C8854543J	Door seal, inner	999	Next
15	3C8854544H	Door seal, inner, before 03.05.2009	999	Next
15	3C8854544J	Door seal, inner	999	Next

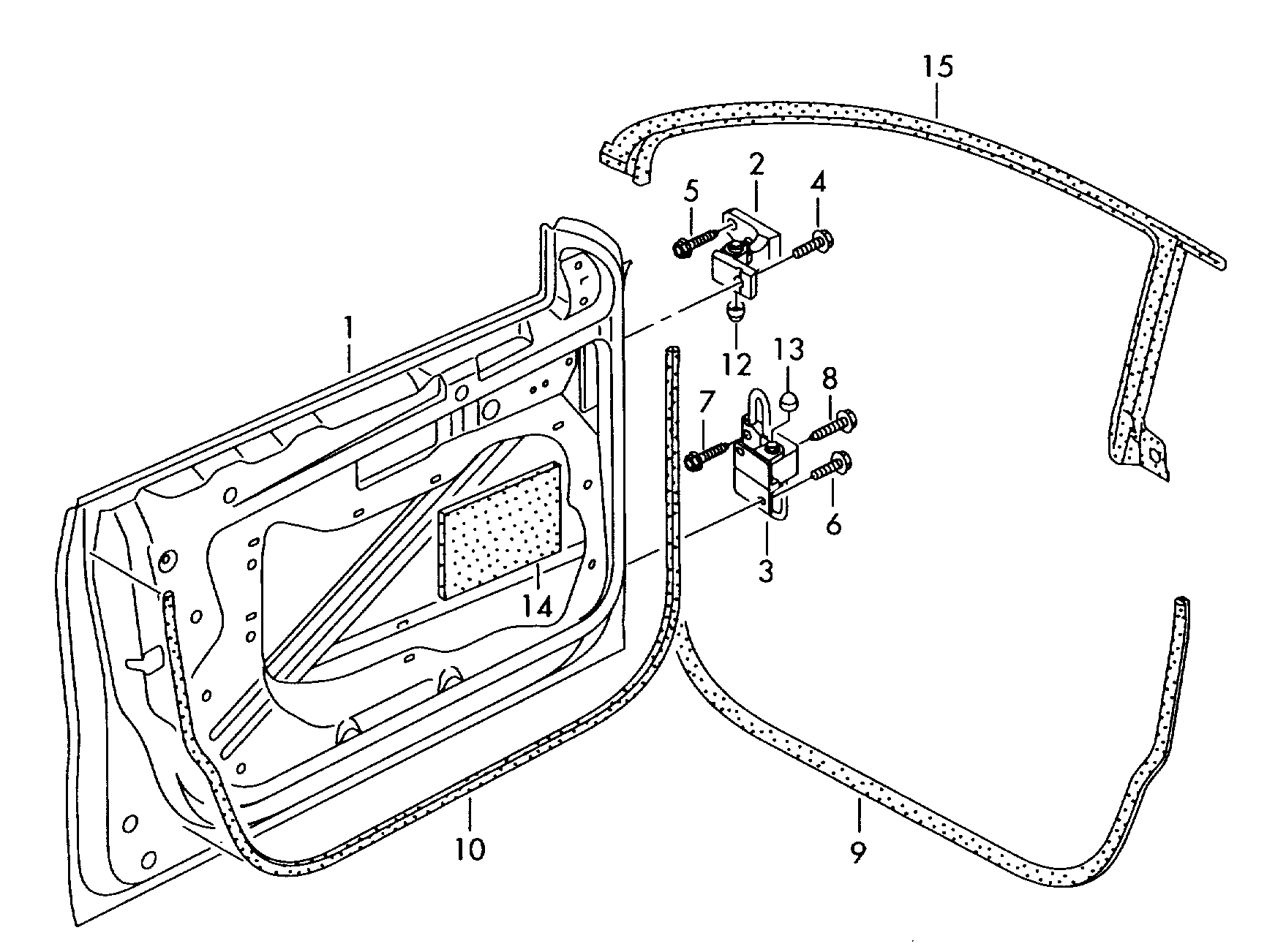

Scheme Doors, door hinge, door seal front Volkswagen Passat CC Coupe 2009-2012 EUR
