Doors, door hinge, door catch, door seal front Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5M0831105E	Door shell	999	Next
1	5M0831106E	Door shell	999	Next
1A	1K0898619	1 set attachment parts doors	999	Next
1A	D438520A2	Repair set for door contents of package: 150	999	Next
2	5M0831299D	Retaining rail	999	Next
2	5M0831300D	Retaining rail	999	Next
3	5M0831307D	Retaining rail	999	Next
3	5M0831308D	Retaining rail	999	Next
4	WHT002109A	Oval hexagon socket head bolt M6X10	999	Next
5	5M0831301P	Door inner part	999	Next
5	5M0831302P	Door inner part	999	Next
7	WHT000329	Hexagon socket head bolt (combi) M6X14,5	999	Next
8	1K0831281B	Distance plate	999	Next
8	1K0831282B	Distance plate	999	Next
9	1K0831287B	Distance plate	999	Next
9	1K0831288B	Distance plate	999	Next
10	1K0831401N	Door hinge	999	Next
10	1K0831402N	Door hinge	999	Next
12	N90930503	Multi-point socket head bolt with collar M8X24	999	Next
13	N91070301	Socket head bolt with inner multipoint head M10X18	999	Next
13A	N90968501	Cover cap 13X8,5	999	Next
14	1K0831411Q	Door hinge	999	Next
14	1K0831412Q	Door hinge	999	Next
15	N90930503	Multi-point socket head bolt with collar M8X24	999	Next
16	N91070301	Socket head bolt with inner multipoint head M10X18	999	Next
16A	N90968501	Cover cap 13X8,5	999	Next
17	5M0831505B	Side reinforcement use if required: AKL 450 005 05	999	Next
17	5M0831506B	Side reinforcement use if required: AKL 450 005 05	999	Next
-	AKL45000505	Butyl adhesive/sealing strip 5X5000	999	Next
18	N90348411	Hex. nut with washer M8	999	Next
19	N91146601	Socket head bolt with inner multipoint head (kombi) M8X16	999	Next
22	1K3831469A	Grommet	999	Next
23	DH009100A2	1k window adhesive 180ML	999	Next
24	5M0837381C	End trim	999	Next
24	5M0837381C9B9	End trim satin black	999	Next
24	5M0837382C	End trim	999	Next
24	5M0837382C9B9	End trim satin black	999	Next
25	1K6837200B	Clip	999	Next
27	5M0837701B	Door seal, outer	999	Next
27	5M0837701B9B9	Door seal, outer satin black	999	Next
27	5M0837701D	Door seal, outer	999	Next
27	5M0837701D9B9	Door seal, outer satin black	999	Next
27	5M0837702B	Door seal, outer	999	Next
27	5M0837702B9B9	Door seal, outer satin black	999	Next
27	5M0837702D	Door seal, outer	999	Next
27	5M0837702D9B9	Door seal, outer satin black	999	Next
28	1K0837299	Connecting piece	999	Next
29	5M0867911E	Door seal, inner	999	Next
29	5M0867911E9B9	Door seal, inner satin black	999	Next
29	5M0867911G	Door seal, inner	999	Next
29	5M0867911G9B9	Door seal, inner satin black	999	Next
29	5M0867912A	Door seal, inner	999	Next
29	5M0867912A9B9	Door seal, inner satin black	999	Next
32	8Z0837111	Bungs 16	999	Next
	8Z0837111B41	Bungs 16 satin black	999	Next
32	8Z0837111	Bungs 16	999	Next
33	D378500A2	Sound absorber, laminated alu. (self-adhesive)'order unit 6' modify in workshop 500X250X1,6	999	Next
33	DH009100	1k window adhesive 300ML	999	Next
33	DH009100A2	1k window adhesive 180ML	999	Next
33	323863950	Sound absorber (self-adhesive) 'order unit 6' 550X250X2	999	Next
34	AKL43301402	Protective foil for door	999	Next
35		Bellows	999	Next
38	7L6868307	Spreader rivet 5,8X10,8	999	Next
40	5M0868759	Damping a-pillar	999	Next
40	5M0868760	Damping a-pillar	999	Next
41	5M0868759A	Damping b-pillar	999	Next
41	5M0868760A	Damping b-pillar	999	Next

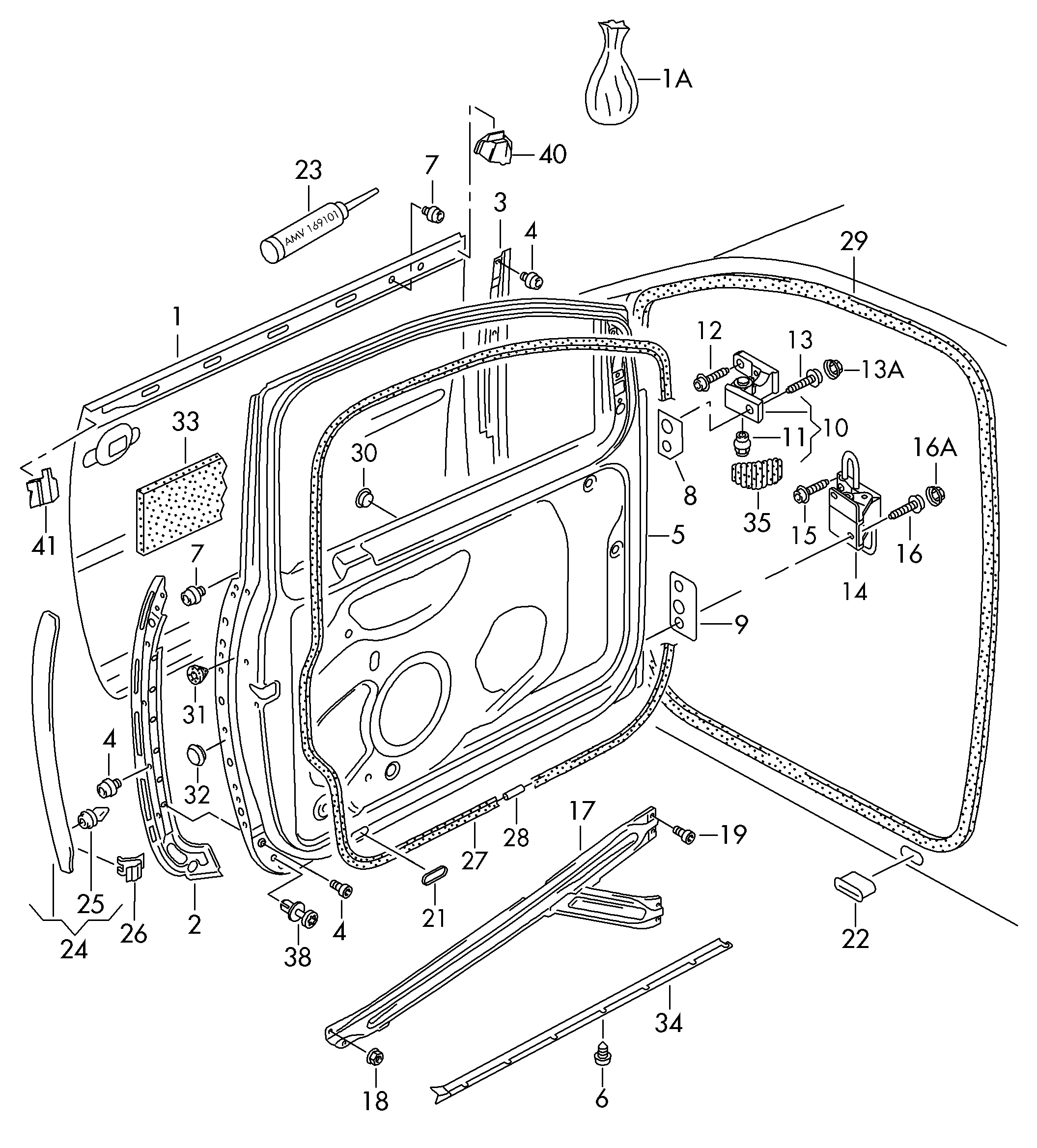

Scheme Doors, door hinge, door catch, door seal front Volkswagen Golf Plus 2012-2014 EUR
