Door lock, inner actuator, door handle, exterior rear Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0839015D	Door lock	999	Next
1	5N0839015G	Door lock	999	Next
1	5N0839016D	Door lock	999	Next
1	5N0839015R	Door lock	999	Next
1	5N0839016G	Door lock	999	Next
1	5N0839016R	Door lock	999	Next
1	5N0839015E	Door lock	999	Next
1	5N0839015H	Door lock	999	Next
1	5N0839016E	Door lock	999	Next
1	5N0839015S	Door lock	999	Next
1	5N0839016H	Door lock	999	Next
1	5N0839015F	Door lock	999	Next
1	5N0839016S	Door lock	999	Next
1	5N0839015J	Door lock	999	Next
1	5N0839015T	Door lock	999	Next
1	5N0839016F	Door lock	999	Next
1	5N0839016J	Door lock	999	Next
1	5N0839016T	Door lock	999	Next
1	5N0839767C	Retaining bracket door lock	999	Next
1	5N0839768C	Retaining bracket door lock	999	Next
1	5K0837349	Cover cap door lock	999	Next
1	5K0837349A	Cover cap door lock	999	Next
1	5K0837349B	Cover cap door lock	999	Next
1	5K0837350	Cover cap door lock	999	Next
1	5K0837350B	Cover cap door lock	999	Next
1	5K0837350A	Cover cap door lock	999	Next
1	3C0837279A	Underlay striker	999	Next
1	5K0837033A	Striker	999	Next
1	N 91017401	Countersunk multi-point socket head bolt M8X22	999	Next
1	861877399	Grommet 9	999	Next
1	WHT005504	Fillister head bolt (combi.) M8X16	999	Next
1	1Y0837111	Bungs	999	Next
1	3C0837111	Cover cap	999	Next
1	5N0839197	Clamping piece	999	Next
1	5N0839198	Clamping piece	999	Next
1	N 90918701	Hexagon socket head panel bolt 4X12	999	Next
1	5N0839113Q	Inner actuator	999	Next
1	5N0839113Q UAQ	Inner actuator alu/titanium black	999	Next
1	5N0839114Q	Inner actuator	999	Next
1	5N0839114Q UAQ	Inner actuator alu/titanium black	999	Next
1	5N0839113AE	Inner actuator with one loudspeaker	999	Next
1	5N0839113AEUAQ	Inner actuator with one loudspeaker alu/titanium black	999	Next
1	5N0839114AE	Inner actuator with one loudspeaker	999	Next
1	5N0839114AEUAQ	Inner actuator with one loudspeaker alu/titanium black	999	Next
1	5N0839113AC	Inner actuator with one loudspeaker	999	Next
1	5N0839113ACUAQ	Inner actuator with one loudspeaker alu/titanium black	999	Next
1	5N0839114AC	Inner actuator with one loudspeaker	999	Next
1	5N0839114ACUAQ	Inner actuator with one loudspeaker alu/titanium black	999	Next
1	5N0839113AD	Inner actuator with one loudspeaker	999	Next
1	5N0839113ADUAQ	Inner actuator with one loudspeaker alu/titanium black	999	Next
1	5N0839114AD	Inner actuator with one loudspeaker	999	Next
1	5N0839114ADUAQ	Inner actuator with one loudspeaker alu/titanium black	999	Next
1	5N0839113AB	Inner actuator with one loudspeaker	999	Next
1	5N0839113ABUAQ	Inner actuator with one loudspeaker alu/titanium black	999	Next
1	5N0839114AB	Inner actuator with one loudspeaker	999	Next
1	5N0839114ABUAQ	Inner actuator with one loudspeaker alu/titanium black	999	Next
1	5N0839113AF	Inner actuator with one loudspeaker	999	Next
1	5N0839113AFUAQ	Inner actuator with one loudspeaker alu/titanium black	999	Next
1	5N0839114AF	Inner actuator with one loudspeaker	999	Next
1	5N0839114AFUAQ	Inner actuator with one loudspeaker alu/titanium black	999	Next
1	N 90986802	Hexagon socket head panel bolt 4,2X13	999	Next
1	5N0839085D	Bowden cable	999	Next
1	5N0839085E	Bowden cable	999	Next
1		Bellows no replacement part included in position: 17	999	Next
1	5N0839885H	Mounting bar	999	Next
1	N 10415903	Oval hexagon socket head bolt 4X12	999	Next
1		Grommet not for this model	999	Next
1	5N0837017C	Bowden cable	999	Next
1	5N0837017D	Bowden cable	999	Next
1	5N0837017E	Bowden cable	999	Next
1	5N0837205M	Door handle, exterior	999	Next
1	5N0837205M GRU	Door handle, exterior primed	999	Next
1	5N0837211D	Underlay	999	Next
1	5N0837211D 9B9	Underlay satin black	999	Next
1	5N0837209	Underlay	999	Next
1	5N0837209 9B9	Underlay satin black	999	Next
1	5N0839167B	Housing	999	Next
1	5N0839167B GRU	Housing primed	999	Next
1	G 052778A2	Lock cylinder grease spray 50ML	999	Next

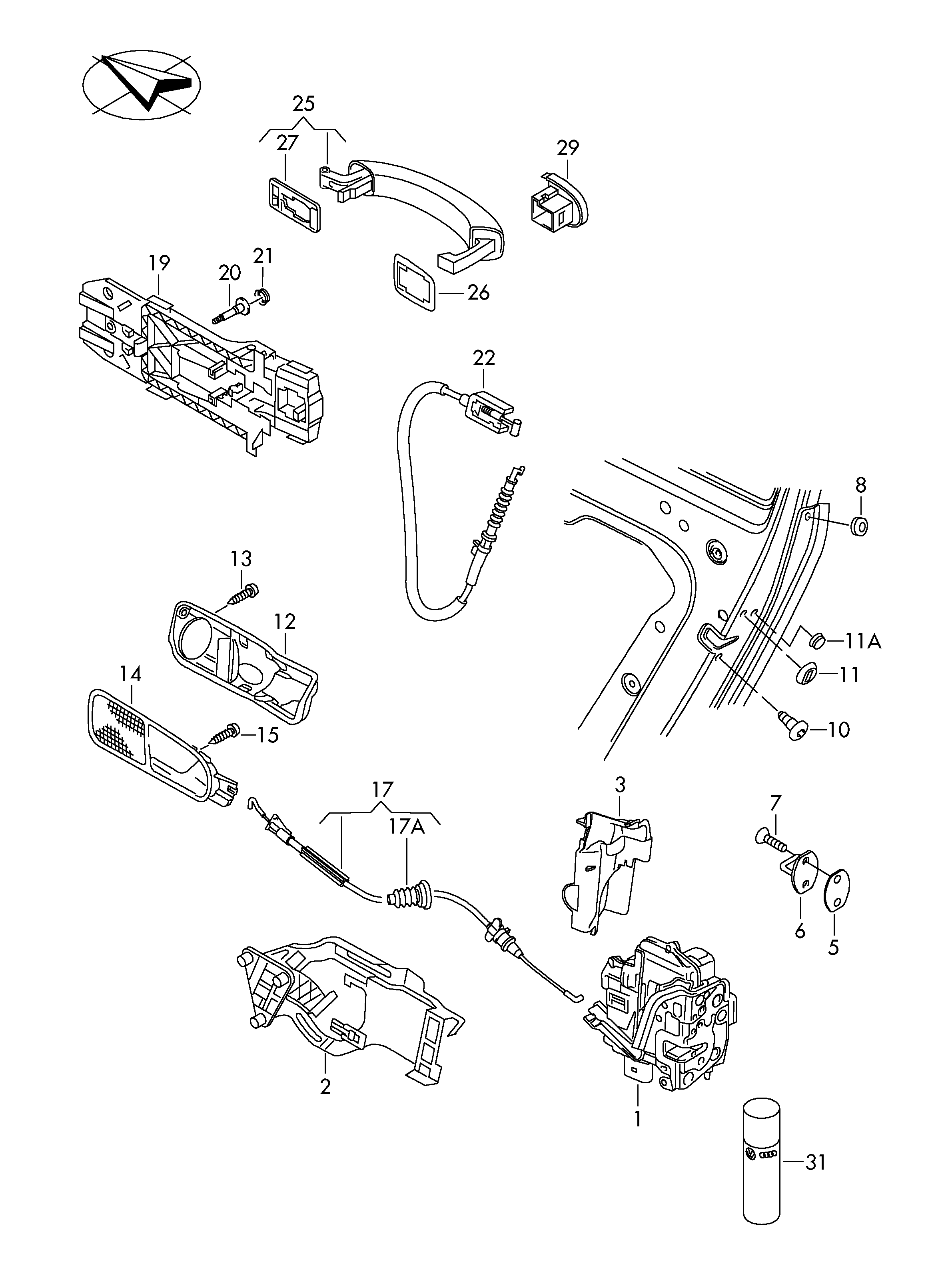

Scheme Door lock, inner actuator, door handle, exterior rear Volkswagen Tiguan 2010-2017 EUR
